Atco Royale 30 IC - F016310642
Atco Royale 30 IC - F016310642 - Cutter Assembly

Atco Royale 30 IC - F016310642 - Cutter Assembly

Part No. royale_30_f016310642_cutter_assy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Atco Royale 30 IC - F016310642 - Cutter Assembly

Description

Atco Royale 30

Article number: F016310642

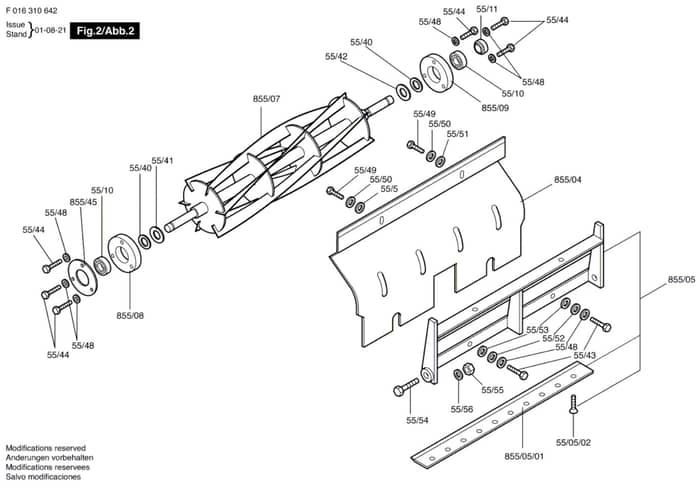

Cutter Assembly - Parts Diagram

Ref.		Img.	Part No.	Details
	5510		ALL13786 Available to backorder	Ball Bearings		£22.09 £18.41
	5511		ALL20310 Available to backorder	Spacer Ring		£12.70 £10.58
	5540		ALF016A58577 Available to backorder	Washer M 20		£2.15 £1.79
	5541		ALF016L12531 Available to backorder	Washer		£1.78 £1.48
	5542		ALF016L13787 Available to backorder	Washer What 19		£22.52 £18.77
	5543		ALF016L20252 Available to backorder	Screw 5/16 Unf x 5/8		£2.66 £2.22
	5544		ALF016L20253 Available to backorder	Screw		£1.20 £1.00
	5548		ALF016L18181 Available to backorder	Lock Washer 1/2"		£1.97 £1.64
	5552		ALF016L12918 Available to backorder	Washer		£2.71 £2.26
	5554		ALL20334 Available to backorder	Barrel Bolt		£23.51 £19.59
	85504		ALL36453 In stock	Sheet Metal		£44.75 £37.29
	85507		ALF016L20748 Available to backorder	Spindle		£579.49 £482.91
	85508		ALL20753 Available to backorder	Ring		£77.88 £64.90
	85509		ALL20751 Available to backorder	Ring		£77.88 £64.90
	85545		ALL13401 Available to backorder	Washer		£23.88 £19.90
	550502		ALF016L20363 In stock	Screw		£5.23 £4.36
	8550501		ALF016101021 In stock	Lower Knife		£148.92 £124.10

Description

Atco Royale 30

Article number: F016310642

Cutter Assembly - Parts Diagram
