Atco Royale 24 - F016310142 - Main Assembly

Description

Atco Royale 24

Article number: F016310142

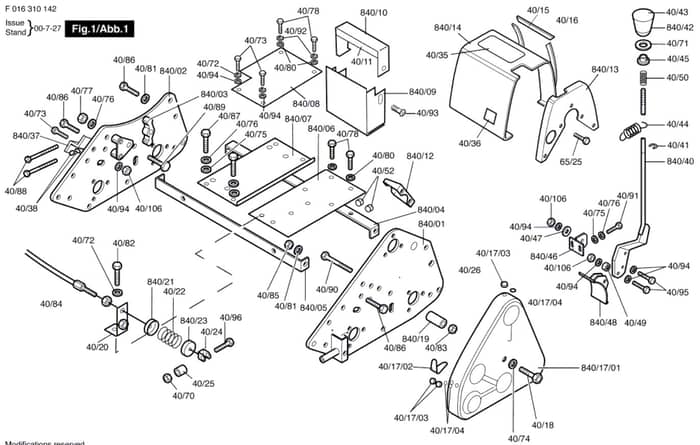

Main Assembly - Parts Diagram

	Part No.	Details
4015	ALF016103678 Available to backorder	Sealing Strips	£9.71 £8.09
4016	ALF016L32959 In stock	Sealing Strips	£2.09 £1.74
4018	ALF016L20336 In stock	Special Nut	£9.88 £8.23
4020	ALF016L66048 Available to backorder	Holding Arm	£13.04 £10.87
4022	ALF016L09482 Available to backorder	Spring	£10.70 £8.92
4024	ALF016L66085 Available to backorder	Clevis	£8.69 £7.24
4025	ALL34691 Available to backorder	Washer	£5.96 £4.97
4026	ALF016L12766 Available to backorder	Label	£15.26 £12.72
4035	ALF016L61021 Available to backorder	Sign	£21.90 £18.25
4036	ALF016L63200 Available to backorder	Adhesive Sign	£11.40 £9.50
4038	ALF016L17922 Available to backorder	Grommet	£3.73 £3.11
4041	ALF016L59709 Available to backorder	Safety Clip	£2.83 £2.36
4043	ALF016L59921 Available to backorder	Adhesive Sign	£16.74 £13.95
4044	ALF016L36810 Available to backorder	Spring	£19.08 £15.90
4045	ALL36813 Available to backorder	Sliding Block	£19.90 £16.58
4047	ALF016L36820 Available to backorder	Eccentric Disc	£17.52 £14.60
4049	ALF016L36826 Available to backorder	Washer	£7.63 £6.36
4050	ALF016L37756 Available to backorder	Spring	£3.73 £3.11
4070	ALF016L59926 Available to backorder	Lock Nut	£2.57 £2.14
4071	ALF016L09685 Available to backorder	Washer 1.213x630x028	£5.09 £4.24
4072	ALF016L11107 Available to backorder	Lock Washer	£1.20 £1.00
4073	ALF016L11301 Available to backorder	Threaded Bolt M8x20	£1.87 £1.56
4074	ALF016L12635 Available to backorder	Washer 0.38mm	£1.52 £1.27
4075	ALF016L13811 Available to backorder	Washer	£2.66 £2.22
4076	ALF016L18028 Available to backorder	Spring Washer	£1.45 £1.21
4077	ALF016L18048 Available to backorder	Nut	£2.66 £2.22
4078	ALF016L18120 In stock	Hexagon Screw M6x12	£2.04 £1.70
4080	ALF016L18129 Available to backorder	Washer 12.1x6.4x1.5	£1.54 £1.28
4081	ALF016L18182 Available to backorder	Spring Washer 1/2"	£2.80 £2.33
4082	ALF016L18408 Available to backorder	Hexagon Screw	£1.33 £1.11
4083	ALF016L18609 Available to backorder	Nut	£2.80 £2.33
4084	ALF016L18723 Available to backorder	Clamping Nut	£1.20 £1.00
4085	ALF016L20239 Available to backorder	Nut 1/2"	£2.66 £2.22
4086	ALF016L20344 Available to backorder	Screw	£3.60 £3.00
4087	ALF016L20345 Available to backorder	Screw	£1.52 £1.27
4088	ALF016L20375 Available to backorder	Adjusting Screw	£18.50 £15.42
4089	ALF016L20376 Available to backorder	Bearing Journal	£29.39 £24.49
4090	ALF016L20388 Available to backorder	Barrel Bolt	£2.38 £1.98
4091	ALF016L20402 Available to backorder	Screw	£2.38 £1.98
4092	ALF016L18185 Available to backorder	Lock Washer	£1.20 £1.00
4093	ALF016L35387 In stock	Self-Tapping Screw M6	£2.76 £2.30
4094	ALF016T40590 Available to backorder	Washer Ø8.15mm	£1.20 £1.00
4095	ALF016W25673 Available to backorder	Barrel Bolt	£1.52 £1.27
4096	ALF016W25710 Available to backorder	Hexagon Screw	£3.34 £2.78
6525	ALF016L20407 Available to backorder	Screw 5/16 Unpa x3/4	£1.20 £1.00
40106	ALF016L11218 Available to backorder	Lock Nut M8	£1.52 £1.27
84001	ALF016L61646 In stock	Side Panel	Was £253.39 £211.16 Special Price £159.65 £133.04
84002	ALF016L63224 Available to backorder	Side Panel	£210.96 £175.80
84003	ALF016L12805 In stock	Locking Lever	£17.57 £14.64
84012	ALF016100714 Available to backorder	Coupling Clip	£22.82 £19.02
84013	ALF016L65624 Available to backorder	Support Bracket	£26.50 £22.08
84021	ALF016L22615 Available to backorder	Spigot	£10.87 £9.06
84023	ALL22614 Available to backorder	Spigot	£13.69 £11.41
84046	ALF016L36817 Available to backorder	Holding Arm	£44.87 £37.39
84048	ALF016L36822 Available to backorder	Brake Shoe	£84.96 £70.80
401702	ALL20319 Available to backorder	Plate	£3.59 £2.99
401703	ALF016L16703 Available to backorder	Oil Tank	£9.53 £7.94
401704	ALF016T49100 In stock	Collar 12mm T40	£2.90 £2.42
8401701	ALF016L65685 Available to backorder	Chain Cover	£150.00 £125.00
