Atco Royale 24 - F016310142 - Drive Assembly

Name: Atco Royale 24 - F016310142 - Drive Assembly
SKU: royale_24_f016310142_drive_assy-group
Price: 0.97 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Atco Royale 24 - F016310142 - Drive Assembly

Description

Atco Royale 24

Article number: F016310142

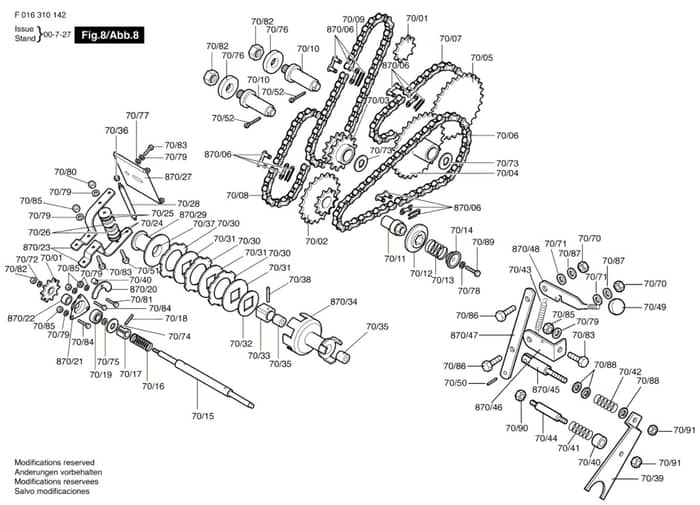

Drive Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
7001	ALF016L12433 In stock	Sprocket	£31.12 £25.93
7002	ALF016L20312 Available to backorder	Sprocket	£320.64 £267.20
7004	ALF016L20321 Available to backorder	Sprocket	£202.92 £169.10
7005	ALF016L20327 Available to backorder	Transport Rail	£111.72 £93.10
7006	ALF016L66785 Available to backorder	Chain 1/2" N-38	£106.68 £88.90
7007	ALF016L66786 Available to backorder	Chain 1/2" N-34	£61.66 £51.38
7008	ALF016L66787 In stock	Chain 1/2" N-28	£87.41 £72.84
7009	ALF016L66788 In stock	Chain 1/2" N-43	£90.98 £75.82
7010	ALL20333 Available to backorder	Shaft	£94.70 £78.92
7011	ALL20315 In stock	Cuff	£68.24 £56.87
7012	ALL20314 In stock	Driver	£43.22 £36.02
7013	ALF016L12757 In stock	Spring	£12.24 £10.20
7014	ALL20316 In stock	Washer	£2.74 £2.28
7015	ALL20297 Available to backorder	Clutch Shaft	£116.38 £96.98
7016	ALL35789 Available to backorder	Compression Spring	£13.25 £11.04
7017	ALL09422 Available to backorder	Adjustment Sleeve	£10.57 £8.81
7018	ALF016L09498 Available to backorder	Taper Pin	£6.25 £5.21
7019	ALF016L03729 Available to backorder	Ball Bearings	£68.70 £57.25
7024	ALF016L10198 Available to backorder	Washer	£2.74 £2.28
7025	ALF016L13296 In stock	Washer	£2.46 £2.05
7026	ALF016L10233 In stock	Bearings	£28.43 £23.69
7028	ALL21862 Available to backorder	Bolts	£13.01 £10.84
7030	ALL12661 In stock	Friction Disc	£33.24 £27.70
7031	ALL12579 In stock	Washer	£14.03 £11.69
7032	ALL12662 Available to backorder	Washer	£5.08 £4.23
7033	ALL21176 Available to backorder	Drive Plate	£26.09 £21.74
7035	ALF016L13440 Available to backorder	Socket	£7.94 £6.62
7037	ALF016L03958 Available to backorder	Bearing Bush 19x22x16mm	£8.42 £7.02
7038	ALF016L16272 Available to backorder	Bolts	£3.48 £2.90
7039	ALL12755 Available to backorder	Clutch Fork	£32.60 £27.17
7041	ALF016L12380 Available to backorder	Contact Tab	£13.33 £11.11
7042	ALF016L12656 Available to backorder	Spring	£13.64 £11.37
7043	ALF016L12774 Available to backorder	Spring Lever	£13.55 £11.29
7044	ALL21507 Available to backorder	Bearing Journal	£20.82 £17.35
7049	ALF016L20418 Available to backorder	Button	£10.92 £9.10
7050	ALF016L12750 Available to backorder	Bearing Journal Was 90	£1.46 £1.22
7051	ALL20305 Available to backorder	Bearing Pin	£18.44 £15.37
7052	ALF016L13230 Available to backorder	Split Pin	£2.58 £2.15
7070	ALF016L06955 Available to backorder	Lock Nut 5/16 Unf	£1.80 £1.50
7071	ALF016L10273 Available to backorder	Lock Washer	£1.16 £0.97
7072	ALF016L12381 Available to backorder	Lock Washer	£1.46 £1.22
7073	ALL13233 Available to backorder	Washer	£2.74 £2.28
7076	ALF016L13237 Available to backorder	Washer	£2.71 £2.26
7078	ALF016L18174 Available to backorder	Lock Washer	£2.58 £2.15
7081	ALF016L18730 Available to backorder	Screw	£1.80 £1.50
7084	ALF016L20253 Available to backorder	Screw	£1.16 £0.97
7089	ALF016L18167 Available to backorder	Screw 1/4 Unf x 1/2	£2.58 £2.15
7091	ALF016L20338 Available to backorder	Clamping Nut	£1.48 £1.23
87006	ALF016L21249 In stock	Chain Lock	£10.82 £9.02
87020	ALF016100712 Available to backorder	Spigot	£7.86 £6.55
87021	ALF016L65640 Available to backorder	Storekeeper	£16.93 £14.11
87022	ALL12434 Available to backorder	Claw Ring	£10.06 £8.38
87023	ALF016L65618 Available to backorder	Clutch Fork	£27.29 £22.74
87027	ALL12798 Available to backorder	Mounting Bracket	£9.40 £7.83
87029	ALF016L20300 Available to backorder	Switching Ring	£125.39 £104.49
87034	ALF016L12964 Available to backorder	Drive Device	£172.09 £143.41
87045	ALL20414 Available to backorder	Tie Rod End	£22.37 £18.64
87046	ALL12749 Available to backorder	Spigot	£7.21 £6.01
87048	ALF016J10129 Available to backorder	Lever	£20.76 £17.30
