Atco Royale 20 IC - F016310442 - Cutter Assembly

Name: Atco Royale 20 IC - F016310442 - Cutter Assembly
SKU: royale_20_f016310442_cutter_assy-group
Price: 1.19 GBP
Availability: InStock

Part No. royale_20_f016310442_cutter_assy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Atco Royale 20 IC - F016310442 - Cutter Assembly

Description

Atco Royale 20

Article number: F016310442

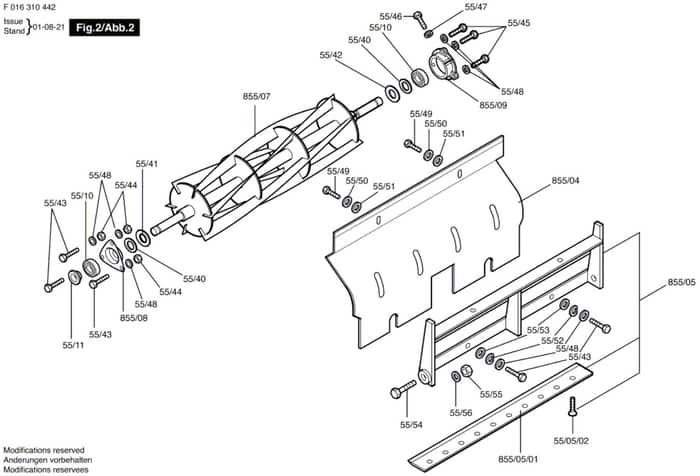

Cutter Assembly - Parts Diagram

	Part No.	Details
5510	ALL13298 In stock	Ball Bearings	£29.00 £24.17
5511	ALL20310 Available to backorder	Spacer Ring	£12.70 £10.58
5540	ALF016L13236 In stock	Washer	£3.40 £2.83
5541	ALF016L13235 In stock	Washer	£1.43 £1.19
5542	ALF016L12404 In stock	Washer	£9.23 £7.69
5543	ALF016L20252 Available to backorder	Screw 5/16 Unf x 5/8	£2.66 £2.22
5544	ALF016L20303 Available to backorder	Nut 5/16-Unf D/C	£2.66 £2.22
5545	ALF016L20382 Available to backorder	Screw	£1.52 £1.27
5546	ALF016L20377 Available to backorder	Screw	£1.52 £1.27
5548	ALF016L18181 Available to backorder	Lock Washer 1/2"	£1.97 £1.64
5552	ALF016L12918 Available to backorder	Washer	£2.71 £2.26
5554	ALL20334 Available to backorder	Barrel Bolt	£23.51 £19.59
85507	ALF016L20668 Available to backorder	Cylinder	£373.70 £311.42
85508	ALF016L65640 Available to backorder	Storekeeper	£17.52 £14.60
85509	ALF016P20381 Available to backorder	Storekeeper	£135.48 £112.90
550502	ALF016L20363 In stock	Screw	£5.23 £4.36
