Atco Royale 20 - F016310042 - Rear Roller Assembly

Name: Atco Royale 20 - F016310042 - Rear Roller Assembly
SKU: royale_20_f016310042_rear_roller_assy-group
Price: 1.56 GBP
Availability: InStock

Part No. royale_20_f016310042_rear_roller_assy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Atco Royale 20 - F016310042 - Rear Roller Assembly

Description

Atco Royale 20

Article number: F016310042

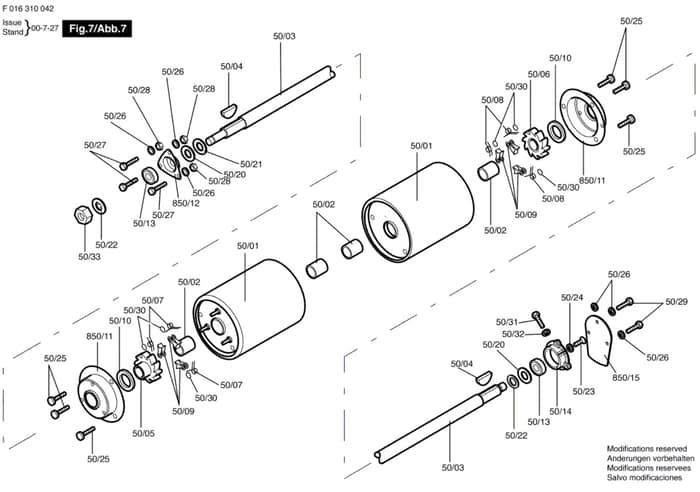

Rear Roller Assembly - Parts Diagram

	Part No.	Details
5001	ALF016L59566 Available to backorder	Roller	£501.74 £418.12
5002	ALF016L18490 Available to backorder	Bearing Bush	£19.21 £16.01
5003	ALL20437 Available to backorder	Roller Shaft	£132.24 £110.20
5004	ALF016L12378 Available to backorder	Key	£7.48 £6.23
5005	ALF016L59543 Available to backorder	Ratchet	£125.40 £104.50
5006	ALF016L59544 Available to backorder	Ratchet	£116.40 £97.00
5007	ALF016L59648 Available to backorder	Spring	£2.83 £2.36
5008	ALF016L59549 Available to backorder	Torsion Spring	£12.50 £10.42
5009	ALL12409 Available to backorder	Delivery Handle	£7.18 £5.98
5010	ALL12747 Available to backorder	Felt Ring	£6.28 £5.23
5023	ALF016L20263 Available to backorder	Screw 1/4 Unf-L/H x 1/2	£6.80 £5.67
5024	ALF016L09682 Available to backorder	Washer	£1.87 £1.56
85011	ALF016L59722 Available to backorder	Dust Cover	£9.61 £8.01
85015	ALL12595 Available to backorder	Dust Cover	£11.87 £9.89
