Atco Club B20 - F016L80711 - Drive Assembly

Name: Atco Club B20 - F016L80711 - Drive Assembly
SKU: club_b20_f016l80711_drive_assy-group
Price: 0.46 GBP
Availability: InStock

Part No. club_b20_f016l80711_drive_assy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Atco Club B20 - F016L80711 - Drive Assembly

Description

Atco Club B20

Article number: F016L80711

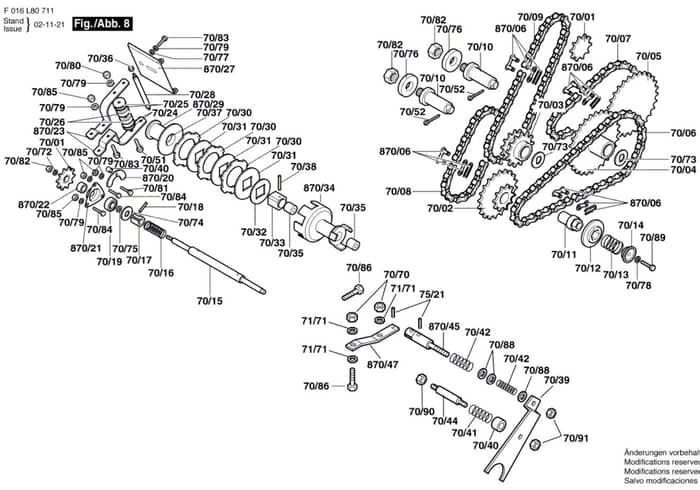

Drive Assembly - Parts Diagram

	Part No.	Details
7001	ALF016L12433 In stock	Sprocket	£33.35 £27.79
7002	ALF016L20312 Available to backorder	Sprocket	£340.32 £283.60
7004	ALF016L20321 Available to backorder	Sprocket	£216.24 £180.20
7005	ALF016L20327 Available to backorder	Transport Rail	£116.40 £97.00
7006	ALF016L66785 Available to backorder	Chain 1/2" N-38	£111.12 £92.60
7007	ALF016L66786 In stock	Chain 1/2" N-34	£62.36 £51.97
7008	ALF016L66787 In stock	Chain 1/2" N-28	£90.37 £75.31
7009	ALF016L66788 In stock	Chain 1/2" N-43	£94.10 £78.42
7010	ALL20333 Available to backorder	Shaft	£94.68 £78.90
7011	ALL20315 In stock	Cuff	£70.64 £58.87
7012	ALL20314 In stock	Driver	£46.32 £38.60
7013	ALF016L12757 In stock	Spring	£13.12 £10.93
7014	ALL20316 In stock	Washer	£2.94 £2.45
7015	ALL20297 Available to backorder	Clutch Shaft	£116.40 £97.00
7016	ALL35789 Available to backorder	Compression Spring	£13.70 £11.42
7017	ALL09422 Available to backorder	Adjustment Sleeve	£10.93 £9.11
7018	ALF016L09498 Available to backorder	Taper Pin	£6.46 £5.38
7019	ALF016L03729 Available to backorder	Ball Bearings	£68.76 £57.30
7024	ALF016L10198 Available to backorder	Washer	£2.83 £2.36
7025	ALF016L13296 In stock	Washer	£0.55 £0.46
7026	ALF016L10233 In stock	Bearings	£30.46 £25.38
7028	ALL21862 Available to backorder	Bolts	£13.46 £11.22
7031	ALL12579 In stock	Washer	£15.04 £12.53
7032	ALL12662 Available to backorder	Washer	£5.26 £4.38
7033	ALL21176 Available to backorder	Drive Plate	£26.99 £22.49
7035	ALF016L13440 Available to backorder	Socket	£20.35 £16.96
7038	ALF016L16272 Available to backorder	Bolts	£3.60 £3.00
7039	ALL12755 Available to backorder	Clutch Fork	£33.73 £28.11
7041	ALF016L12380 Available to backorder	Contact Tab	£13.79 £11.49
7042	ALF016L12656 Available to backorder	Spring	£14.12 £11.77
7044	ALL21507 Available to backorder	Bearing Journal	£21.53 £17.94
7051	ALL20305 Available to backorder	Bearing Pin	£19.08 £15.90
7052	ALF016L13230 Available to backorder	Split Pin	£2.66 £2.22
7070	ALF016L06955 Available to backorder	Lock Nut 5/16 Unf	£1.87 £1.56
7072	ALF016L12381 Available to backorder	Lock Washer	£1.52 £1.27
7073	ALL13233 Available to backorder	Washer	£2.83 £2.36
7076	ALF016L13237 Available to backorder	Washer	£2.80 £2.33
7078	ALF016L18174 Available to backorder	Lock Washer	£2.66 £2.22
7080	ALF016L18609 Available to backorder	Nut	£2.80 £2.33
7081	ALF016L18730 Available to backorder	Screw	£1.87 £1.56
7084	ALF016L20253 Available to backorder	Screw	£1.20 £1.00
7089	ALF016L18167 Available to backorder	Screw 1/4 Unf x 1/2	£2.66 £2.22
7091	ALF016L20338 Available to backorder	Clamping Nut	£1.54 £1.28
7521	ALL36829 Available to backorder	Bearing Journal	£3.40 £2.83
87006	ALF016L21249 In stock	Chain Lock	£11.60 £9.67
87020	ALF016100712 Available to backorder	Spigot	£8.14 £6.78
87021	ALF016L65640 Available to backorder	Storekeeper	£17.52 £14.60
87022	ALL12434 Available to backorder	Claw Ring	£10.40 £8.67
87023	ALF016L65618 Available to backorder	Clutch Fork	£28.24 £23.53
87027	ALL12798 Available to backorder	Mounting Bracket	£9.72 £8.10
87029	ALF016L20300 Available to backorder	Switching Ring	£125.40 £104.50
87034	ALF016L12964 Available to backorder	Drive Device	£172.08 £143.40
87045	ALL20414 Available to backorder	Tie Rod End	£23.15 £19.29
