Description

Atco Club B20

Article number: F016L80244

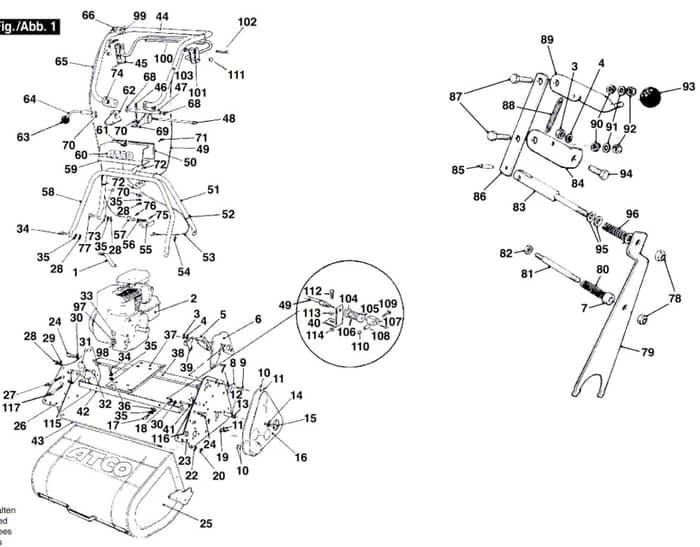

Main Assembly - Parts Diagram

Ref. Img. Part No. Details
  3 Nut 5/16-Unf D/C ALF016L20303
Nut 5/16-Unf D/C
Out of stock
£2.46 £2.05

  4 Lock Washer 1/2 ALF016L18181
Lock Washer 1/2"
Out of stock
£1.81 £1.51

  5 Coupling Clip ALF016100714
Coupling Clip
Out of stock
£23.16 £19.30

  6 Support Bracket ALF016L65624
Support Bracket
Out of stock
£24.40 £20.33

  10 Oil Tank ALF016L16703
Oil Tank
Out of stock
£8.77 £7.31

  11 Handrim BQF016L16704
Handrim
Out of stock
£1.18 £0.98

  14 Washer 0.38mm ALF016L12635
Washer 0.38mm
Out of stock
£1.40 £1.17

  15 Special Nut ALF016L20336
Special Nut
In stock
£9.12 £7.60

  16 Chain Cover ALF016L65616
Chain Cover
Out of stock
£55.98 £46.65

  17 Screw ALF016L20402
Screw
Out of stock
£2.26 £1.88

  18 Nut 1/2 ALF016L20239
Nut 1/2"
Out of stock
£2.46 £2.05

  19 Plate ALL20319
Plate
Out of stock
£3.30 £2.75

  20 Nut M6 ALF016L35329
Nut M6
In stock
Was £2.46 £2.05 Special Price £1.19 £0.99

  24 Screw ALF016L20344
Screw
Out of stock
£3.32 £2.77

  27 Screw ALL33701
Screw
Out of stock
£23.81 £19.84

  28 Nut ALF016L18048
Nut
Out of stock
£2.46 £2.05

  29 Spring Washer ALF016L18028
Spring Washer
In stock
Was £1.40 £1.17 Special Price £1.01 £0.84

  30 Spring Washer 1/2 ALF016L18182
Spring Washer 1/2"
Out of stock
£2.58 £2.15

  31 Locking Lever ALF016L12805
Locking Lever
In stock
£17.30 £14.42

  32 Bearing Journal ALF016L20376
Bearing Journal
Out of stock
£27.06 £22.55

  33 Barrel Bolt ALF016W25673
Barrel Bolt
Out of stock
£1.40 £1.17

  34 Screw ALF016L20345
Screw
Out of stock
£1.40 £1.17

  36 Washer ALF016L13811
Washer
Out of stock
£2.46 £2.05

  41 Barrel Bolt ALF016L20388
Barrel Bolt
Out of stock
£2.18 £1.82

  43 Pull Rod ALL33683
Pull Rod
Out of stock
£42.02 £35.02

  49 Cable ALL34688
Cable
In stock
£28.08 £23.40

  52 Cable Holder ALF016L11580
Cable Holder
Out of stock
£1.78 £1.48

  66 Gear Lever BQF016W25089
Gear Lever
Out of stock
£51.10 £42.58

  70 Washer ALF016L09966
Washer
Out of stock
£2.46 £2.05

  78 Clamping Nut ALF016L20338
Clamping Nut
Out of stock
£1.42 £1.18

  79 Clutch Fork ALL12755
Clutch Fork
Out of stock
£31.06 £25.88

  80 Contact Tab ALF016L12380
Contact Tab
Out of stock
£12.70 £10.58

  81 Bearing Journal ALL21507
Bearing Journal
Out of stock
£19.82 £16.52

  82 Clamping Nut ALF016L18723
Clamping Nut
Out of stock
£1.10 £0.92

  83 Tie Rod End ALL20414
Tie Rod End
Out of stock
£21.31 £17.76

  84 Spigot ALL12749
Spigot
Out of stock
£7.10 £5.92

  85 Bearing Journal Was 90 ALF016L12750
Bearing Journal Was 90
Out of stock
£1.40 £1.17

  88 Spring Lever ALF016L12774
Spring Lever
Out of stock
£13.34 £11.12

  89 Lever ALF016J10129
Lever
Out of stock
£19.78 £16.48

  90 Lock Washer ALF016L10273
Lock Washer
Out of stock
£1.14 £0.95

  92 Lock Nut 5/16 Unf ALF016L06955
Lock Nut 5/16 Unf
Out of stock
£1.78 £1.48

  93 Button ALF016L20418
Button
Out of stock
£10.76 £8.97

  94 Screw 5/16 Unf x 5/8 ALF016L20252
Screw 5/16 Unf x 5/8
Out of stock
£2.46 £2.05

  95 Washer 12.1x6.4x1.5 ALF016L18129
Washer 12.1x6.4x1.5
Out of stock
£1.42 £1.18

  96 Spring ALF016L12656
Spring
Out of stock
£13.44 £11.20

  98 Lock Washer ALF016L11107
Lock Washer
Out of stock
£1.14 £0.95

  103 Lock Nut M6 ALF016L35388
Lock Nut M6
Out of stock
£2.46 £2.05

  104 Spigot ALF016L22615
Spigot
Out of stock
£10.36 £8.63

  106 Spring ALF016L09482
Spring
Out of stock
£9.86 £8.22

  107 Clevis ALF016L66085
Clevis
Out of stock
£8.00 £6.67

  109 Hexagon Screw ALF016W25710
Hexagon Screw
Out of stock
£3.08 £2.57

  111 Safety Cap Ø8mm Black ALF016T48990
Safety Cap Ø8mm Black
In stock
£1.68 £1.40

  112 Hexagon Screw ALF016L18408
Hexagon Screw
Out of stock
£1.36 £1.13

  117 Adjusting Screw ALF016L20375
Adjusting Screw
Out of stock
£17.04 £14.20


Description

Atco Club B20

Article number: F016L80244

Main Assembly - Parts Diagram
