Atco Club B17 - F016L80391
Atco Club B17 - F016L80391 - Main Assembly

Atco Club B17 - F016L80391 - Main Assembly

Part No. club_b17_f016l80391_main_assy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Atco Club B17 - F016L80391 - Main Assembly

Atco Club B17 - F016L80391 - Main Assembly

Description

Atco Club B17

Article number: F016L80391

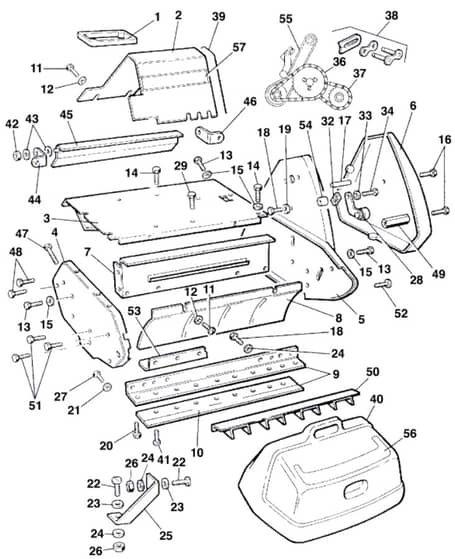

Main Assembly - Parts Diagram

Ref.		Img.	Part No.	Details
	18		ALF016L18167 Available to backorder	Screw 1/4 Unf x 1/2		£2.66 £2.22
	19		ALF016L18174 Available to backorder	Lock Washer		£2.66 £2.22
	27		ALF016L20851 Available to backorder	Screw		£1.20 £1.00
	33		ALF016L35307 In stock	Spring Washer 5/16 Sw Se		£1.79 £1.49
	34		ALF016L20252 Available to backorder	Screw 5/16 Unf x 5/8		£2.66 £2.22
	40		ALF016A58176 Available to backorder	Collection Container		£276.72 £230.60
	41		ALF016L20735 In stock	Screw		£3.60 £3.00
	42		ALF016L06955 Available to backorder	Lock Nut 5/16 Unf		£1.87 £1.56
	52		BQF016L24690 Available to backorder	Allen Screw 5/16 Unf		£1.18 £0.98
	54		ALF016L35411 Available to backorder	Washer 8.5mm		£1.28 £1.07

Description

Atco Club B17

Article number: F016L80391

Main Assembly - Parts Diagram
