Atco Balmoral 20SK - 3616C09A70 - Rear Roller Assembly

Name: Atco Balmoral 20SK - 3616C09A70 - Rear Roller Assembly
SKU: balmoral_20sk_3616c09a70_rear_roller_assy-group
Price: 1.26 GBP
Availability: InStock

Part No. balmoral_20sk_3616c09a70_rear_roller_assy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Atco Balmoral 20SK - 3616C09A70 - Rear Roller Assembly

Description

Atco Balmoral 20SK

Article number: 3616C09A70

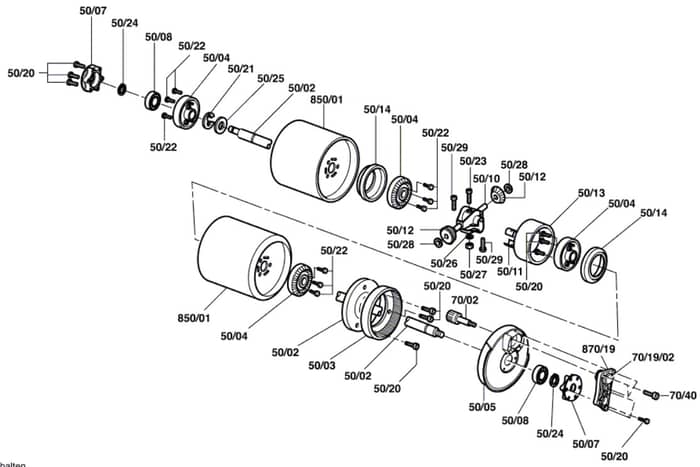

Rear Roller Assembly - Parts Diagram

	Part No.	Details
5003	ALF016A57635 In stock	Ring	£63.31 £52.76
5004	ALF016A57674 In stock	Gear	£15.88 £13.23
5005	ALF016A75403 Available to backorder	Protective Cover	£22.26 £18.55
5007	ALF016A58439 Available to backorder	Storekeeper	£19.34 £16.12
5010	ALF016L66596 In stock	Clamping Piece	£16.81 £14.01
5012	ALF016A57499 In stock	Gear	£15.85 £13.21
5013	ALF016A57832 Available to backorder	Sheet Metal	£32.24 £26.87
5014	ALF016A57823 In stock	Plastic Rosette	£9.36 £7.80
5022	ALF016A58178 In stock	Headpin	£2.76 £2.30
5023	ALF016A58385 In stock	Screw	£2.46 £2.05
5024	ALF016A58441 In stock	Safety Clip	£6.50 £5.42
5025	ALF016A58577 Available to backorder	Washer M 20	£2.15 £1.79
5028	ALF016T49100 In stock	Collar 12mm T40	£2.90 £2.42
5029	ALF016T46295 Available to backorder	Screw	£1.51 £1.26
7002	ALF016A57698 In stock	Shaft	£26.47 £22.06
7040	ALF016A57758 In stock	Outer Ring	£3.07 £2.56
87019	ALF016A75401 In stock	Bracket	£42.38 £35.32
701902	ALF016A57764 In stock	Bearing Bush	£11.34 £9.45
