Atco Balmoral 20SE - F016309942 - Main Assembly

Description

Atco Balmoral 20SE

Article number: F016309942

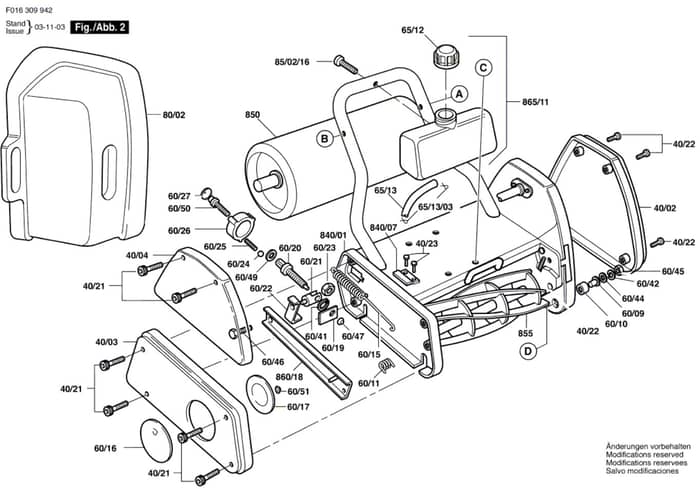

Main Assembly - Parts Diagram

	Part No.	Details
850	ALF016A75430 Available to backorder	Roller	£631.86 £526.55
4002	ALF016A75900 In stock	Protective Cover L/H	£74.11 £61.76
4003	ALF016A75089 In stock	Side Cover R/H	£47.63 £39.69
4021	ALF016A58228 In stock	Screw M6	£2.76 £2.30
4022	ALF016A58229 In stock	Screw M6	£2.76 £2.30
6009	ALF016A57748 Available to backorder	Pin L/H	£2.96 £2.47
6010	ALF016A57676 Available to backorder	Cap	£2.96 £2.47
6011	ALF016A57820 In stock	Spring	£3.67 £3.06
6015	ALF016A57995 In stock	Spring	£11.34 £9.45
6016	ALF016A57576 In stock	Lid	£14.34 £11.95
6017	ALF016A57577 In stock	Washer	£26.52 £22.10
6020	ALF016A58231 Available to backorder	Spindle	£28.58 £23.82
6021	ALF016A58233 Available to backorder	Nut	£18.76 £15.63
6022	ALF016A75786 Out of stock	Guide Wall	£9.38 £7.82
6023	ALF016A58232 Available to backorder	Nut	£2.80 £2.33
6024	ALF016T48358 In stock	Ball Bearings	£1.67 £1.39
6025	ALF016T48420 In stock	Compression Spring	£3.07 £2.56
6026	ALF016A58730 In stock	Button	£10.97 £9.14
6027	ALF016T48421 In stock	Cap	£3.73 £3.11
6041	ALF016J10382 In stock	Safety Clip	£4.09 £3.41
6042	ALF016L35307 In stock	Spring Washer 5/16 Sw Se	£1.79 £1.49
6044	ALF016L35411 Available to backorder	Washer 8.5mm	£1.28 £1.07
6045	ALF016L35457 In stock	Nut M8	£2.76 £2.30
6047	ALF016T46684 In stock	Washer	£2.76 £2.30
6049	ALF016T48359 In stock	Washer	£1.58 £1.32
6050	ALF016T48457 Available to backorder	Screw M6	£2.66 £2.22
8002	ALF016A58177 Available to backorder	Collection Container	£303.96 £253.30
86018	ALF016A58235 Available to backorder	Linkage	£39.34 £32.78
651303	BQF016A57982 Available to backorder	Pipe Clamp	£1.18 £0.98
850216	ALF016L36835 Available to backorder	Screw M5x32	£1.18 £0.98
