Atco Balmoral 20SE - F016309142 - Front Roller Assembly

Name: Atco Balmoral 20SE - F016309142 - Front Roller Assembly
SKU: balmoral_20se_f016309142_front_roller_assy-group
Price: 1 GBP
Availability: InStock

Part No. balmoral_20se_f016309142_front_roller_assy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Atco Balmoral 20SE - F016309142 - Front Roller Assembly

Description

Atco Balmoral 20SE

Article number: F016309142

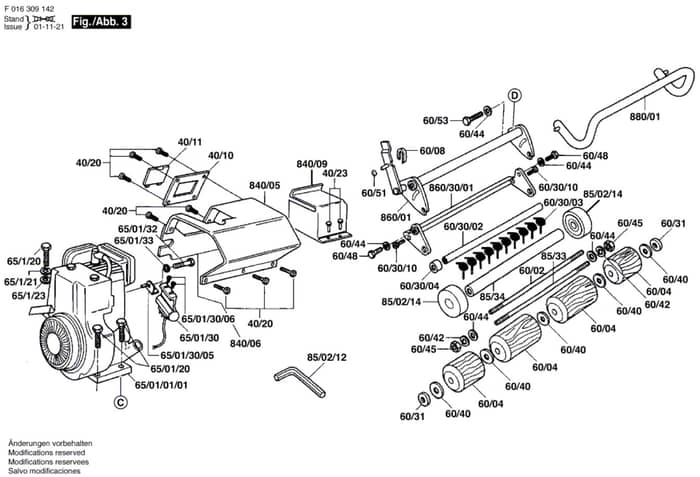

Front Roller Assembly - Parts Diagram

	Part No.	Details
4020	ALF016A57756 In stock	Phillips Screw M5	£1.76 £1.47
6008	ALF016A57675 In stock	Bearing Bush	£3.67 £3.06
6042	ALF016L35307 In stock	Spring Washer 5/16 Sw Se	£1.79 £1.49
6048	ALF016T48048 In stock	Hexagon Head Screw M8	£1.60 £1.33
6051	ALF016T48549 In stock	Collar	£2.90 £2.42
6053	ALF016W25213 Available to backorder	Hexagon Screw Was 170	£3.34 £2.78
88001	ALF016103781 Available to backorder	Support Tube	£125.40 £104.50
603003	ALF016A57887 In stock	Spring	£2.99 £2.49
603004	ALF016A57930 Available to backorder	Washer	£9.24 £7.70
603010	ALF016L18120 In stock	Hexagon Screw M6x12	£2.04 £1.70
650120	ALF016A58093 Available to backorder	Barrel Bolt M8	£4.80 £4.00
650132	ALF016L20252 Available to backorder	Screw 5/16 Unf x 5/8	£2.66 £2.22
650133	ALF016T40590 Available to backorder	Washer Ø8.15mm	£1.20 £1.00
850212	ALF016A58230 Available to backorder	Pin Wrench	£4.20 £3.50
850214	ALF016L22149 In stock	Roller	£7.48 £6.23
