Atco Balmoral 20S - Up To 001968A - Rear Roller Assembly

Description

Atco Balmoral 20S

Article number: Up To 001968A

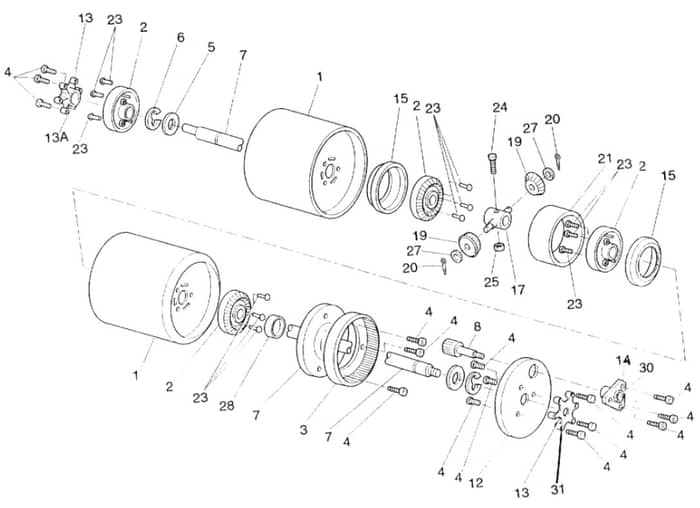

Rear Roller Assembly - Parts Diagram

	Part No.	Details
2	ALF016A57674 In stock	Bush	£15.88 £13.23
3	ALF016A57635 In stock	Ring Gear	£63.31 £52.76
4	ALF016A57756 In stock	Screw M5	£1.76 £1.47
6	ALF016A58577 Available to backorder	Washer Distance	£2.15 £1.79
8	ALF016A57698 In stock	Pinion Shaft Assy	£26.47 £22.06
15	ALF016A57823 In stock	Differential End Cover	£9.36 £7.80
19	ALF016A57499 In stock	Differential Pinion Vis	£15.85 £13.21
20	ALF016L13230 Available to backorder	Split Pin 3/32" x 5/8"	£2.66 £2.22
21	ALF016A57832 Available to backorder	Differential Cover	£32.24 £26.87
23	ALF016A58178 In stock	Rivet	£2.76 £2.30
24	ALF016A58385 In stock	Bolt	£2.46 £2.05
25	ALF016L35388 In stock	Nut M6 x 10 Nyloc P Type	£1.19 £0.99
27	ALF016L35411 Available to backorder	Washer	£1.28 £1.07
28	ALF016A58235 Available to backorder	Spacer	£39.34 £32.78
30	ALF016A57761 In stock	Bush	£25.33 £21.11
31	ALF016A57764 In stock	Bush	£11.34 £9.45
