Atco Balmoral 20S - Up To 001968A - Main Assembly

Name: Atco Balmoral 20S - Up To 001968A - Main Assembly
SKU: balmoral_20s_up_to_001968a_main_assy-group
Price: 0.65 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Atco Balmoral 20S - Up To 001968A - Main Assembly

Description

Atco Balmoral 20S

Article number: Up To 001968A

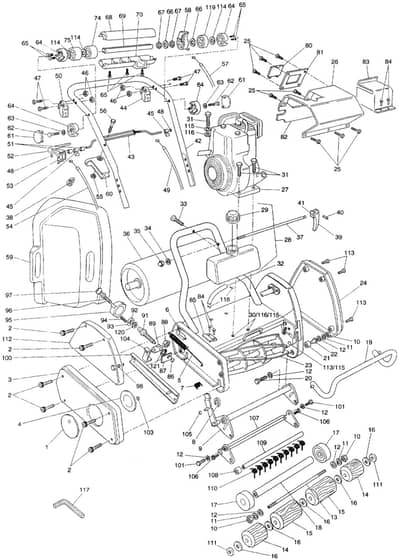

Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ALF016A57576	Blanking Disc Bl	In stock	£13.20 £11.00
2	ALF016A58228	Screw M6	In stock	£2.68 £2.23
4	ALF016A57577	Indicator	In stock	£24.36 £20.30
5	ALF016A57995	Spring Maintaining	In stock	£10.44 £8.70
7	ALF016A57820	Pin Spring Hair Cl/Bl/Wr/Sp	Out of stock	£3.60 £3.00
8	ALF016A57675	Bearing	In stock	£3.26 £2.72
10	ALF016L35457	Nut M8	In stock	£2.68 £2.23
11	ALF016L35307	Washer Spring 5/16 Sw Sec	In stock	£1.75 £1.46
17	ALF016L22149	Wheel Side	In stock	£6.86 £5.72
19	ALF016103781	Grassbox Cradle 20"	Out of stock	£119.42 £99.52
20	ALF016W25213	Screw	Out of stock	£3.08 £2.57
21	ALF016A57676	Carrier Pivot Bush	Out of stock	£2.74 £2.28
22	ALF016A57748	Carrier Pivot L/H	Out of stock	£2.74 £2.28
24	ALF016A75900	Drive Cover Bl/Wr	Out of stock	£147.84 £123.20
25	ALF016A57756	Screw M5	In stock	£1.56 £1.30
30	ALF016L11218	Nut M8 Locknut	Out of stock	£1.40 £1.17
34	ALF016L22700	Washer Spring M6 Dbl Coil	Out of stock	£1.40 £1.17
35	ALF016L22701	Nut Dome	Out of stock	£3.32 £2.77
37	ALF016T48385	Spindle Camloc Stu40	Out of stock	£7.73 £6.44
38	ALF016T49524	Cable Clip Pucl	Out of stock	£3.36 £2.80
39	ALF016T48384	Camloc Lever Stu40	Out of stock	£5.34 £4.45
40	ALF016T56145	Spiral Pin	Out of stock	£2.68 £2.23
43	ALF016L36714	Cntrl Lever Assy Land Dri	Out of stock	£51.88 £43.23
44	ALF016L36720	Clutch Lev Saddle - L/H	Out of stock	£28.08 £23.40
45	ALF016L36717	Cable Grab	In stock	£3.34 £2.78
46	ALF016L36836	Nut M5 D/C	In stock	£0.78 £0.65
47	ALF016L36835	Screw M5 x 30	Out of stock	£1.18 £0.98
48	ALF016T48990	Capped Ratchet Plate	In stock	£1.68 £1.40
49	ALF016A58035	Spare Part	In stock	£18.24 £15.20
50	ALF016L65657	Clutch Lev Saddle - R/H	Out of stock	£25.30 £21.08
51	ALF016L36719	Spacer	In stock	£7.54 £6.28
52	ALF016L36709	Clutch Lever S/A Cu17/Cq	Out of stock	£59.30 £49.42
53	ALF016L37700	Clutch Lever Repair Kit	In stock	£32.52 £27.10
54	ALF016A58036	Cable Clutch Cy	In stock	£21.12 £17.60
56	BQF016T48002	Screw Mtrim	Out of stock	£1.18 £0.98
59	ALF016A58177	Grassbox 20	Out of stock	£301.52 £251.27
86	ALF016T46684	Ratchet Plate	In stock	£2.46 £2.05
88	ALF016A58232	Nut Running	Out of stock	£2.58 £2.15
89	ALF016A58233	Nut Support Running	Out of stock	£17.28 £14.40
92	BQF016A58070	Washer	Out of stock	£1.76 £1.47
93	ALF016T48358	Ball Bearing Hoc Stu40	In stock	£1.49 £1.24
94	ALF016T48420	Spring Return Hoc Stu40	In stock	£2.74 £2.28
96	ALF016T48457	Bolt Roller Carrier Stu40	Out of stock	£2.46 £2.05
97	ALF016T48421	Plug Blanking Hoc Stu40	Out of stock	£3.32 £2.77
99	ALF016L35316	Washer Plain	In stock	£3.24 £2.70
100	ALF016A58235	Height Of Cut Link	Out of stock	£37.46 £31.22
103	ALF016T49100	Ratchet Plate	In stock	£2.81 £2.34
104	ALF016A75786	Link Support Plate	In stock	Was £16.00 £13.33 Special Price £10.02 £8.35
105	ALF016T48549	Ratchet Plate Stu40	In stock	£2.81 £2.34
106	ALF016L35387	Screw	In stock	£2.68 £2.23
108	ALF016A57930	Tine Spacer	Out of stock	£8.81 £7.34
110	ALF016A57887	Tine Bl	In stock	£2.89 £2.41
112	ALF016A75089	Side Plate Cover R/H Bl	In stock	£42.34 £35.28
113	ALF016A58229	Screw	In stock	£2.46 £2.05
115	ALF016L35389	Washer Spring	Out of stock	£1.68 £1.40
116	ALF016L35411	Washer	Out of stock	£1.42 £1.18
117	ALF016A58230	Allen Key	Out of stock	£3.86 £3.22
118	BQF016A57982	Petrol Pipe Clips	Out of stock	£1.18 £0.98
121	ALF016J10382	Circlip	In stock	£3.77 £3.14
125	ALF016A58364	Pin Cradle (Not Shown)	Out of stock	£9.24 £7.70
126	ALF016A58365	Spring Cradle (Not Shown)	In stock	£3.10 £2.58
127	ALF016A58366	Clip Cradle (Not Shown)	Out of stock	£3.32 £2.77
