Atco Balmoral 14S - 002578A Onwards - Main Assembly

Atco Balmoral 14S - 002578A Onwards - Main Assembly
Atco Balmoral 14S - 002578A Onwards - Main Assembly

Description

Atco Balmoral 14S

Article number: 002578A Onwards

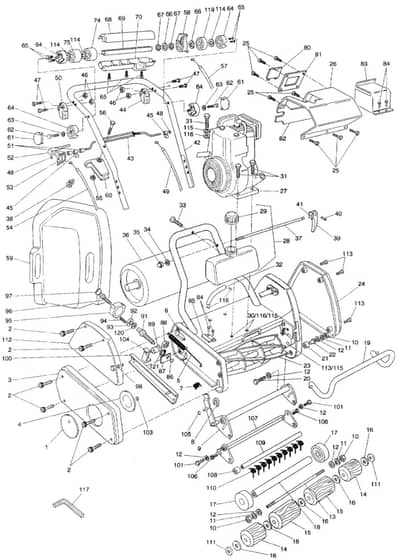

Main Assembly - Parts Diagram

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Blanking Disc Bl ALF016A57576
Blanking Disc Bl
 In stock
£12.74 £10.62

  2 Screw M6 ALF016A58228
Screw M6
 In stock
£2.46 £2.05

  4 Indicator ALF016A57577
Indicator
 In stock
£26.12 £21.77

  5 Spring Maintaining ALF016A57995
Spring Maintaining
 In stock
£10.08 £8.40

  7 Pin Spring Hair Cl/Bl/Wr/Sp ALF016A57820
Pin Spring Hair Cl/Bl/Wr/Sp
 Out of stock
£3.60 £3.00

  8 Bearing ALF016A57675
Bearing
 In stock
£3.26 £2.72

  10 Nut M8 ALF016L35457
Nut M8
 Out of stock
£2.46 £2.05

  11 Washer Spring 5/16 Sw Sec ALF016L35307
Washer Spring 5/16 Sw Sec
 In stock
£1.75 £1.46

  13 Spindle Front Roller 14 Bl14 (Not Shown) BQF016A57752
Spindle Front Roller 14 Bl14 (Not Shown)
 Out of stock
£12.77 £10.64

  17 Wheel Side ALF016L22149
Wheel Side
 In stock
£6.86 £5.72

  19 Grassbox Cradle 14 ALF016103779
Grassbox Cradle 14"
 Out of stock
£58.92 £49.10

  20 Screw ALF016W25213
Screw
 Out of stock
£3.08 £2.57

  21 Carrier Pivot Bush ALF016A57676
Carrier Pivot Bush
 Out of stock
£2.74 £2.28

  22 Carrier Pivot L/H ALF016A57748
Carrier Pivot L/H
 Out of stock
£2.74 £2.28

  23 Spare Part ALF016102961
Spare Part
 Out of stock
£343.92 £286.60

  24 Drive Cover Bl/Wr ALF016A75900
Drive Cover Bl/Wr
 In stock
£147.84 £123.20

  25 Screw M5 ALF016A57756
Screw M5
 In stock
£1.56 £1.30

  30 Nut M8 Locknut ALF016L11218
Nut M8 Locknut
 Out of stock
£1.40 £1.17

  34 Washer Spring M6 Dbl Coil ALF016L22700
Washer Spring M6 Dbl Coil
 Out of stock
£1.40 £1.17

  35 Nut Dome ALF016L22701
Nut Dome
 Out of stock
£3.32 £2.77

  36 Roller Rear 14 Assy Wr14/Sp14/Bl14 ALF016A75428
Roller Rear 14 Assy Wr14/Sp14/Bl14
 Out of stock
£463.00 £385.83

  37 Spindle Camloc Stu40 ALF016T48385
Spindle Camloc Stu40
 Out of stock
£7.73 £6.44

  38 Cable Clip Pucl ALF016T49524
Cable Clip Pucl
 Out of stock
£3.26 £2.72

  39 Camloc Lever Stu40 ALF016T48384
Camloc Lever Stu40
 Out of stock
£5.34 £4.45

  43 Cntrl Lever Assy Land Dri ALF016L36714
Cntrl Lever Assy Land Dri
 Out of stock
£51.88 £43.23

  44 Clutch Lev Saddle - L/H ALF016L36720
Clutch Lev Saddle - L/H
 Out of stock
£28.08 £23.40

  45 Cable Grab ALF016L36717
Cable Grab
 In stock
£3.34 £2.78

  46 Nut M5 D/C ALF016L36836
Nut M5 D/C
 In stock
£0.78 £0.65

  47 Screw M5 x 30 ALF016L36835
Screw M5 x 30
 Out of stock
£1.18 £0.98

  48 Capped Ratchet Plate ALF016T48990
Capped Ratchet Plate
 In stock
£1.40 £1.17

  49 Spare Part ALF016A58035
Spare Part
 In stock
£17.68 £14.73

  50 Clutch Lev Saddle - R/H ALF016L65657
Clutch Lev Saddle - R/H
 Out of stock
£25.30 £21.08

  51 Spacer ALF016L36719
Spacer
 In stock
£7.54 £6.28

  52 Clutch Lever S/A Cu17/Cq ALF016L36709
Clutch Lever S/A Cu17/Cq
 Out of stock
£59.30 £49.42

  53 Clutch Lever Repair Kit ALF016L37700
Clutch Lever Repair Kit
 In stock
£31.40 £26.17

  54 Cable Clutch Cy ALF016A58036
Cable Clutch Cy
 In stock
£20.48 £17.07

  56 Screw Mtrim BQF016T48002
Screw Mtrim
 Out of stock
£1.18 £0.98

  59 Grassbox 14 ALF016A58175
Grassbox 14
 Out of stock
£335.04 £279.20

  86 Ratchet Plate ALF016T46684
Ratchet Plate
 In stock
£2.46 £2.05

  88 Nut Running ALF016A58232
Nut Running
 Out of stock
£2.58 £2.15

  89 Nut Support Running ALF016A58233
Nut Support Running
 Out of stock
£17.28 £14.40

  92 Washer BQF016A58070
Washer
 Out of stock
£1.76 £1.47

  93 Ball Bearing Hoc Stu40 ALF016T48358
Ball Bearing Hoc Stu40
 In stock
£1.49 £1.24

  94 Spring Return Hoc Stu40 ALF016T48420
Spring Return Hoc Stu40
 In stock
£2.74 £2.28

  96 Bolt Roller Carrier Stu40 ALF016T48457
Bolt Roller Carrier Stu40
 Out of stock
£2.46 £2.05

  97 Plug Blanking Hoc Stu40 ALF016T48421
Plug Blanking Hoc Stu40
 Out of stock
£3.32 £2.77

  99 Washer Plain ALF016L35316
Washer Plain
 In stock
£3.24 £2.70

  100 Height Of Cut Link ALF016A58235
Height Of Cut Link
 Out of stock
£37.46 £31.22

  104 Link Support Plate ALF016A75786
Link Support Plate
 In stock
Was £16.00 £13.33 Special Price £10.02 £8.35

  105 Ratchet Plate Stu40 ALF016T48549
Ratchet Plate Stu40
 In stock
£2.58 £2.15

  106 Screw ALF016L35387
Screw
 In stock
£2.46 £2.05

  108 Tine Spacer ALF016A57930
Tine Spacer
 Out of stock
£8.81 £7.34

  110 Tine Bl ALF016A57887
Tine Bl
 In stock
£2.65 £2.21

  112 Side Plate Cover R/H Bl ALF016A75089
Side Plate Cover R/H Bl
 In stock
£42.34 £35.28

  113 Screw ALF016A58229
Screw
 In stock
£2.46 £2.05

  115 Washer Spring ALF016L35389
Washer Spring
 Out of stock
£1.40 £1.17

  116 Washer ALF016L35411
Washer
 Out of stock
£1.19 £0.99

  117 Allen Key ALF016A58230
Allen Key
 Out of stock
£3.86 £3.22

  118 Petrol Pipe Clips BQF016A57982
Petrol Pipe Clips
 Out of stock
£1.18 £0.98

  121 Circlip ALF016J10382
Circlip
 In stock
£3.77 £3.14

  125 Pin Cradle (Not Shown) ALF016A58364
Pin Cradle (Not Shown)
 Out of stock
£9.24 £7.70

  126 Spring Cradle (Not Shown) ALF016A58365
Spring Cradle (Not Shown)
 In stock
£3.10 £2.58

  127 Clip (Not Shown) ALF016A58366
Clip (Not Shown)
 Out of stock
£3.32 £2.77


Description

Atco Balmoral 14S

Article number: 002578A Onwards

Main Assembly - Parts Diagram
