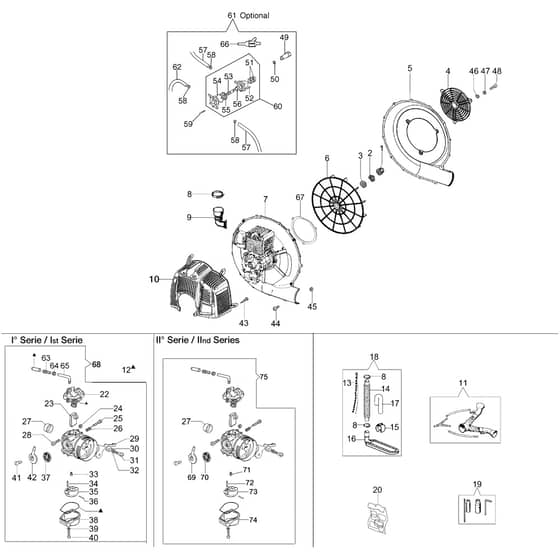

AT 8000 EURO 2 - - Efco Mistblower Fan case Diagram

Name: AT 8000 EURO 2 - - Efco Mistblower Fan case Diagram
SKU: at_8000_euro_2_fan_case-group
Price: 0.75 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AT 8000 EURO 2 - - Efco Mistblower Fan case Diagram

Description

Efco AT 8000 EURO 2 Parts Diagram

Model Year -

Be the first to review this product

0 product questions

	Part No.	Details
1	EF365000070 Available to backorder	Nut	£0.90 £0.75
2	EF365000230 Available to backorder	Washer	£0.90 £0.75
3	EF016000049 Available to backorder	Washer	£0.90 £0.75
6	EF365000203CR Available to backorder	Fan	£111.96 £93.30
8	EF330000003 Available to backorder	Band	£8.74 £7.28
9	EF365100025A Available to backorder	Blower	£8.84 £7.37
12	EF300000073 Available to backorder	Gasket Set	£21.26 £17.72
13	EF365100072 Available to backorder	Chain	£32.72 £27.27
14	EF365200082 Available to backorder	Tube	£13.44 £11.20
15	EF365200093 Available to backorder	Sleeve	£2.76 £2.30
16	EF365100006 Available to backorder	Tube	£29.12 £24.27
17	EF365000008 Available to backorder	Tube	£8.74 £7.28
18	EF365200114 Available to backorder	Dusting Kit	£33.46 £27.88
19	EF365000002 Available to backorder	Tool Kit	£14.08 £11.73
20	EF365200290 Available to backorder	Labels Kit	£13.74 £11.45
22	EF301000238 Available to backorder	Cover	£11.44 £9.53
23	EF301000237 Available to backorder	Valve	£20.52 £17.10
24	EF034000013 Available to backorder	Nut	£0.90 £0.75
25	EF300000221 Available to backorder	Screw	£5.44 £4.53
26	EF300000220 Available to backorder	Spring	£0.90 £0.75
27	EF365200046 Available to backorder	Bushing	£1.84 £1.53
28	EF3801026 Available to backorder	Screw	£0.90 £0.75
29	EF300000195 Available to backorder	Valve	£2.76 £2.30
30	EF300000226 Available to backorder	Clamp	£8.74 £7.28
31	EF300000228 Available to backorder	Pin	£5.44 £4.53
32	EF300000227 Available to backorder	Spring	£0.90 £0.75
33	EF302000156 Available to backorder	Jet 58	£8.74 £7.28
34	EF300000222R Available to backorder	Needle	£10.58 £8.82
35	EF300000198 Available to backorder	Float	£8.96 £7.47
36	EF300000225 Available to backorder	Pin	£1.84 £1.53
37	EF300000217 Available to backorder	Fuel Filter	£3.68 £3.07
38	EF300000079 Available to backorder	Tank	£15.24 £12.70
39	EF006000315 Available to backorder	Washer	£0.90 £0.75
40	EF3908005 Available to backorder	Screw	£0.90 £0.75
41	EF300000215 Available to backorder	Screw	£0.90 £0.75
42	EF365200045 Available to backorder	Spark Plug Cap	£8.98 £7.48
43	EF3960121R Available to backorder	Screw	£0.90 £0.75
44	EF300000058 Available to backorder	Screw	£0.90 £0.75
45	EF365200039 Available to backorder	Nut	£0.90 £0.75
46	EF3918005R Available to backorder	Washer	£2.44 £2.03
47	EF3819006R Available to backorder	Washer	£1.32 £1.10
48	EF3801009 Available to backorder	Screw	£0.90 £0.75
49	EF365200281 Available to backorder	Joint	£2.76 £2.30
50	EF3024010R Available to backorder	Snap Ring	£0.90 £0.75
51	EF3035230 Available to backorder	Bearing	£17.02 £14.18
52	EF3960067AR Available to backorder	Screw	£0.90 £0.75
53	EF56020102 Available to backorder	Shaft	£21.44 £17.87
55	EF56020103 Available to backorder	Impeller	£8.74 £7.28
58	EF3059006 Available to backorder	Band	£0.90 £0.75
59	EF3960063 Available to backorder	Screw	£0.90 £0.75
63	EF2318709 Available to backorder	Adjust. Screw	£8.74 £7.28
64	EF300000199 Available to backorder	Nut	£1.40 £1.17
65	EF2318708 Available to backorder	Pipe	£10.00 £8.33
69	EF300000216 Available to backorder	Fittings SN 5343400869	£5.44 £4.53
