AR 53 VBD PRO EURO 5 - - Efco Rotary Mower Illustrated parts list Diagram

Description

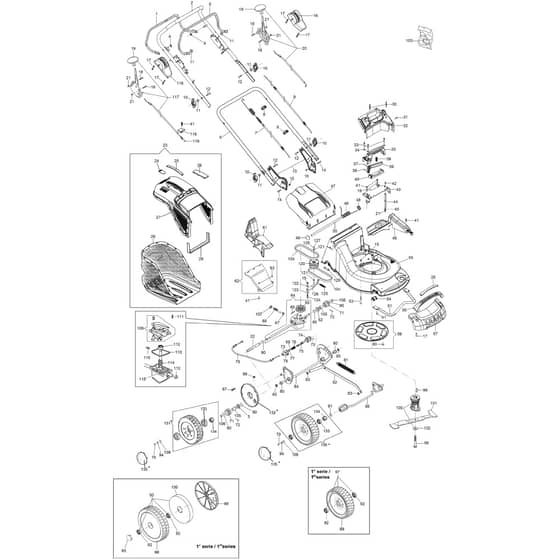

Efco AR 53 VBD PRO EURO 5 Parts Diagram

Model Year -

Be the first to review this product

0 product questions

	Part No.	Details
3	EF8202070AR Available to backorder	Clamp Right	£20.14 £16.78
4	EF3045033R Available to backorder	Retainer Washer	£2.76 £2.30
5	EF66060106R Available to backorder	Brake Lever	£26.26 £21.88
7	EF8202031ER Available to backorder	Traction Cable	£26.72 £22.27
8	EF66060231 Available to backorder	Band	£2.88 £2.40
9	EF66060585R Available to backorder	Engine Break Cable	£15.00 £12.50
10	EF66060620R Available to backorder	Knob	£6.88 £5.73
11	EF3916008R Available to backorder	Washer	£1.82 £1.52
12	EF3910015R Available to backorder	Screw	£1.84 £1.53
13	EF66060394 Available to backorder	Support Set	£45.90 £38.25
15	EF3914010 Available to backorder	Nut	£0.90 £0.75
16	EF8203347R Available to backorder	Dashboard	£16.66 £13.88
17	EF3960016 Available to backorder	Screw	£0.90 £0.75
18	EF3806021A Available to backorder	Screw	£0.90 £0.75
19	EF8203419R Available to backorder	Knob	£4.08 £3.40
21	EF3914003R Available to backorder	Nut	£0.96 £0.80
24	EF66070521R Available to backorder	Shutter	£8.74 £7.28
25	EF66070522R Available to backorder	Cover Rosso . Red	£9.26 £7.72
26	EF66070466R Available to backorder	Lock	£9.22 £7.68
27	EF66062112R Available to backorder	Frame	£56.12 £46.77
28	EF66060256R Available to backorder	Support	£8.74 £7.28
29	EF66060623R Available to backorder	Grassbag Logo Efco	£94.32 £78.60
30	EF3979018 Available to backorder	Screw	£0.90 £0.75
31	EF3960137R Available to backorder	Screw	£2.82 £2.35
33	EF3933063R Available to backorder	Screw	£2.64 £2.20
34	EF3918005R Available to backorder	Washer	£2.44 £2.03
35	EF66070533R Available to backorder	Handle	£23.54 £19.62
36	EF66070550R Available to backorder	Spring	£6.50 £5.42
37	EF3022035R Available to backorder	Plug	£3.94 £3.28
38	EF3022033R Available to backorder	Plug	£3.46 £2.88
39	EF66070534R Available to backorder	Lever	£8.42 £7.02
40	EF66070539R Available to backorder	Lock	£7.40 £6.17
41	EF3960031R Available to backorder	Screw	£0.98 £0.82
43	EF66060467R Available to backorder	Support	£33.84 £28.20
45	EF3916006R Available to backorder	Washer	£0.90 £0.75
46	EF66060468R Available to backorder	Cover	£14.96 £12.47
47	EF66060438R Available to backorder	Shutter Rosso . Red	£25.36 £21.13
48	EF3045027R Available to backorder	Clamp	£1.28 £1.07
49	EF66060060 Available to backorder	Spring	£2.76 £2.30
50	EF66060055 Available to backorder	Deflector Axle	£5.44 £4.53
52	EF8202071AR Available to backorder	Clamp Left	£20.14 £16.78
53	EF3806077 Available to backorder	Screw	£0.90 £0.75
54	EF66060007R Available to backorder	Bushing	£3.01 £2.51
56	EF66060471R Available to backorder	Handle	£9.88 £8.23
57	EF66060466R Available to backorder	Guard	£14.72 £12.27
58	EF3906162R Available to backorder	Screw	£5.44 £4.53
59	EF66060375A Available to backorder	Guard Kit	£12.12 £10.10
60	EF3960135R Available to backorder	Screw	£0.90 £0.75
61	EF66060372R Available to backorder	Mulching Cap Optional	£49.26 £41.05
62	EF66062096 Available to backorder	Cover	£12.56 £10.47
63	EF66060110R Available to backorder	Spacer	£1.84 £1.53
64	EF66060599 Available to backorder	Gear Case Assy	£190.64 £158.87
66	EF3022020R Available to backorder	Plug	£1.19 £0.99
67	EF8202010 Available to backorder	Pin	£5.44 £4.53
68	EF8202009AR Available to backorder	Spring	£8.74 £7.28
69	EF3064004AR Available to backorder	Washer	£1.84 £1.53
70	EF301000042 Available to backorder	Screw	£3.34 £2.78
71	EF8202063R Available to backorder	Sprocket	£16.78 £13.98
72	EF3033008R Available to backorder	Roller	£1.84 £1.53
73	EF3960064AR Available to backorder	Screw	£2.32 £1.93
75	EF66060443R Available to backorder	Pin	£15.08 £12.57
77	EF3049016R Available to backorder	O-Ring	£1.22 £1.02
79	EF66060441R Available to backorder	Wire	£8.36 £6.97
80	EF66060030R Available to backorder	Bushing	£3.68 £3.07
81	EF66060505R Available to backorder	Spring	£6.10 £5.08
83	EF3033129R Available to backorder	Retainer Washer	£5.12 £4.27
84	EF66060559R Available to backorder	Compl. Rear Axle	£99.92 £83.27
85	EF8202311R Available to backorder	Ring	£1.38 £1.15
88	EF8203509R Available to backorder	Tire	£58.16 £48.47
90	EF3064012R In stock	Spacer	£1.08 £0.90
91	EFYN5002200 Available to backorder	Thickness	£2.90 £2.42
92	EF3035015R Available to backorder	Bearing	£16.44 £13.70
94	EF3819009 Available to backorder	Washer	£0.90 £0.75
95	EF8203501R Available to backorder	Wheel Cover	£5.04 £4.20
96	EF8203510R Available to backorder	Tire	£61.58 £51.32
98	EF66060562R Available to backorder	Front Axle	£73.30 £61.08
99	EF8202126R Available to backorder	Key	£1.84 £1.53
100	EF66060131 Available to backorder	Hub Ø22.2mm	£28.86 £24.05
101	EF66060413R Available to backorder	Mulching Blade 53	£32.34 £26.95
102	EF66060384R Available to backorder	Washer	£3.68 £3.07
104	EF3047031R Available to backorder	Belt 10X530	£17.66 £14.72
105	EF8202062R Available to backorder	Bushing	£2.76 £2.30
106	EF3024012R In stock	Snap Ring	£1.28 £1.07
107	EF8202052R Available to backorder	Plate	£1.84 £1.53
108	EF3918009R Available to backorder	Washer	£0.90 £0.75
109	EF8202293 Available to backorder	Cover	£77.12 £64.27
110	EF3022007 Available to backorder	Plug	£0.90 £0.75
111	EF3960090AR Available to backorder	Screw	£0.90 £0.75
112	EF3035023R Available to backorder	Bearing	£15.84 £13.20
113	EF8202292 Available to backorder	Gasket	£13.10 £10.92
114	EF8202291 Available to backorder	Worm Gear	£47.88 £39.90
115	EF8202334 Available to backorder	Wheel	£81.22 £67.68
116	EF8203348R Available to backorder	Dashboard	£16.66 £13.88
118	EF66060091 Available to backorder	Clamp	£5.44 £4.53
119	EF3026005R Available to backorder	Ring	£1.76 £1.47
120	EF8203095R Available to backorder	Variator	£140.76 £117.30
121	EF3916010R Available to backorder	Washer	£0.90 £0.75
122	EF66060088 Available to backorder	Hub	£5.44 £4.53
123	EF3918013 Available to backorder	Washer	£0.90 £0.75
124	EF3806067R Available to backorder	Screw	£0.90 £0.75
125	EF66060056R Available to backorder	Spring	£2.76 £2.30
126	EF66060083 Available to backorder	Lever	£13.50 £11.25
127	EF3024010R Available to backorder	Snap Ring	£0.90 £0.75
128	EF3064005A Available to backorder	Washer	£0.90 £0.75
129	EF66060008AR Available to backorder	Plate	£1.84 £1.53
131	EF8203339B Available to backorder	Rear Wheel Kit	£45.94 £38.28
133	EF3035022R Available to backorder	Bearing	£12.76 £10.63
134	EF8203336R Available to backorder	Bushing	£2.76 £2.30
135	EF66060276 Available to backorder	Wheel Cover	£3.68 £3.07
136	EF8203340A Available to backorder	Front Wheel Kit	£59.22 £49.35
