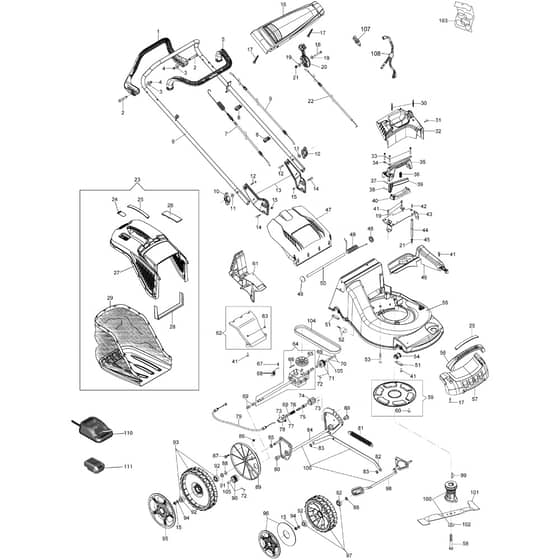

AR 53 TBXE EURO 5 - - Efco Rotary Mower Complete illustrated parts list Diagram

Name: AR 53 TBXE EURO 5 - - Efco Rotary Mower Complete illustrated parts list Diagram
SKU: ar_53_tbxe_euro_5_complete_illustrated_parts_list-group
Price: 0.75 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AR 53 TBXE EURO 5 - - Efco Rotary Mower Complete illustrated parts list Diagram

Description

Efco AR 53 TBXE EURO 5 Parts Diagram

Model Year -

Be the first to review this product

0 product questions

	Part No.	Details
1	EF66060398br In stock	Traction Lever	£22.13 £18.44
2	EF66060381BR Available to backorder	Pin	£2.76 £2.30
3	EF3064037 Available to backorder	Washer	£0.90 £0.75
4	EF3024006 Available to backorder	Snap Ring	£0.90 £0.75
5	EF66060316AR In stock	Brake Lever	£27.07 £22.56
6	EF66060502R Available to backorder	Handlebar	£59.82 £49.85
7	EF66060508R Available to backorder	Traction Cable	£22.48 £18.73
8	EF66060231 Available to backorder	Band	£2.88 £2.40
9	EF66060506R Available to backorder	Engine Break Cable	£16.02 £13.35
10	EF66060620R Available to backorder	Knob	£6.88 £5.73
11	EF3916008R Available to backorder	Washer	£1.82 £1.52
12	EF3910015R Available to backorder	Screw	£1.84 £1.53
13	EF66060394 Available to backorder	Support Set	£45.90 £38.25
15	EF3914010 Available to backorder	Nut	£0.90 £0.75
17	EF3960072 Available to backorder	Screw	£0.90 £0.75
18	EF3910019 Available to backorder	Screw	£0.90 £0.75
19	EF3918009R Available to backorder	Washer	£0.90 £0.75
20	EF66070341AR In stock	Throttle Lever	£9.54 £7.95
21	EF3914006R Available to backorder	Nut	£0.90 £0.75
22	EF66060518R Available to backorder	Throttle Cable	£14.54 £12.12
24	EF66070521R Available to backorder	Shutter	£8.74 £7.28
25	EF66070522R Available to backorder	Cover	£9.26 £7.72
26	EF66070466R Available to backorder	Lock	£9.22 £7.68
27	EF66062112R Available to backorder	Frame	£56.12 £46.77
28	EF66060256R Available to backorder	Support	£8.74 £7.28
29	EF66060623R Available to backorder	Grassbag	£94.32 £78.60
30	EF3979018 Available to backorder	Screw	£0.90 £0.75
31	EF3960137R Available to backorder	Screw	£2.82 £2.35
33	EF3933063R Available to backorder	Screw	£2.64 £2.20
34	EF3918005R Available to backorder	Washer	£2.44 £2.03
35	EF66070533R Available to backorder	Handle	£23.54 £19.62
36	EF66070550R Available to backorder	Spring	£6.50 £5.42
37	EF3022035R Available to backorder	Plug	£3.94 £3.28
38	EF3022033R Available to backorder	Plug	£3.46 £2.88
39	EF66070534R Available to backorder	Lever	£8.42 £7.02
40	EF66070539R Available to backorder	Lock	£7.40 £6.17
41	EF3960031R Available to backorder	Screw	£0.98 £0.82
42	EF301000042 Available to backorder	Screw	£3.34 £2.78
43	EF66060467R Available to backorder	Support	£33.84 £28.20
45	EF3916006R Available to backorder	Washer	£0.90 £0.75
46	EF66060468R Available to backorder	Cover	£14.96 £12.47
47	EF66060438R Available to backorder	Shutter	£25.36 £21.13
48	EF3045027R Available to backorder	Clamp	£1.28 £1.07
49	EF66060060 Available to backorder	Spring	£2.76 £2.30
50	EF66060055 Available to backorder	Deflector Axle	£5.44 £4.53
51	EF66060008AR Available to backorder	Plate	£1.84 £1.53
53	EF3806077 Available to backorder	Screw	£0.90 £0.75
54	EF66060007R Available to backorder	Bushing	£3.01 £2.51
56	EF66060471R Available to backorder	Handle	£9.88 £8.23
57	EF66060466R Available to backorder	Guard	£14.72 £12.27
58	EF3906162R Available to backorder	Screw	£5.44 £4.53
59	EF66060375A Available to backorder	Guard Kit	£12.12 £10.10
60	EF3960135R Available to backorder	Screw	£0.90 £0.75
61	EF66060372R Available to backorder	Mulching Cap	£49.26 £41.05
62	EF66062096 Available to backorder	Cover	£12.56 £10.47
63	EF66060110R Available to backorder	Spacer	£1.84 £1.53
64	EF66060360DR Available to backorder	Transmission	£184.58 £153.82
65	EF66060419R Available to backorder	Pulley	£9.62 £8.02
66	EF3022020R Available to backorder	Plug	£1.19 £0.99
67	EF3960087AR Available to backorder	Screw	£2.76 £2.30
68	EF66060286R Available to backorder	Spring	£5.44 £4.53
69	EF3064004AR Available to backorder	Washer	£1.84 £1.53
70	EF3024012R In stock	Snap Ring	£1.28 £1.07
71	EF66060537R Available to backorder	Left Sprocket	£20.36 £16.97
72	EF66060536R Available to backorder	Roller	£1.42 £1.18
73	EF3960064AR Available to backorder	Screw	£2.32 £1.93
75	EF66060443R Available to backorder	Pin	£15.08 £12.57
77	EF3049016R Available to backorder	O-Ring	£1.22 £1.02
79	EF66060441R Available to backorder	Wire	£8.36 £6.97
80	EF66060030R Available to backorder	Bushing	£3.68 £3.07
81	EF66060505R Available to backorder	Spring	£6.10 £5.08
83	EF3033129R Available to backorder	Retainer Washer	£5.12 £4.27
84	EF66060547R Available to backorder	Rear Axle	£82.72 £68.93
85	EF8202311R Available to backorder	Ring	£1.38 £1.15
88	EF3027001R Available to backorder	Washer	£0.90 £0.75
89	EF66070756 Available to backorder	Wheel Cover	£11.10 £9.25
90	EF66060538R Available to backorder	Right Sprocket	£20.36 £16.97
91	EF3064039R Available to backorder	Washer	£3.68 £3.07
92	EF3035023R Available to backorder	Bearing	£15.84 £13.20
93	EF66071056R Available to backorder	Complete Wheel D.280	£32.94 £27.45
95	EF66070888R Available to backorder	Wheel Cover	£9.14 £7.62
96	EF66070885R Available to backorder	Wheel Cover	£5.48 £4.57
97	EF66070722R Available to backorder	Complete Wheel D.200	£23.22 £19.35
98	EF66060548R Available to backorder	Front Axle	£51.62 £43.02
99	EF8202126R Available to backorder	Key	£1.84 £1.53
100	EF66060131 Available to backorder	Hub Ø22.2mm	£28.86 £24.05

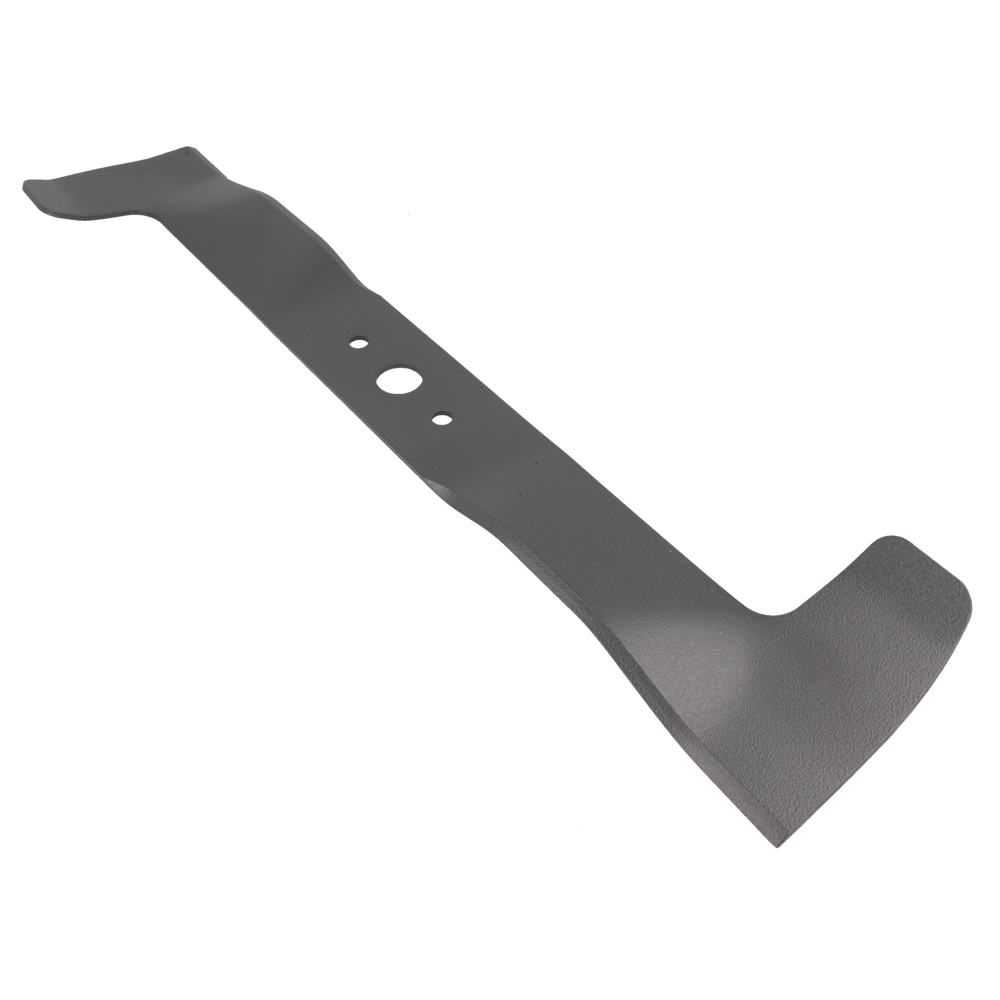

101	EF66060413R Available to backorder	Mulching Blade 53	£32.34 £26.95
102	EF66060384R Available to backorder	Washer	£3.68 £3.07

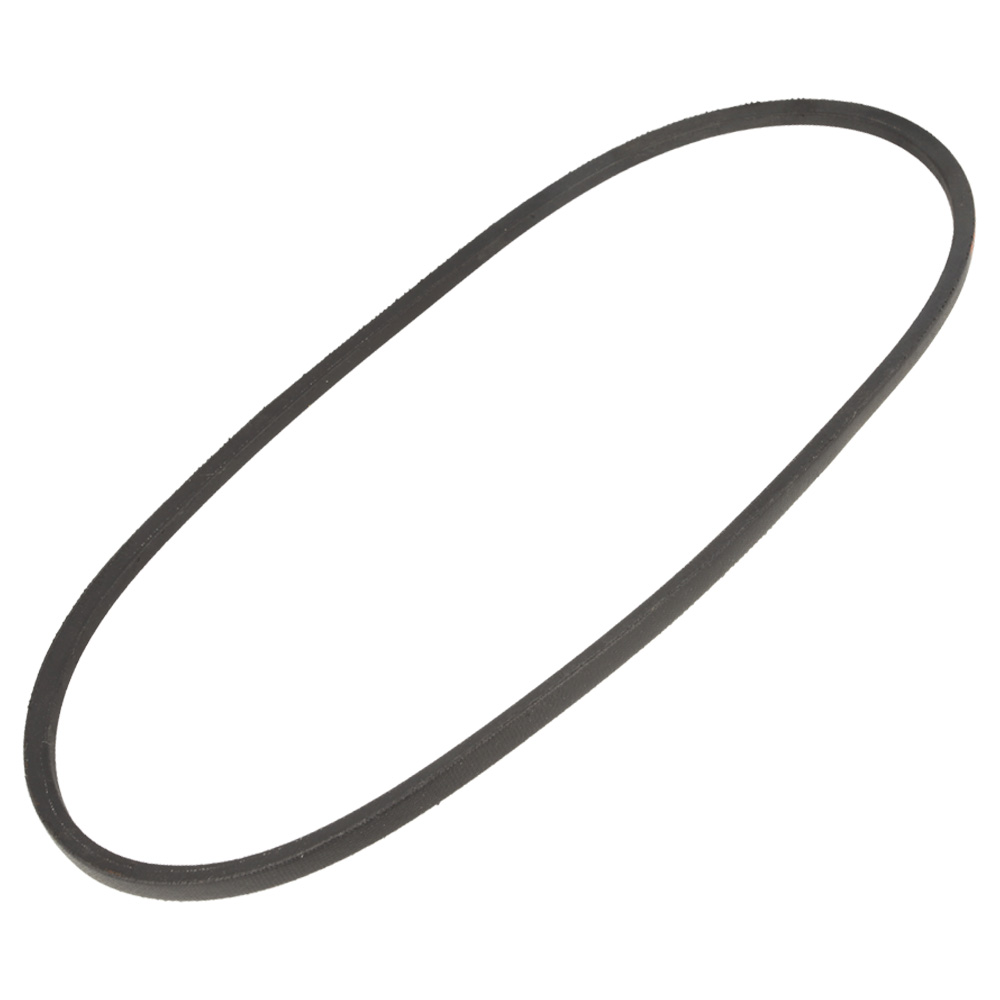

104	EF3047028R Available to backorder	Belt	£18.06 £15.05
105	EF66060415R Available to backorder	Bushing	£5.92 £4.93
106	EF66060558R Available to backorder	Axle Kit	£112.68 £93.90
107	EF3040020R Available to backorder	Switch	£40.70 £33.92
108	EF66110586AR Available to backorder	Wire	£58.80 £49.00
110	EF3075200R Available to backorder	Battery Charger	£43.56 £36.30
