APACHE 92 4x4 EVO - 2023 - Oleo-Mac Ride On Mower Engine Diagram

Name: APACHE 92 4x4 EVO - 2023 - Oleo-Mac Ride On Mower Engine Diagram
SKU: apache_92_4x4_evo_2023_engine-group
Price: 0.47 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

APACHE 92 4x4 EVO - 2023 - Oleo-Mac Ride On Mower Engine Diagram

Description

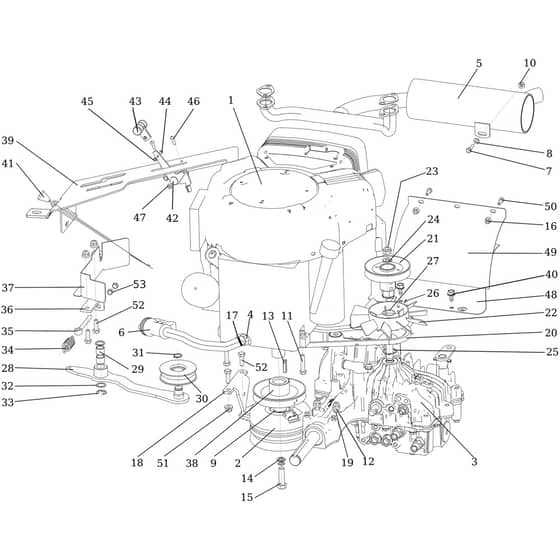

Oleo-Mac APACHE 92 4x4 EVO Parts Diagram

Model Year - 2023

Be the first to review this product

0 product questions

	Part No.	Details
2	EFSGN339242008 Available to backorder	Clutch	£390.00 £325.00
3	EFSGN532991058 Available to backorder	Transmission	£2,481.60 £2,068.00
8	EFSG311210502 Available to backorder	Washer	£0.90 £0.75
9	EFSGS532092208583 Available to backorder	Spacer	£3.90 £3.25
12	EFSG947311210503 Available to backorder	Washer	£0.90 £0.75
13	EFSGN311726101 Available to backorder	Key	£2.08 £1.73
20	EFSGN272731214 Available to backorder	V Belt	£85.42 £71.18
21	EFSGS532933252873 Available to backorder	Pulley	£191.50 £159.58
22	EFSGS532075412033 Available to backorder	Fan	£79.86 £66.55
23	EFSGN311129502 Available to backorder	Nut	£0.90 £0.75
24	EFSGN311210504 Available to backorder	Washer	£0.90 £0.75
26	EFSGN309503575 Available to backorder	Screw	£0.56 £0.47
27	EFSGN273111060 Available to backorder	Ring	£0.56 £0.47
28	EFSGS532913462123 Available to backorder	Support	£102.42 £85.35
30	EFSGN000532003 Available to backorder	Pulley	£19.60 £16.33
33	EFSGN311732009 Available to backorder	Ring	£0.90 £0.75
38	EFSGN532151100 Available to backorder	Pulley (Engine)	£71.76 £59.80
41	EFSGN443612017 Available to backorder	Lever With Cable	£51.08 £42.57
42	EFSGN443900103 Available to backorder	Throttle Lever	£20.14 £16.78
44	EFSGN309231535 Available to backorder	Screw	£0.90 £0.75
45	EFSG311129514 Available to backorder	Nut	£0.90 £0.75
47	EFSGN311129524 Available to backorder	Nut	£0.56 £0.47
51	EFSGN532150290 Available to backorder	Nut	£0.96 £0.80
52	EFSG947309503512 Available to backorder	Screw	£0.90 £0.75
