Allett Stirling 51 Scarifier Cartridge

Name: Allett Stirling 51 Scarifier Cartridge
SKU: allettstirling51scarifiercartridge-group
Price: 0.97 GBP
Availability: InStock

Description

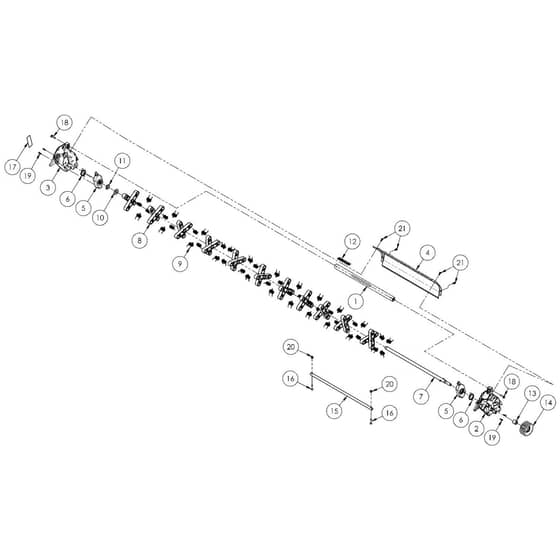

Allett Stirling 51 Cordless Cylinder Mower - Scarifier Cartridge Parts Diagram

Model: STIR51

Motor: 56 Volt Lithium-Ion Battery

Serial Number: 1-21-0001 onward

	Part No.	Details
1	ALF016A75053 Available to backorder	Cassette Handle Assy	£41.52 £34.60
2	ALF016A75001 Available to backorder	Cassette Side L.H	£60.86 £50.72
3	ALF016A75002 In stock	Cassette Side R.H	£60.86 £50.72
4	ALF016A75544 Available to backorder	Delivery Plate	£37.56 £31.30
5	ALF016A75006 Available to backorder	Shield Housing Sub-Assembly	£22.72 £18.93
6	ALF016A75005 Available to backorder	Retaining Snap Ring	£2.59 £2.16

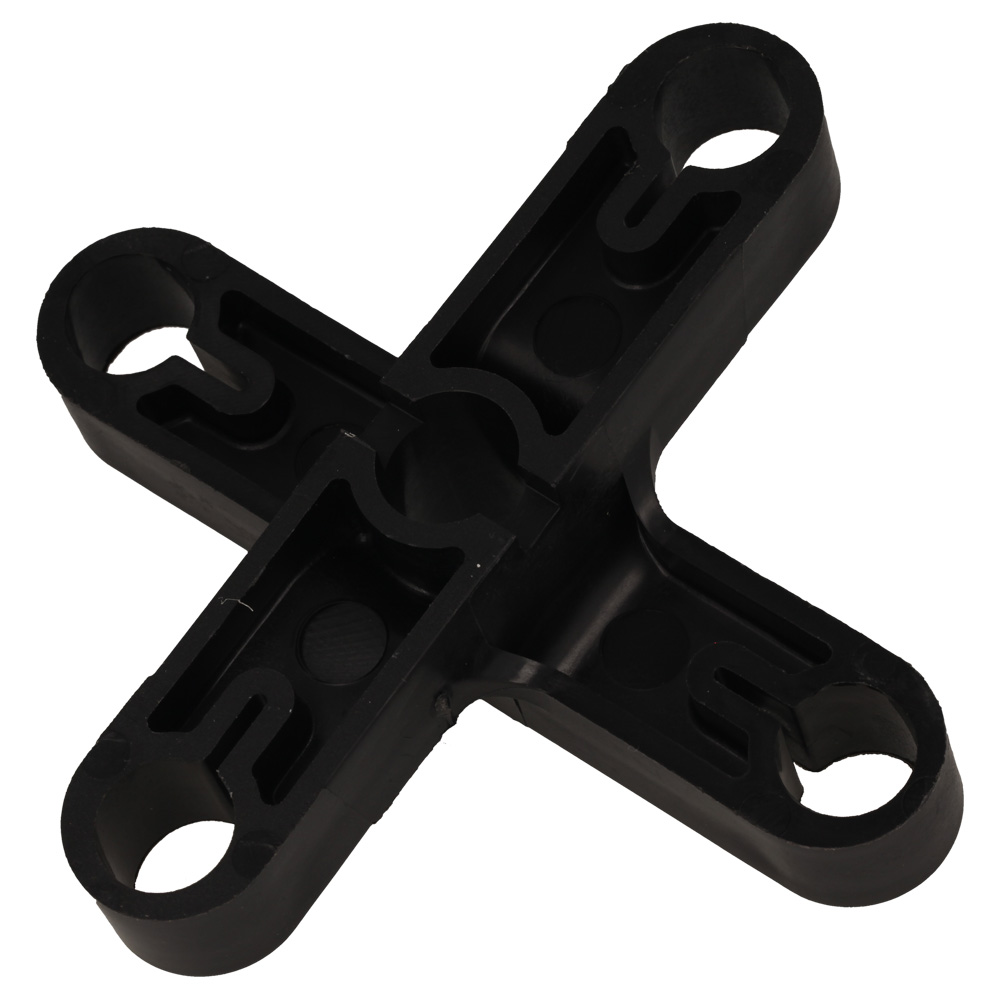

8	ALF016A57926 In stock	Tine Carrier 13	£13.24 £11.03

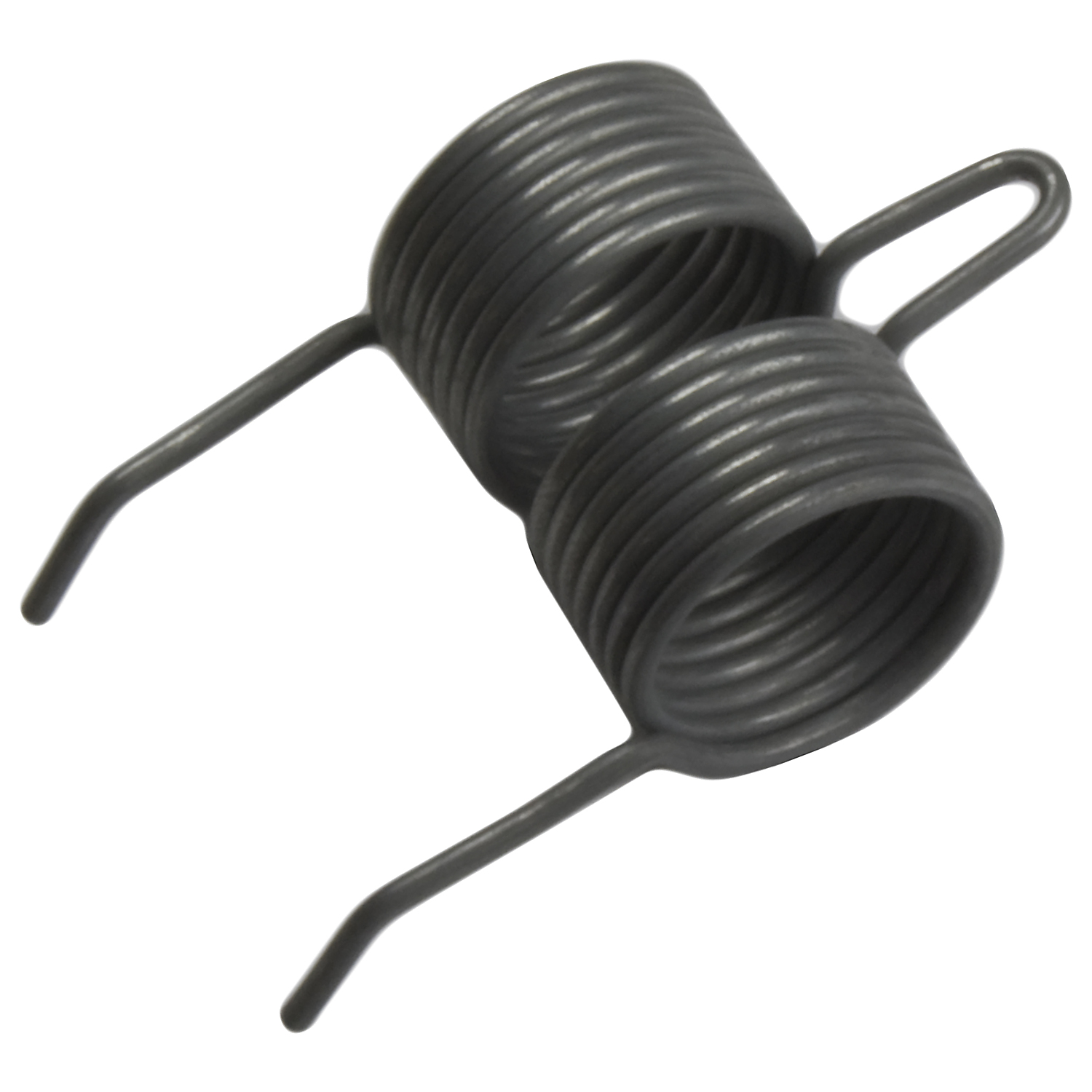

9	ALF016T47920 In stock	Spring 52	£2.77 £2.31
10	ALF016A58725 In stock	Washer 1.1.4 X 45509 X 0.072	£2.57 £2.14
11	ALF016A58860 In stock	Ratchet Plate 16mm	£2.58 £2.15
12	ALF016J10404 Available to backorder	Thrown Object & Blade Warning Decal	£3.53 £2.94
13	ALF016J13548 Available to backorder	Spacer	£9.78 £8.15
14	ALF016J13223 Available to backorder	Cartridge Pulley	£117.53 £97.94
15	ALF016J13177 Available to backorder	Blade Bar	£59.53 £49.61
16	ALSCM635 Available to backorder	M6 X 12 Cap Head	£2.57 £2.14
18	ALF016T49288 Available to backorder	M6X35	£1.16 £0.97
19	ALF016A75003 Available to backorder	Self Cutting Screw 8.16 X 45323	£1.62 £1.35
21	ALF016A57756 In stock	Screw M5 X 12 Taptite	£1.63 £1.36
