Allett Stirling 51 Motor Assembly

Name: Allett Stirling 51 Motor Assembly
SKU: allettstirling51mor-group
Price: 0.4 GBP
Availability: InStock

Part No. allettstirling51mor-group

Description

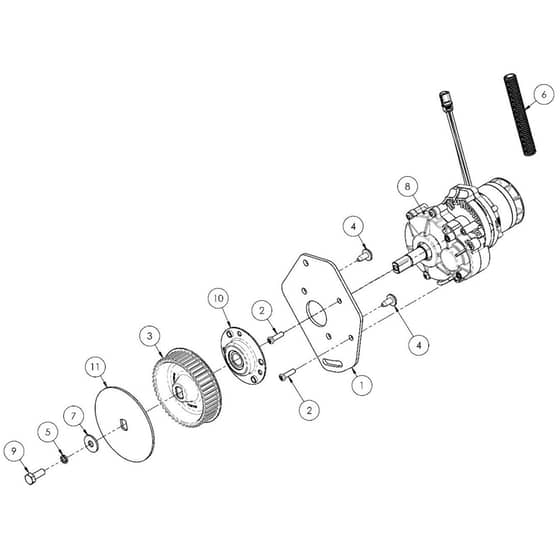

Allett Stirling 51 Cordless Cylinder Mower - Motor Assembly Parts Diagram

Model: STIR51

Motor: 56 Volt Lithium-Ion Battery

Serial Number: 1-21-0001 onward

	Part No.	Details
1	ALF016J13017 Available to backorder	Motor Bracket	£22.01 £18.34
2	ALF016J13294 Available to backorder	Screw 4x16	£0.48 £0.40
3	ALF016J13769 Available to backorder	Motor Pulley	£67.56 £56.30
4	ALF016L35387 In stock	Screw M6x12	£2.76 £2.30
5	ALSWM6 Available to backorder	Spring Washer M6	£0.91 £0.76
6	ALF016J13802 Available to backorder	Cable Conduit	£2.11 £1.76
7	ALWM6G Available to backorder	Washer M6	£1.14 £0.95
8	ALF016J13600 Available to backorder	Motor Assembly	£81.56 £67.97
9	ALSM616 Available to backorder	Screw M6x16	£1.07 £0.89
10	ALF016J13840 Available to backorder	Bearing Housing	£41.84 £34.87
11	ALF016J13768 Available to backorder	Flange Plate	£13.38 £11.15
