Allett Stirling 51 Cylinder Assembly 6 Blade

Name: Allett Stirling 51 Cylinder Assembly 6 Blade
SKU: allettstirling51cylinder6blade-group
Price: 0.99 GBP
Availability: InStock

Part No. allettstirling51cylinder6blade-group

Description

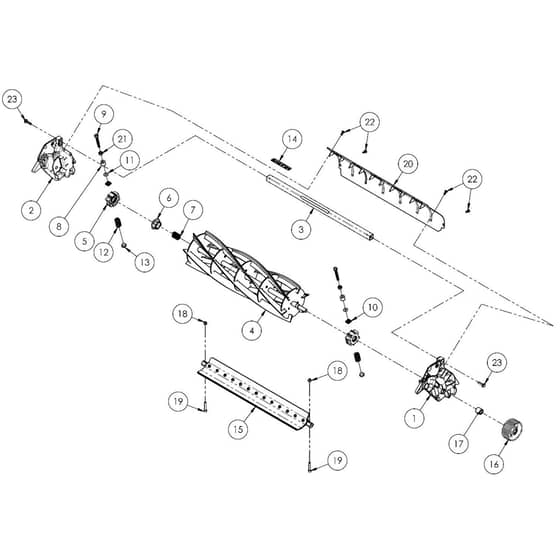

Allett Stirling 51 Cordless Cylinder Mower - Cylinder Assembly 6 Blade Parts Diagram

Model: STIR51

Motor: 56 Volt Lithium-Ion Battery

Serial Number: 1-21-0001 onward

	Part No.	Details
1	ALF016A75001 Available to backorder	Cassette Side L.H	£60.84 £50.70
2	ALF016A75002 In stock	Cassette Side R.H	£62.94 £52.45
3	ALF016A75053 Available to backorder	Cassette Handle Assy	£42.96 £35.80
4	ALF016A58821 Available to backorder	Cylinder Assembly	£309.73 £258.11
5	ALF016A58853 In stock	Bearing Housing S.A	£15.06 £12.55
6	ALF016A58854 In stock	Bearing Shield	£3.78 £3.15
7	ALF016A58856 In stock	Compression Spring	£2.94 £2.45
8	ALF016A57669 In stock	Round Adjuster	£3.96 £3.30
9	ALF016A57713 In stock	Adjuster Screw	£3.67 £3.06
10	ALF016T41057 In stock	Adjuster Square	£3.07 £2.56
11	ALF016T49443 In stock	Washer Ptfe	£2.76 £2.30
12	ALF016T47205 In stock	Compression Spring	£2.94 £2.45
14	ALF016J10404 Available to backorder	Thrown Object & Blade Warning Decal	£3.65 £3.04
15	ALF016J11752 Available to backorder	Bottom Blade (Blade Only)	£179.16 £149.30
15	ALF016J11750 Available to backorder	Blade Assy	£276.36 £230.30
16	ALF016J13223 Available to backorder	Cartridge Pulley	£117.48 £97.90
17	ALF016J13548 Available to backorder	Spacer	£10.12 £8.43
18	ALF016L35388 In stock	Nut M6 Nyloc	£1.19 £0.99
19	ALSCM635 Available to backorder	M6 X 12 Cap Head	£2.66 £2.22
20	ALF016A75881 Available to backorder	Delivery Plate Assy	£125.28 £104.40
21	ALF016L35457 In stock	Nut M8 D.C	£2.76 £2.30
22	ALF016A57756 In stock	Screw M5 X 12 Taptite	£1.76 £1.47
23	ALF016T49288 Available to backorder	M6X35	£1.20 £1.00
