Allett Stirling 43 Drive Side Sub Assembly

Description

Allett Stirling 43 Cordless Cylinder Mower - Drive Side Sub Assembly Parts Diagram

Model: STIR43

Motor: 56 Volt Lithium-Ion Battery

Serial Number: 1-21-0001 onward

	Part No.	Details
1	ALF016J13011 Available to backorder	Side Plate Drive	£341.99 £284.99
2	ALF016J13042 Available to backorder	Drive Guard Mounting Boss	£41.52 £34.60
3	ALF016J13089 Available to backorder	Cartridge Guide Rail	£14.23 £11.86
4	ALF016J13383 Available to backorder	End Plate	£33.82 £28.18
5	ALF016J13386 Available to backorder	Tension Arm Boss	£11.20 £9.33
6	ALF016J13387 Available to backorder	Spacer	£15.24 £12.70

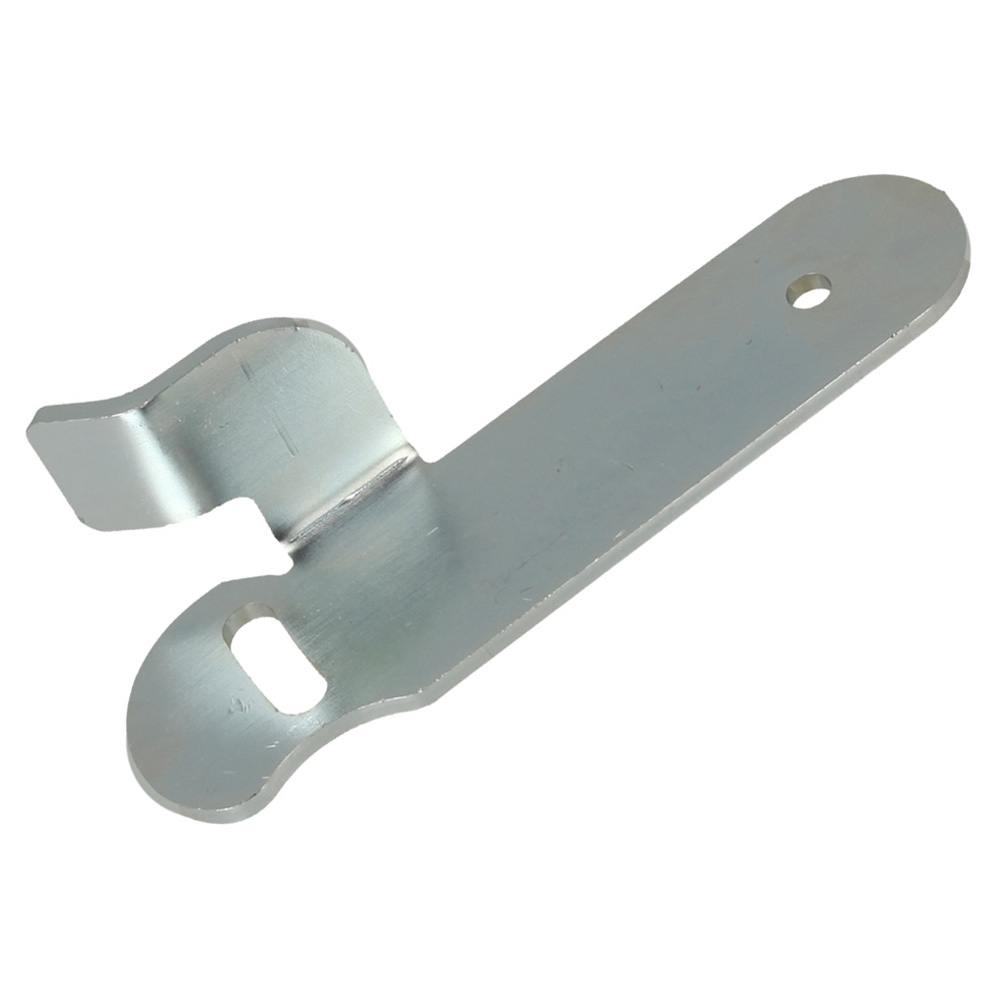

7	ALF016J13388 Available to backorder	Strap	£32.03 £26.69
8	ALF016J13384 Available to backorder	Idler Arm Pivot Bush	£52.31 £43.59
10	ALF016J13398 Available to backorder	Spring	£9.73 £8.11
11	ALF016J13143 Available to backorder	Lever Switch Assembly	£150.60 £125.50
12	ALF016J13405 Available to backorder	Cam Lock Assy	£30.78 £25.65
13	ALF016J13404 Available to backorder	Shim Washer	£2.75 £2.29
15	ALF016J13408 Available to backorder	Bracket	£18.67 £15.56
18	ALF016J13926 Available to backorder	Boss	£27.14 £22.62
19	ALWM6C Available to backorder	Washer M6 Form C	£1.03 £0.86
23	ALNM6_DOME Available to backorder	M6 Nyloc Nut Dome Cap	£1.08 £0.90
24	ALWM5C Available to backorder	Washer M5 Form C	£1.25 £1.04
25	ALF016A57756 In stock	Screw M5 X 12 Taptite	£1.76 £1.47
26	ALF016J13297 Available to backorder	Screw M5 X 16 Taptite	£2.45 £2.04
27	ALWM8A Available to backorder	M8 Flat Washer Form A	£0.80 £0.67
33	ALSM525 Available to backorder	M5 Set Screw X 35	£0.58 £0.48
34	ALSWM5 Available to backorder	Spring Washer M5	£0.61 £0.51
35	ALF016J13418 Available to backorder	Drive Guard Mounting Boss Short	£32.84 £27.37
36	ALWM5 Available to backorder	Washer M5 Form A	£0.74 £0.62
