Allett Buckingham 24H Main Assembly

Name: Allett Buckingham 24H Main Assembly
Brand: Bosch
SKU: Buckingham 24H F0163105421-group
Price: 0.97 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

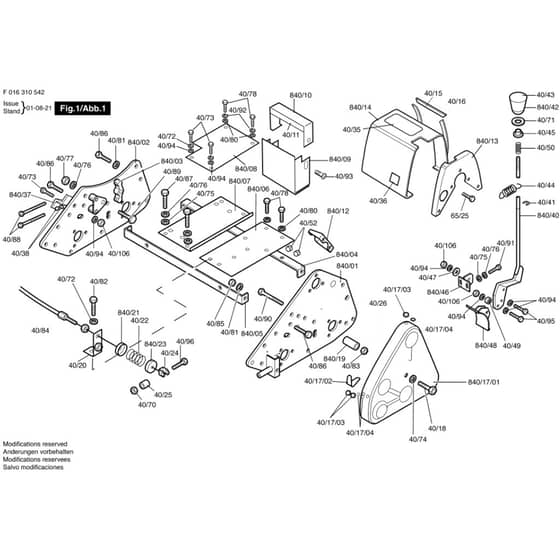

Allett Buckingham 24H Main Assembly Parts Diagram - F0163105421 - Applicability: 00010101 > 99991231

Be the first to review this product

0 product questions

	Part No.	Details
40106	ALF016L11218 Available to backorder	Lock Nut M8	£1.46 £1.22
4011	ALF016L63774 Available to backorder	Suspension Rubber	£4.07 £3.39
4015	ALF016103678 Available to backorder	Sealing Strip	£9.38 £7.82
4016	ALF016L32959 In stock	Edging Strip	£2.02 £1.68
401703	ALF016L16703 Available to backorder	Oil Reservoir	£9.20 £7.67
40170	ALL20319 Available to backorder	Drip Plate	£3.47 £2.89
401704	ALF016T49100 In stock	Set Ring 12mm	£2.70 £2.25
4018	ALF016L20336 In stock	Special Nut 5/16"	£9.20 £7.67
4020	ALF016L66048 Available to backorder	Cable Bracket	£12.61 £10.51
4022	ALF016L09482 Available to backorder	Clutch Spring	£10.34 £8.62
4024	ALF016L66085 Available to backorder	Clevis	£8.40 £7.00
4025	ALL34691 Available to backorder	Spacer	£5.77 £4.81
4026	ALF016L12766 Available to backorder	Edging Strip	£14.75 £12.29
4035	ALF016L61021 Available to backorder	Reference Plate	£21.17 £17.64
4036	ALF016L63200 Available to backorder	Decal	£11.02 £9.18
4038	ALF016L17922 Available to backorder	Grommet	£3.60 £3.00
4041	ALF016L59709 Available to backorder	E Clip	£2.74 £2.28
4043	ALF016L59921 Available to backorder	Decal	£16.18 £13.48
4044	ALF016L36810 Available to backorder	Return Spring	£18.44 £15.37
4045	ALL36813 Available to backorder	Slider	£19.24 £16.03
4047	ALF016L36820 Available to backorder	Eccentric Disc	£16.93 £14.11
4049	ALF016L36826 Available to backorder	Spacer	£7.38 £6.15
4050	ALF016L37756 Available to backorder	Spring	£3.60 £3.00
4052	ALF016L63773 Available to backorder	Plug	£9.38 £7.82
4070	ALF016L59926 Available to backorder	Self-Locking Nut	£2.48 £2.07
4071	ALF016L09685 Available to backorder	Plain Washer	£4.92 £4.10
4072	ALF016L11107 Available to backorder	Spring Washer M8	£1.16 £0.97
4073	ALF016L11301 Available to backorder	Stud Bolt	£1.80 £1.50
4074	ALF016L12635 Available to backorder	Plain Washer	£1.46 £1.22
4075	ALF016L13811 Available to backorder	Plain Washer	£2.58 £2.15
4076	ALF016L18028 Available to backorder	Spring Washer	£1.40 £1.17
4077	ALF016L18048 Available to backorder	Nut 3/8" UNF	£2.58 £2.15
4078	ALF016L18120 In stock	Hex Screw M6	£1.91 £1.59
4080	ALF016L18129 Available to backorder	Plain Washer	£1.48 £1.23
4081	ALF016L18182 Available to backorder	Spring Washer 1/2"	£2.71 £2.26
4082	ALF016L18408 Available to backorder	Screw	£1.28 £1.07
4083	ALF016L18609 Available to backorder	Nut 5/16" UNF	£2.71 £2.26
4084	ALF016L18723 Available to backorder	Lock Nut 1/4"	£1.16 £0.97
4085	ALF016L20239 Available to backorder	Nut 1/2" UNF	£2.58 £2.15
4086	ALF016L20344 Available to backorder	Screw 1/2" UNF	£3.48 £2.90
4087	ALF016L20345 Available to backorder	Screw 3/8" UNF	£1.46 £1.22
4088	ALF016L20375 Available to backorder	Adjuster Screw	£17.88 £14.90
4089	ALF016L20376 Available to backorder	Journal	£28.40 £23.67
4090	ALF016L20388 Available to backorder	Trunnion	£2.29 £1.91
4091	ALF016L20402 Available to backorder	Bolt 3/8" UNF	£2.29 £1.91
4092	ALF016L18185 Available to backorder	Spring Washer 1/4"	£1.16 £0.97
4093	ALF016L35387 In stock	Self-Cutting Screw M6	£2.58 £2.15
4094	ALF016T40590 Available to backorder	Plain Washer	£1.16 £0.97
4095	ALF016W25673 Available to backorder	Trunnion	£1.46 £1.22
4096	ALF016W25710 Available to backorder	Bolt M5	£3.23 £2.69
84001	ALF016L61646 In stock	Side Plate	Was £253.39 £211.16 Special Price £159.65 £133.04
84002	ALF016L63224 Available to backorder	Side Plate Assy R/H	£198.00 £165.00
84003	ALF016L12805 In stock	Locking Lever	£16.39 £13.66
84012	ALF016100714 Available to backorder	Clutch Bracket	£22.06 £18.38
84013	ALF016L65624 Available to backorder	Bracket	£25.61 £21.34
8401701	ALF016L65685 Available to backorder	Chain Cover	£149.96 £124.97
84019	ALF016L12580 Available to backorder	Spacer	£5.80 £4.83
84021	ALF016L22615 Available to backorder	Location Piece	£10.51 £8.76
84023	ALL22614 Available to backorder	Location Piece	£13.24 £11.03
84040	ALF016L63771 Available to backorder	Brake Lever	£104.63 £87.19
84046	ALF016L36817 Available to backorder	Bracket	£43.38 £36.15
84048	ALF016L36822 Available to backorder	Brake Shoe	£84.96 £70.80
