Allett Auto Steer Seat 20 - F016800104

Name: Allett Auto Steer Seat 20 - F016800104
Brand: Bosch
SKU: Auto Steer Seat 20 F016800104-group
Price: 0.98 GBP
Availability: InStock

Part No. Auto Steer Seat 20 F016800104-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

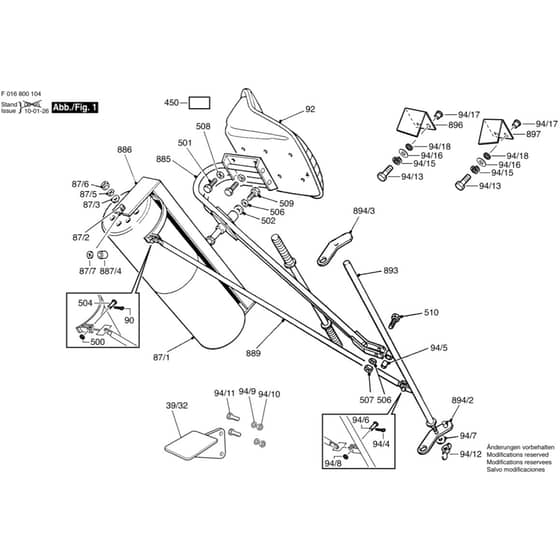

Allett Auto Steer Seat 20 Accessory Parts Diagram - F016800104 - Applicability: 00010101 > 99991231

	Part No.	Details
3932	ALF016L59823 Available to backorder	Brake	£33.82 £28.18
871	ALF016L61153 Available to backorder	Roller Drum	£314.64 £262.20
872	ALF016L20430 Available to backorder	Roller Shaft	£95.64 £79.70
873	ALF016L13237 Available to backorder	Washer	£2.80 £2.33
875	ALF016L18182 Available to backorder	Spring Washer 1/2"	£2.80 £2.33
876	ALF016L20239 Available to backorder	Nut 1/2" UNF	£2.66 £2.22
877	ALF016L65617 Available to backorder	Plain Washer	£16.73 £13.94
90	ALF016L12763 Available to backorder	Bolt	£7.55 £6.29
92	ALF016L13862 Available to backorder	Chair	£324.84 £270.70
945	ALF016L12737 Available to backorder	Bushing	£13.70 £11.42
946	ALF016L10121 Available to backorder	Split Pin	£1.20 £1.00
947	ALF016L12918 Available to backorder	Plain Washer	£2.71 £2.26
948	ALF016L13288 Available to backorder	Clevis	£1.20 £1.00
949	ALF016L18181 Available to backorder	Locking Washer 5/16"	£1.97 £1.64
9410	ALF016L20303 Available to backorder	Nut 5/16" UNF	£2.66 £2.22
9411	ALF016L20407 Available to backorder	Screw 5/16" UNF	£1.20 £1.00
9413	ALF016W25495 Available to backorder	Screw	£4.80 £4.00
9415	ALF016L63569 Available to backorder	Spring Washer	£1.18 £0.98
9416	ALF016L63198 Available to backorder	Washer	£3.34 £2.78
9417	ALF016L63180 Available to backorder	Washer	£20.12 £16.77
9418	ALF016L63817 Available to backorder	Plain Washer	£5.47 £4.56
450	ALF016A75850 Available to backorder	Decal	£9.35 £7.79
501	ALF016L11301 Available to backorder	Stud Bolt	£1.87 £1.56
506	ALF016L18028 Available to backorder	Spring Washer	£1.45 £1.21
507	ALF016L18048 Available to backorder	3/8" Nut	£2.66 £2.22
509	ALF016L20402 Available to backorder	Bolt 3/8" UNF	£2.38 £1.98
510	ALF016L20475 Available to backorder	Screw	£1.87 £1.56
