AL-KO Top Tec 2700 - 118174 - Main Assembly: before 10.2000

Name: AL-KO Top Tec 2700 - 118174 - Main Assembly: before 10.2000
SKU: AK118174_1_before_10_2000-group
Price: 0.53 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Top Tec 2700 - 118174 - Main Assembly: before 10.2000

Description

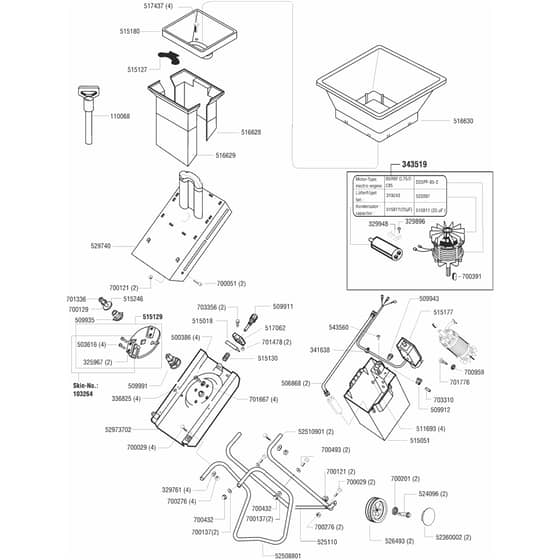

AL-KO Top Tec 2700 - 118174 - Main Assembly - Parts Diagram

before 10.2000

Be the first to review this product

0 product questions

	Part No.	Details
325967	AK517828 Available to backorder	Use Ak517828	£12.78 £10.65
329761	AK329761 Available to backorder	Curved Washer	£1.62 £1.35
329948	AK329948 Available to backorder	Iso-Body Element 2-Pole	£1.70 £1.42
336825	AK336825 Available to backorder	Screw	£1.32 £1.10
341638	AK341638 Available to backorder	Clip	£0.84 £0.70
500386	AK450417 Available to backorder	Use Ak450417	£0.64 £0.53
503616	AK503616 In stock	Blade Screw	£1.26 £1.05
509911	AK509911 Available to backorder	Handscrew	£5.42 £4.52
509935	AK509935 Available to backorder	Retainer	£6.98 £5.82
509943	AK509943 Available to backorder	Connector	£1.80 £1.50
511693	AK468878 Available to backorder	Use Ak468878	£0.78 £0.65
515018	AK515018 Available to backorder	Bracket	£2.88 £2.40
515051	AK515051 Available to backorder	Housing	£21.58 £17.98
515130	AK515130 Available to backorder	Spring	£1.70 £1.42
515246	AK51524630 Available to backorder	Use Ak51524630	£1.86 £1.55
515811	AK515811 Available to backorder	Capacitor 25Uf	£29.23 £24.36
524096	AK524096 In stock	Wheel Bolt	£3.34 £2.78
526493	AK526493 Available to backorder	Wheel	£10.34 £8.62
529740	AK529740 Available to backorder	Cover	£107.04 £89.20
543560	AK543560 Available to backorder	Screw 10mm	£0.96 £0.80
700029	AK700029 Available to backorder	Screw	£0.70 £0.58
700051	AK700051 Available to backorder	Screw M8x20	£0.68 £0.57
700121	AK704537 In stock	Use Ak704537	£1.04 £0.87
700129	AK700129 Available to backorder	Spring Washer	£1.10 £0.92
700137	AK700137 In stock	Washer M6	£0.97 £0.81
700201	AK700201 Available to backorder	Grip Washer M8	£0.77 £0.64
700276	AK704536 Out of stock	Use Ak704536	£0.97 £0.81
700391	AK700391 Available to backorder	Keyway	£1.06 £0.88
700432	AK700432 Available to backorder	Dome Nut M6	£1.20 £1.00
700493	AK700493 Available to backorder	Bolt	£1.18 £0.98
700959	AK700959 Available to backorder	Washer	£0.70 £0.58
701336	AK701336 Available to backorder	Bolt 10x35	£1.52 £1.27
701478	AK701478 Available to backorder	Dome Nut M5	£0.70 £0.58
701667	AK701667 Available to backorder	Washer	£0.70 £0.58
701776	AK701776 Available to backorder	Screw	£0.70 £0.58
703310	AK703310 Available to backorder	Pin	£0.84 £0.70
52360002	AK52360002 Available to backorder	Wheel Cap	£2.42 £2.02
52973702	AK52973702 Available to backorder	Housing	£72.26 £60.22
