AL-KO Top Kraft 2500 R - 118470 - Main Assembly

Name: AL-KO Top Kraft 2500 R - 118470 - Main Assembly
SKU: AK118470_1-group
Price: 0.48 GBP
Availability: InStock

Part No. AK118470_1-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Top Kraft 2500 R - 118470 - Main Assembly

Description

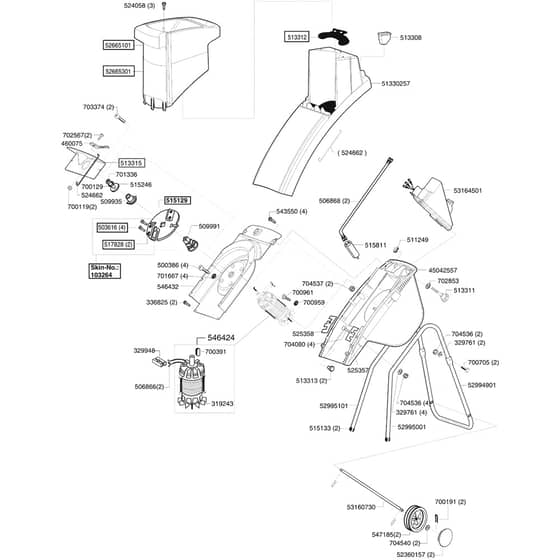

AL-KO Top Kraft 2500 R - 118470 - Main Assembly - Parts Diagram

	Part No.	Details
329761	AK329761 Available to backorder	Curved Washer	£1.76 £1.47
329948	AK329948 Available to backorder	Iso-Body Element 2-Pole	£1.86 £1.55
336825	AK336825 Available to backorder	Screw	£1.34 £1.12
500386	AK450417 In stock	Use Ak450417	£0.84 £0.70
503616	AK503616 In stock	Blade Screw	£1.55 £1.29
506866	AK506866 Available to backorder	Motor Wires	£4.20 £3.50
509935	AK509935 Available to backorder	Retainer	£7.20 £6.00
511249	AK511249 Available to backorder	Grip Fix Washer - 7mm	£1.44 £1.20
513308	AK460362 Available to backorder	Use Ak460362	£4.80 £4.00
513311	AK51331110 Available to backorder	Use Ak51331110	£5.64 £4.70
513312	AK513312 Available to backorder	Rubber Flap	£4.68 £3.90
513313	AK460958 In stock	Use Ak460958	£1.30 £1.08
513315	AK460098 Available to backorder	Use Ak460098	£31.08 £25.90
515246	AK51524630 In stock	Use Ak51524630	£1.90 £1.58
515811	AK515811 Available to backorder	Capacitor 25Uf	£26.88 £22.40
517828	AK517828 Available to backorder	Blade	£13.56 £11.30
524058	AK450742 Available to backorder	Use Ak450742	£0.82 £0.68
524662	AK524662 Available to backorder	Bar	£2.03 £1.69
543550	AK543550 Available to backorder	Screw	£1.42 £1.18
547185	AK547185 Available to backorder	Wheel	£14.88 £12.40
700119	AK700119 Available to backorder	Nut M5	£1.85 £1.54
700129	AK700129 Available to backorder	Spring Washer	£1.32 £1.10
700191	AK700191 Available to backorder	Pin	£0.58 £0.48
700391	AK700391 Available to backorder	Keyway	£1.27 £1.06
700705	AK700705 Available to backorder	Screw M6x35	£0.82 £0.68
700959	AK700959 Available to backorder	Washer	£0.84 £0.70
700961	AK700961 Available to backorder	Screw	£0.84 £0.70
701336	AK701336 Available to backorder	Bolt 10x35	£1.68 £1.40
701667	AK701667 Available to backorder	Washer	£0.84 £0.70
702853	AK702853 Available to backorder	Washer M8	£0.84 £0.70
703374	AK700963 Available to backorder	Use Ak700963	£1.32 £1.10
704080	AK704080 Available to backorder	Screw	£1.15 £0.96
704536	AK704536 Out of stock	Nut M6	£1.13 £0.94
704537	AK704537 In stock	Lock Nut M8	£1.15 £0.96
704540	AK704540 Available to backorder	Washer M12	£0.84 £0.70
51330257	AK51330257 Available to backorder	Upper Housing	£44.04 £36.70
52360157	AK52360140 Available to backorder	Wheel Cap	£2.77 £2.31
52665101	AK52665101 Available to backorder	Hopper Top	£25.80 £21.50
52665301	AK52665301 Available to backorder	Housing	£18.12 £15.10
53164501	AK46023401 Available to backorder	Use Ak46023401	£85.08 £70.90
