AL-KO T23-125.4 HD Powerline - 119547 - Drive: 2.2014 - 9.2014

Description

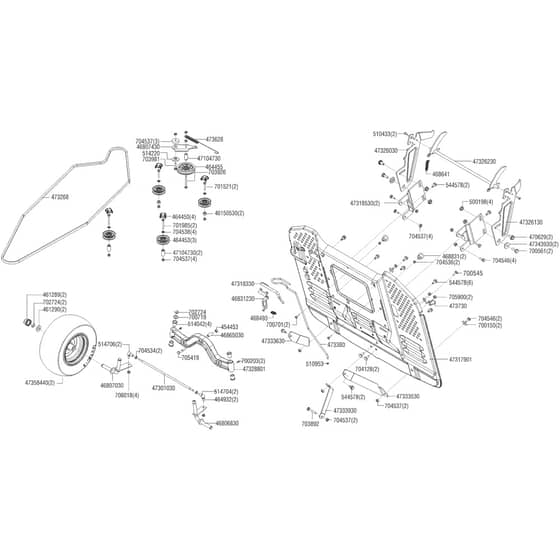

AL-KO T23-125.4 HD Powerline - 119547 - Drive - Parts Diagram

2.2014 - 9.2014

Be the first to review this product

0 product questions

	Part No.	Details
454453	AK454453 Available to backorder	Nut M12	£0.84 £0.70
461289	AK461289 Available to backorder	Hub Cap	£4.60 £3.83
461290	AK461290 Available to backorder	Washer	£2.08 £1.73
464450	AK464450 Available to backorder	Cover	£1.66 £1.38
464453	AK464453 Available to backorder	V-Pulley Small	£21.47 £17.89
464455	AK464455 Available to backorder	Flat Pulley	£36.54 £30.45
464932	AK464932 Available to backorder	Ball Joint	£7.54 £6.28
468493	AK468493 Available to backorder	Spring	£1.52 £1.27
468641	AK468641 Available to backorder	Spring	£1.84 £1.53
468831	AK468831 Available to backorder	Nut	£2.02 £1.68
470629	AK470629 Available to backorder	Screw	£0.84 £0.70
473268	AK473268 Available to backorder	Belt	£51.32 £42.77
473380	AK473380 Available to backorder	Dump Valve Rod	£9.00 £7.50
473628	AK473628 Available to backorder	Spring	£6.62 £5.52
473730	AK476312 Available to backorder	Use Ak476312	£4.22 £3.52
500198	AK500198 Available to backorder	Bush	£1.44 £1.20
510433	AK510433 Available to backorder	Allen Screw 6x12	£1.66 £1.38
510953	AK510953 Available to backorder	Fastener M6	£0.84 £0.70
514042	AK514042 Available to backorder	Bush	£9.12 £7.60
514220	AK514220 Available to backorder	Spacer	£4.58 £3.82
514704	AK514704 Available to backorder	Spring	£0.70 £0.58
514706	AK514706 Available to backorder	Ball Joint	£8.58 £7.15
544578	AK544578 Available to backorder	Screw	£1.62 £1.35
700150	AK700150 In stock	Spacer M8	£0.84 £0.70
700203	AK700203 Available to backorder	Grease Nipple	£0.84 £0.70
700545	AK700545 Available to backorder	Bolt M8x16	£0.68 £0.57
700561	AK700561 Available to backorder	Screw M10x25	£1.18 £0.98
700701	AK700701 Available to backorder	Screw M6x25	£0.70 £0.58
700719	AK700719 Available to backorder	Washer 22mm	£1.52 £1.27
701521	AK701521 Available to backorder	Screw M8x40	£1.24 £1.03
701985	AK703550 Available to backorder	Ak701985	£2.06 £1.72
702724	AK702724 In stock	E-Clip	£0.37 £0.31
703892	AK703892 Available to backorder	Screw	£2.96 £2.47
703926	AK703926 Available to backorder	Screw	£1.62 £1.35
704128	AK704128 Available to backorder	Screw	£3.16 £2.63
704534	AK704534 Available to backorder	Nut M10	£0.68 £0.57
704536	AK704536 Out of stock	Nut M6	£0.97 £0.81
704537	AK704537 In stock	Lock Nut M8	£1.04 £0.87
704538	AK704538 In stock	Washer M8	£0.98 £0.82
704546	AK704546 Available to backorder	Screw M8x20	£0.72 £0.60
705419	AK705419 Available to backorder	Bolt - Axle	£1.70 £1.42
705900	AK705900 Available to backorder	Nut	£0.70 £0.58
706018	AK706018 Available to backorder	Nut	£0.68 £0.57
46150530	AK46150530 Available to backorder	Case	£5.06 £4.22
46806830	AK46806830 Available to backorder	Knuckle L/H	£30.46 £25.38
46807030	AK46807030 Available to backorder	Knuckle R/H	£29.14 £24.28
46807430	AK46807430 Available to backorder	Lever	£4.26 £3.55
46831230	AK46831230 Available to backorder	Bracket	£3.34 £2.78
46865030	AK468650 Available to backorder	Ak46865030	£2.88 £2.40
47104730	AK471047 Available to backorder	Use Ak471047	£3.22 £2.68
47301030	AK47301030 Available to backorder	Tie Rod	£16.12 £13.43
47317901	AK47317901 Available to backorder	Rear Panel	£77.18 £64.32
47318330	AK47318330 Available to backorder	Box Switch Lever	£148.56 £123.80
47318530	AK47318530 Available to backorder	Mount Plate	£153.96 £128.30
47326030	AK47326030 Available to backorder	Mounting Arm Right	£20.98 £17.48
47326130	AK47326130 Available to backorder	Mounting Arm Left	£66.80 £55.67
47326230	AK47326230 Available to backorder	Lock Bar	£16.94 £14.12
47328801	AK476704 Available to backorder	Use Ak476704	£258.72 £215.60
47333930	AK47333930 Available to backorder	Support Bracket	£9.20 £7.67
47343930	AK47343930 Available to backorder	Bush	£5.28 £4.40
47358440	AK457688 Available to backorder	Wheel	£122.78 £102.32
