AL-KO T23-125.4 HD Powerline - 119547 - Deck: 2.2014 - 9.2014

Description

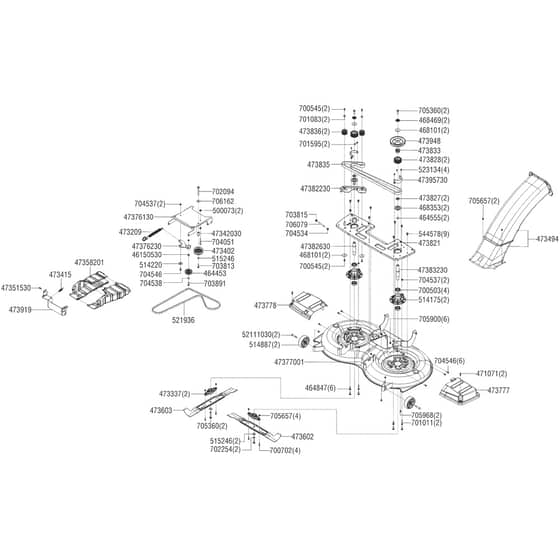

AL-KO T23-125.4 HD Powerline - 119547 - Deck - Parts Diagram

2.2014 - 9.2014

Be the first to review this product

0 product questions

	Part No.	Details
464453	AK464453 Available to backorder	V-Pulley Small	£21.47 £17.89
464555	AK464555 Available to backorder	Seal	£1.04 £0.87
464847	AK458568 In stock	Use Ak521281	£2.03 £1.69
468101	AK468101 Available to backorder	Washer	£2.02 £1.68
468353	AK468353 Available to backorder	Washer	£1.70 £1.42
468469	AK468469 Available to backorder	Washer	£2.56 £2.13
471071	AK471071 Available to backorder	Screw M6x25	£0.84 £0.70
473209	AK473209 Available to backorder	Spring - Tensioner Pulley - L x 157 No Rubber	£7.84 £6.53
473337	AK473337 In stock	Blade Boss	£24.53 £20.44
473402	AK473402 Available to backorder	Pulley	£21.92 £18.27
473415	AK473415 Available to backorder	Spring	£3.04 £2.53
473494	AK473494 Available to backorder	Chute	£78.54 £65.45
473602	AK473602 In stock	Blade L/H	£58.14 £48.45
473603	AK473603 In stock	Blade R/H	£58.14 £48.45
473777	AK473777 Available to backorder	Belt Cover L/H	£15.10 £12.58
473778	AK473778 Available to backorder	Belt Cover R/H	£31.06 £25.88
473821	AK473821 Available to backorder	6170-701-5110-A Bearing Plate Mower Sy 125	£0.80 £0.67
473827	AK47382730 Available to backorder	Nla - 6170-702-1710-A Spacer Ring Mower Sy	£1.86 £1.55
473828	AK458597 Available to backorder	Pulley	£45.76 £38.13
473833	AK46810210 Available to backorder	Bush	£22.32 £18.60
473835	AK473835 Available to backorder	Timing Belt	£103.32 £86.10
473836	AK458596 Available to backorder	Pulley Timing When Nil Ak458596	£35.96 £29.97
473948	AK473948 Available to backorder	Pulley	£31.52 £26.27
500073	AK500073 In stock	Nut	£1.28 £1.07
514175	AK514175 Available to backorder	Bearing Block	£29.08 £24.23
514220	AK514220 Available to backorder	Spacer	£4.58 £3.82
514887	AK514887 Available to backorder	Deck Wheel	£17.52 £14.60
515246	AK51524630 Available to backorder	Use Ak51524630	£1.86 £1.55
521936	AK521936 Available to backorder	Drive Belt	£57.36 £47.80
523134	AK523134 Available to backorder	Screw M6x12 St	£0.68 £0.57
544578	AK544578 Available to backorder	Screw	£1.62 £1.35
700503	AK476634 Available to backorder	Use Ak476634	£9.89 £8.24
700545	AK700545 Available to backorder	Bolt M8x16	£0.68 £0.57
700702	AK700702 In stock	Screw M6x25	£0.91 £0.76
701011	AK701011 Available to backorder	Screw M8x50	£1.46 £1.22
701083	AK701083 Available to backorder	Washer	£0.68 £0.57
701595	AK701595 In stock	Key	£1.28 £1.07
702094	AK702094 Available to backorder	Screw M10x90	£2.38 £1.98
702254	AK702254 Available to backorder	Washer M10 (Alt Use Ak700202)	£0.98 £0.82
703813	AK703813 Available to backorder	Nut - Check For Unf 10x1 Order Ak706018	£0.68 £0.57
703815	AK703815 Available to backorder	Nut	£3.98 £3.32
703891	AK703891 Available to backorder	Screw	£3.90 £3.25
704051	AK704051 Available to backorder	Screw	£3.20 £2.67
704534	AK704534 Available to backorder	Nut M10	£0.68 £0.57
704537	AK704537 In stock	Lock Nut M8	£1.04 £0.87
704538	AK704538 In stock	Washer M8	£0.98 £0.82
704546	AK704546 Available to backorder	Screw M8x20	£0.72 £0.60
705360	AK705360 In stock	Screw M10 Fine x 35	£2.64 £2.20
705657	AK705657 Available to backorder	Flange Nyloc Nut M6	£1.12 £0.93
705900	AK705900 Available to backorder	Nut	£0.70 £0.58
705968	AK705968 Available to backorder	Screw M6x15	£0.72 £0.60
706079	AK706079 Available to backorder	Screw	£1.86 £1.55
706162	AK31691330 Available to backorder	Use Ak31691330	£2.70 £2.25
46150530	AK46150530 Available to backorder	Case	£5.06 £4.22
47340301	AK47340301 Available to backorder	Bracket	£19.86 £16.55
47342030	AK47342030 Available to backorder	Spacer	£23.72 £19.77
47351530	AK473515 Available to backorder	Ak47351530	£3.14 £2.62
47358201	AK47358201 In stock	Guard	£31.55 £26.29
47376130	AK47376130 Available to backorder	Plate	£255.36 £212.80
47376230	AK47376230 Available to backorder	Plate	£236.16 £196.80
47377001	AK47377001 Available to backorder	Deck Shell Black	£459.60 £383.00
47382230	AK47382230 Available to backorder	Adjuster Plate	£38.16 £31.80
47382630	AK47382630 Available to backorder	Blade Shaft	£32.88 £27.40
47383230	AK47383230 Available to backorder	Blade L/H Shaft	£34.94 £29.12
47395730	AK47395730 Available to backorder	Pulley Bracket (Deep)	£13.68 £11.40
52111030	AK521110 In stock	Wheel Bolt	£7.87 £6.56
