AL-KO T20-105.5 HDE V2 - 127137 - Deck Lift: from 5.2015

Description

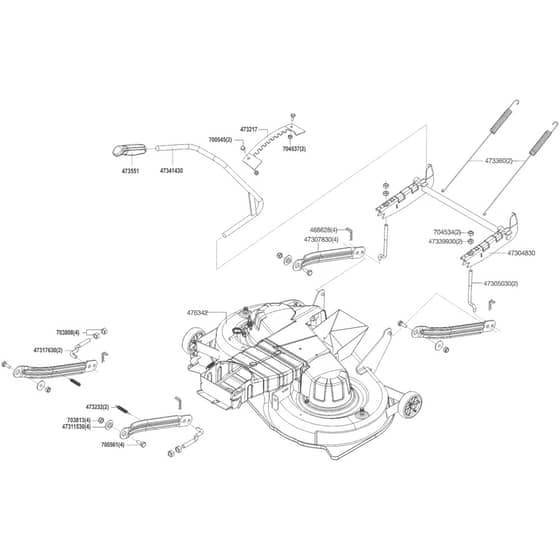

AL-KO T20-105.5 HDE V2 - 127137 - Deck Lift - Parts Diagram

from 5.2015

	Part No.	Details
468628	AK468628 Available to backorder	Spring Plug	£1.98 £1.65
473217	AK473217 Available to backorder	Screening Adj	£8.04 £6.70
473232	AK473232 Available to backorder	Spring Front Black	£2.96 £2.47
473360	AK473360 Available to backorder	Spring	£8.52 £7.10
473551	AK473551 Available to backorder	Grip For Height Adjustment	£10.32 £8.60
476342	AK476342 Available to backorder	Deck 105cm Complete Deck	£571.62 £476.35
700545	AK700545 Available to backorder	Bolt M8x16	£0.82 £0.68
700561	AK700561 Available to backorder	Screw M10x25	£1.42 £1.18
703813	AK703813 Available to backorder	Nut - Check For Unf 10x1 Order Ak706018	£0.84 £0.70
704534	AK704534 Available to backorder	Nut M10	£0.82 £0.68
704537	AK704537 In stock	Lock Nut M8	£1.15 £0.96
47305030	AK47305030 Available to backorder	Deck Hanger	£8.76 £7.30
47307830	AK47307830 Available to backorder	Swingarm	£14.52 £12.10
47311530	AK473115 Available to backorder	Use Ak473115	£2.75 £2.29
47317630	AK47317630 Available to backorder	Arm	£6.84 £5.70
47339930	AK473399 Available to backorder	Use Ak473399	£2.21 £1.84
47341430	AK47341430 Available to backorder	Height Adj	£29.64 £24.70
