AL-KO T20-105.4 HDE Powerline - 119352 - Wiring Loom: 9.2014 - 9.2016

Name: AL-KO T20-105.4 HDE Powerline - 119352 - Wiring Loom: 9.2014 - 9.2016
SKU: AK119352_9_9_2014_9_2016-group
Price: 0.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO T20-105.4 HDE Powerline - 119352 - Wiring Loom: 9.2014 - 9.2016

Description

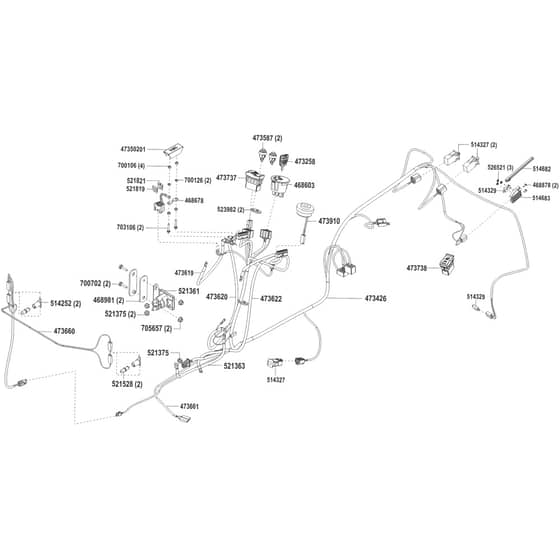

AL-KO T20-105.4 HDE Powerline - 119352 - Wiring Loom - Parts Diagram

9.2014 - 9.2016

Be the first to review this product

0 product questions

	Part No.	Details
468603	AK468603 In stock	Ignition Switch	£35.81 £29.84
468678	AK468678 Available to backorder	Fuse 150A	£1.10 £0.92
468878	AK468878 Available to backorder	Screw	£0.78 £0.65
468981	AK468981 Available to backorder	Insulating Plate	£1.02 £0.85
473258	AK476286 In stock	Ak473258	£7.01 £5.84
473426	AK473426 Available to backorder	Wiring Loom	£149.26 £124.38
473587	AK473587 Available to backorder	Switch - Reverse	£12.64 £10.53
473619	AK473619 Available to backorder	Wire	£13.08 £10.90
473620	AK473620 Available to backorder	Loom	£13.26 £11.05
473622	AK473622 Available to backorder	Battery Cable Engine Block Ha	£19.64 £16.37
473660	AK493098 Available to backorder	Lighting Harness	£11.00 £9.17
473661	AK473661 Available to backorder	Adapter	£8.10 £6.75
473738	AK473738 Available to backorder	Switch - Electric Tip	£27.64 £23.03
473910	AK473910 Available to backorder	Buzzer (New Style)	£11.42 £9.52
514252	AK514252 Available to backorder	Bulb Holder	£8.78 £7.32
514329	AK514329 Available to backorder	Switch	£17.27 £14.39
514682	AK493511 Available to backorder	Use Ak493511	£6.20 £5.17
514683	AK521339 Available to backorder	Ak514683	£15.50 £12.92
521361	AK521361 In stock	Tractor Solenoid	£33.52 £27.93
521363	AK521363 Available to backorder	Cable	£10.34 £8.62
521375	AK521375 Available to backorder	Nut	£0.68 £0.57
521528	AK521528 Available to backorder	Bulb - Halogen 10 Watt	£11.68 £9.73
521819	AK521819 Available to backorder	Fuse 15A	£2.38 £1.98
521821	AK521821 Available to backorder	Fuse 10A	£2.36 £1.97
523982	AK523982 Available to backorder	Strap Cable Tie 200x4.8	£0.34 £0.28
526521	AK526521 Available to backorder	Push Fix 2.5mm	£0.70 £0.58
700106	AK700106 Available to backorder	Nut	£0.84 £0.70
700702	AK700702 In stock	Screw M6x25	£0.91 £0.76
703106	AK703106 Available to backorder	Screw	£0.70 £0.58
705657	AK705657 Available to backorder	Flange Nyloc Nut M6	£1.12 £0.93
47350201	AK47350201 Available to backorder	Cover	£1.52 £1.27
