AL-KO T20-102 HDE Powerline - 118871 - Body Work And Seat: from 10.2007

Name: AL-KO T20-102 HDE Powerline - 118871 - Body Work And Seat: from 10.2007
SKU: AK118871_1_from_10_2007-group
Price: 0.58 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO T20-102 HDE Powerline - 118871 - Body Work And Seat: from 10.2007

Description

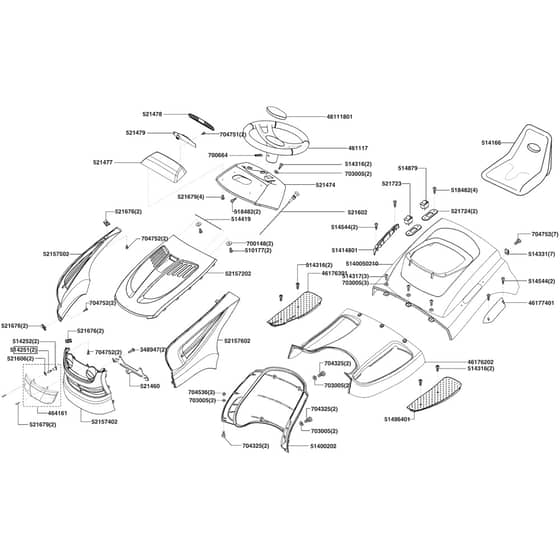

AL-KO T20-102 HDE Powerline - 118871 - Body Work And Seat - Parts Diagram

from 10.2007

Be the first to review this product

0 product questions

	Part No.	Details
348947	AK470375 Available to backorder	Screw	£0.70 £0.58
461117	AK461117 Available to backorder	Steering Wheel	£44.96 £37.47
464161	AK464161 Available to backorder	Lamp	£63.48 £52.90
510177	AK526611 Available to backorder	Screw 14mm	£1.09 £0.91
514166	AK514166 Available to backorder	Seat	£118.54 £98.78
514251	AK521528 Available to backorder	Use Ak521528	£11.68 £9.73
514252	AK514252 Available to backorder	Bulb Holder	£8.78 £7.32
514316	AK514316 Available to backorder	Nla - Screw	£1.18 £0.98
514317	AK514317 Available to backorder	Screw	£1.28 £1.07
514331	AK514331 Available to backorder	Nut	£1.20 £1.00
514544	AK514544 Available to backorder	Screw	£0.84 £0.70
514879	AK514879 In stock	Switch - Latching	£45.38 £37.82
518482	AK518482 Available to backorder	Screw 18mm	£0.84 £0.70
521460	AK521460E Available to backorder	Bracket	£11.48 £9.57
521477	AK521477 Available to backorder	Cover	£18.32 £15.27
521478	AK521478 Available to backorder	Strip	£35.64 £29.70
521479	AK521479 Available to backorder	Dash	£220.08 £183.40
521602	AK521602 Available to backorder	Choke Cable	£26.64 £22.20
521606	AK521606 Available to backorder	Clip	£1.04 £0.87
521676	AK521676 Available to backorder	Nut	£1.86 £1.55
521679	AK521679 Available to backorder	Screw	£1.18 £0.98
521723	AK521723 Available to backorder	Switch - Non-Latching	£40.22 £33.52
521724	AK521724 Available to backorder	Cover	£3.42 £2.85
700148	AK700148 In stock	Washer M6	£0.79 £0.66
700664	AK700664 Available to backorder	Pin	£1.62 £1.35
704325	AK700553 In stock	Use Ak700553	£0.72 £0.60
704536	AK704536 Out of stock	Nut M6	£0.97 £0.81
704752	AK468569 Available to backorder	Use Ak468569	£1.25 £1.04
46111801	AK46111802 Available to backorder	Cap	£4.16 £3.47
46176202	AK51400402 Available to backorder	Panel	£77.18 £64.32
46176301	AK46176301 Available to backorder	Foot Matt R/H	£21.38 £17.82
46177401	AK46177401 Available to backorder	Cover	£31.80 £26.50
51400202	AK51400202 Available to backorder	Lower Section	£65.50 £54.58
51414801	AK521085 Available to backorder	Use Ak521085	£15.92 £13.27
51496401	AK51496401 Available to backorder	Foot Matt L/H	£18.50 £15.42
52157402	AK52157302 Available to backorder	Bonnet	£49.49 £41.24
52157502	AK52157502 Available to backorder	R/H Bonnet Piece	£46.21 £38.51
52157602	AK52157602 Available to backorder	Side Piece L/H	£46.21 £38.51
2147483647	AK52142502 Available to backorder	Use Ak52142502	£92.44 £77.03
