AL-KO T20-102 HDE-MK - 118708 - Transmission: from 1.2006

Name: AL-KO T20-102 HDE-MK - 118708 - Transmission: from 1.2006
SKU: AK118708_3_from_1_2006-group
Price: 0.31 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO T20-102 HDE-MK - 118708 - Transmission: from 1.2006

Description

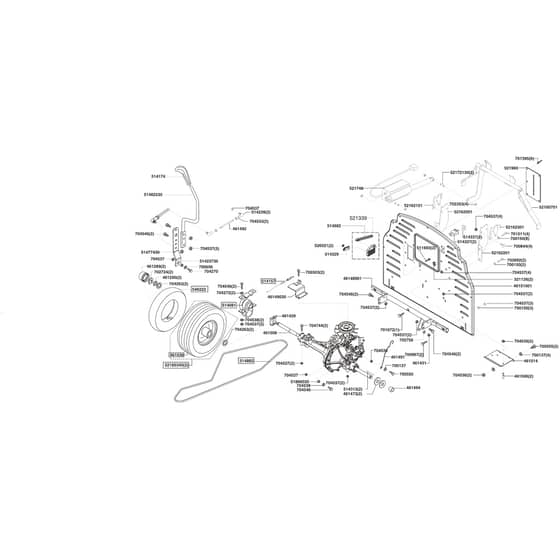

AL-KO T20-102 HDE-MK - 118708 - Transmission - Parts Diagram

from 1.2006

Be the first to review this product

0 product questions

	Part No.	Details
321126	AK321126 Available to backorder	Nut	£0.91 £0.76
461289	AK461289 Available to backorder	Hub Cap	£4.60 £3.83
461290	AK461290 Available to backorder	Washer	£2.08 £1.73
461429	AK461429 Available to backorder	Plate	£5.94 £4.95
461431	AK461431 Available to backorder	Nut	£0.70 £0.58
461473	AK461473 Available to backorder	Disc	£9.82 £8.18
461491	AK461491 Available to backorder	Rod	£7.80 £6.50
461492	AK46149230 Available to backorder	Use Ak46149230	£6.78 £5.65
461494	AK46149430 Available to backorder	Use Ak46149430	£4.90 £4.08
461506	AK461506 Available to backorder	Bolt	£1.86 £1.55
461536	AK471020 Available to backorder	Use Ak471020	£88.58 £73.82
511693	AK468878 Available to backorder	Use Ak468878	£0.78 £0.65
514081	AK514081 Available to backorder	Bearing Assembly	£31.88 £26.57
514157	AK514157 Available to backorder	Trans Brake Cable	£32.28 £26.90
514174	AK514174 Available to backorder	Knob	£8.84 £7.37
514239	AK514239 Available to backorder	Ball Joint	£8.74 £7.28
514313	AK514313 In stock	Key	£1.49 £1.24
514329	AK514329 Available to backorder	Switch	£17.27 £14.39
514337	AK514337 Available to backorder	Cap	£4.60 £3.83
514682	AK493511 Available to backorder	Use Ak493511	£6.20 £5.17
514882	AK514882 Available to backorder	Transmission Drive Belt	£60.74 £50.62
521339	AK521339 Available to backorder	Arm And Case Assy	£15.50 £12.92
521748	AK473580 Available to backorder	Use Ak473580	£301.08 £250.90
526521	AK526521 Available to backorder	Push Fix 2.5mm	£0.70 £0.58
546222	AK468870 Available to backorder	Use Ak468870	£33.02 £27.52
700137	AK700137 In stock	Washer M6	£0.97 £0.81
700150	AK700150 In stock	Spacer M8	£0.84 £0.70
700303	AK703926 Available to backorder	Ak700303	£1.62 £1.35
700555	AK700555 Available to backorder	Bolt	£0.68 £0.57
700656	AK705284 Available to backorder	Use Ak705284	£3.34 £2.78
700844	AK704128 Available to backorder	Use Ak704128	£3.16 £2.63
700967	AK700967 Available to backorder	Screw	£1.18 £0.98
701011	AK701011 Available to backorder	Screw M8x50	£1.46 £1.22
701395	AK701395 Available to backorder	Rivet	£0.72 £0.60
701672	AK701672 In stock	Screw M8x45	£1.55 £1.29
702353	AK702353 Available to backorder	E-Clip	£0.48 £0.40
702724	AK702724 In stock	E-Clip	£0.37 £0.31
702756	AK702756 Available to backorder	Nla - Shb Sich Schnorr S 8 Mechanvz	£0.70 £0.58
703892	AK703892 Available to backorder	Screw	£2.96 £2.47
704263	AK705617 Available to backorder	Use Ak705617	£0.86 £0.72
704270	AK704270 Available to backorder	Screw M8x25	£0.84 £0.70
704272	AK704272 In stock	Washer 8mm	£0.98 £0.82
704533	AK704533 Available to backorder	Nut - M8 Nyloc	£0.68 £0.57
704536	AK704536 Out of stock	Nut M6	£0.97 £0.81
704537	AK704537 In stock	Lock Nut M8	£1.04 £0.87
704538	AK704538 In stock	Washer M8	£0.98 £0.82
704546	AK704546 Available to backorder	Screw M8x20	£0.72 £0.60
704744	AK704744 Available to backorder	Screw	£1.36 £1.13
46148901	AK46431601 Available to backorder	Use Ak46431601	£47.82 £39.85
46149030	AK461490 Available to backorder	Use Ak461490	£8.32 £6.93
46151001	AK46151001 Available to backorder	Nla - Rear Panel 102 E-Box+Display R9005	£69.66 £58.05
51423730	AK514237 Available to backorder	Use Ak514237	£1.62 £1.35
51477430	AK51477430 Available to backorder	Plate	£8.50 £7.08
51482230	AK51482230 Available to backorder	Gear-Shift Lever	£196.00 £163.33
51866030	AK51866030 Available to backorder	Sleeve	£1.36 £1.13
52160701	AK52160701 Available to backorder	Arm	£87.78 £73.15
52162001	AK52162001 Available to backorder	Arm	£28.34 £23.62
52162101	AK52162101 Available to backorder	Arm	£21.86 £18.22
52162201	AK52162201 Available to backorder	Arm	£28.34 £23.62
52162301	AK52162301 Available to backorder	Arm	£18.32 £15.27
52172130	AK52172130 Available to backorder	Pin	£6.98 £5.82
52185340	AK457684 Available to backorder	Use Ak47101840	£171.76 £143.13
