AL-KO T18-102 HDE Lux HVC - 118348 - Wiring Loom 1: from 10.2007

Name: AL-KO T18-102 HDE Lux HVC - 118348 - Wiring Loom 1: from 10.2007
SKU: AK118348_81_from_10_2007-group
Price: 2.15 GBP
Availability: InStock

Part No. AK118348_81_from_10_2007-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO T18-102 HDE Lux HVC - 118348 - Wiring Loom 1: from 10.2007

Description

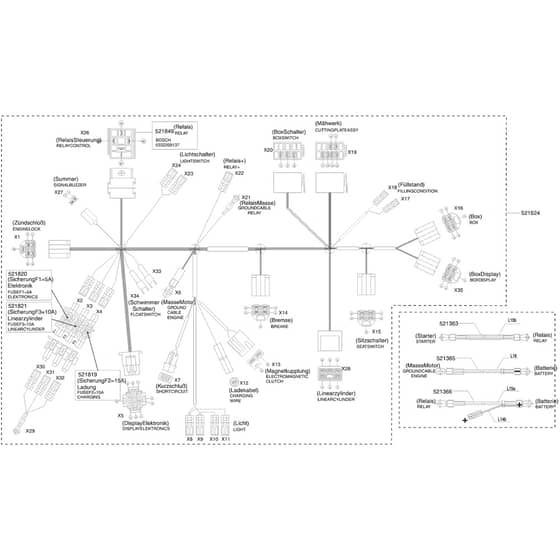

AL-KO T18-102 HDE Lux HVC - 118348 - Wiring Loom 1 - Parts Diagram

from 10.2007

	Part No.	Details
521363	AK521363 Available to backorder	Cable	£10.68 £8.90
521366	AK521366 Available to backorder	Cable	£14.64 £12.20
521624	AK521624 Available to backorder	Harness	£169.80 £141.50
521819	AK521819 Available to backorder	Fuse 15A	£3.00 £2.50
521820	AK521820 Available to backorder	Fuse 5A	£2.58 £2.15
521821	AK521821 Available to backorder	Fuse 10A	£2.58 £2.15
521849	AK521849 Available to backorder	Relay	£34.32 £28.60
