AL-KO T18-102 HDE Lux HVC - 118348 - Body Work And Seat: 2.2006 - 10.2007

Name: AL-KO T18-102 HDE Lux HVC - 118348 - Body Work And Seat: 2.2006 - 10.2007
SKU: AK118348_1_2_2006_10_2007-group
Price: 0.66 GBP
Availability: InStock

Part No. AK118348_1_2_2006_10_2007-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO T18-102 HDE Lux HVC - 118348 - Body Work And Seat: 2.2006 - 10.2007

Description

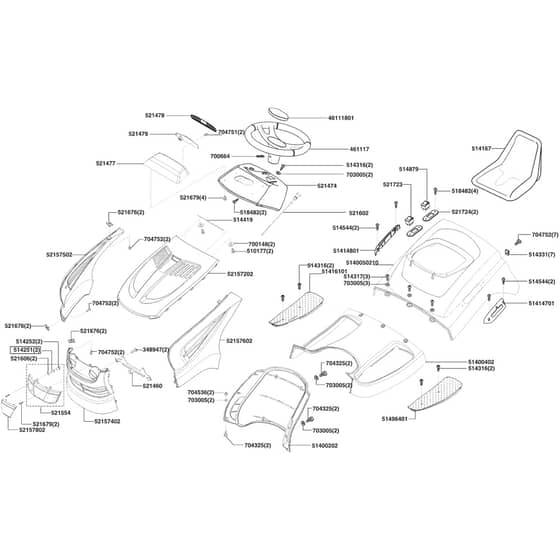

AL-KO T18-102 HDE Lux HVC - 118348 - Body Work And Seat - Parts Diagram

2.2006 - 10.2007

	Part No.	Details
348947	AK470375 Available to backorder	Screw	£0.86 £0.72
461117	AK461117 Available to backorder	Steering Wheel	£46.56 £38.80
510177	AK526611 Available to backorder	Screw 14mm	£1.30 £1.08
514167	AK514166 Available to backorder	Use Ak514166	£119.16 £99.30
514251	AK521528 Available to backorder	Use Ak521528	£12.12 £10.10
514252	AK514252 Available to backorder	Bulb Holder	£9.12 £7.60
514316	AK514316 Available to backorder	Nla - Screw	£1.42 £1.18
514317	AK514317 Available to backorder	Screw	£1.54 £1.28
514331	AK514331 Available to backorder	Nut	£1.44 £1.20
514544	AK514544 Available to backorder	Screw	£1.01 £0.84
514879	AK514879 In stock	Switch - Latching	£43.63 £36.36
518482	AK518482 Available to backorder	Screw 18mm	£1.04 £0.87
521460	AK521460E Available to backorder	Bracket	£10.92 £9.10
521477	AK521477 Available to backorder	Cover	£18.96 £15.80
521478	AK521478 Available to backorder	Strip	£36.84 £30.70
521479	AK521479 Available to backorder	Dash	£220.08 £183.40
521554	AK464161 Available to backorder	Use Ak521720	£65.64 £54.70
521602	AK521602 Available to backorder	Choke Cable	£24.72 £20.60
521606	AK521606 Available to backorder	Clip	£1.25 £1.04
521676	AK521676 Available to backorder	Nut	£1.81 £1.51
521679	AK521679 Available to backorder	Screw	£1.42 £1.18
521723	AK521723 Available to backorder	Switch - Non-Latching	£42.00 £35.00
521724	AK521724 Available to backorder	Cover	£3.48 £2.90
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700664	AK700664 Available to backorder	Pin	£1.76 £1.47
704325	AK700553 In stock	Use Ak700553	£0.79 £0.66
704536	AK704536 Out of stock	Nut M6	£1.13 £0.94
704752	AK468569 Available to backorder	Use Ak468569	£1.48 £1.23
46111801	AK46111802 In stock	Cap	£3.98 £3.32
51400202	AK51400202 Available to backorder	Lower Section	£67.80 £56.50
51400402	AK51400402 Available to backorder	Panel	£79.80 £66.50
51414701	AK521164 Available to backorder	Use Ak521164	£21.96 £18.30
51414801	AK521085 Available to backorder	Use Ak521085	£16.44 £13.70
51496401	AK51496401 Available to backorder	Foot Matt L/H	£19.08 £15.90
52157402	AK52157302 Available to backorder	Bonnet	£46.92 £39.10
52157502	AK52157502 Available to backorder	R/H Bonnet Piece	£43.80 £36.50
52157602	AK52157602 Available to backorder	Side Piece L/H	£43.80 £36.50
52157802	AK52157802 Available to backorder	Cover	£8.88 £7.40
2147483647	AK52142502 Available to backorder	Use Ak52142502	£95.64 £79.70
