AL-KO T17-103.8 HD Lawn Tractor - 119901 - Drive: 4.2020 - 9.2021

Name: AL-KO T17-103.8 HD Lawn Tractor - 119901 - Drive: 4.2020 - 9.2021
SKU: AK119901_3_4_2020_9_2021-group
Price: 0.4 GBP
Availability: InStock

Part No. AK119901_3_4_2020_9_2021-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO T17-103.8 HD Lawn Tractor - 119901 - Drive: 4.2020 - 9.2021

Description

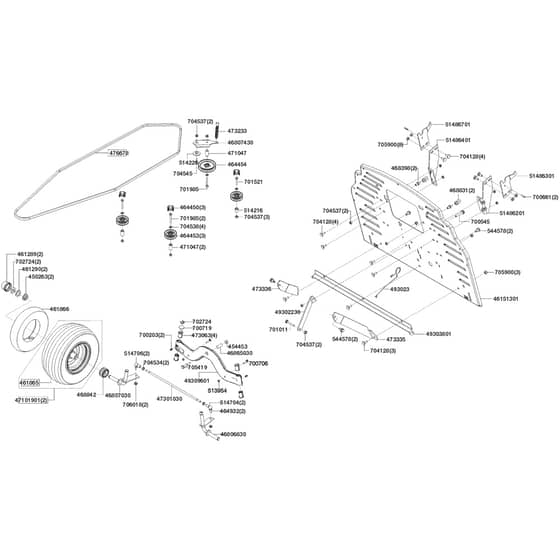

AL-KO T17-103.8 HD Lawn Tractor - 119901 - Drive - Parts Diagram

4.2020 - 9.2021

	Part No.	Details
450263	AK450263 In stock	Bush	£2.86 £2.38
454453	AK454453 Available to backorder	Nut M12	£1.01 £0.84
461289	AK461289 In stock	Hub Cap	£5.39 £4.49
461290	AK461290 Available to backorder	Washer	£2.24 £1.87
461865	AK461865 Available to backorder	Tyre 15x6-6 2Pr	£64.56 £53.80
461866	AK461866 Available to backorder	Inner Tube	£47.40 £39.50
464450	AK464450 Available to backorder	Cover	£1.81 £1.51
464453	AK464453 In stock	V-Pulley Small	£20.39 £16.99
464454	AK464454 In stock	V-Pulley Large	£28.84 £24.03
464932	AK464932 Available to backorder	Ball Joint	£8.64 £7.20
468398	AK468398 Available to backorder	Locking Bolt	£1.51 £1.26
468831	AK468831 Available to backorder	Nut	£2.21 £1.84
468842	AK468842 In stock	Bearing - 20x30x65	£7.46 £6.22
471047	AK471047 Available to backorder	Spacer	£3.36 £2.80
473063	AK473063 Available to backorder	Bearing	£2.62 £2.18
473233	AK473233 In stock	Spring	£4.85 £4.04
473335	AK473335 Available to backorder	Bracket	£8.88 £7.40
473336	AK473336 Available to backorder	Bracket	£8.88 £7.40
476678	AK514074 Available to backorder	6165-704-2120-B V-Belt Travel Drive	£48.60 £40.50
493023	AK493023 Available to backorder	Dump Valve Lever	£6.24 £5.20
513954	AK513954 Available to backorder	Nut M6	£0.84 £0.70
514216	AK514216 In stock	Case	£2.96 £2.47
514220	AK514220 Available to backorder	Spacer	£4.68 £3.90
514704	AK514704 Available to backorder	Spring	£0.84 £0.70
514706	AK514706 Available to backorder	Ball Joint	£9.12 £7.60
544578	AK544578 Available to backorder	Screw	£1.76 £1.47
700203	AK700203 Available to backorder	Grease Nipple	£1.01 £0.84
700545	AK700545 Available to backorder	Bolt M8x16	£0.82 £0.68
700661	AK700661 Available to backorder	Sleeve	£0.82 £0.68
700706	AK700706 Available to backorder	Coach Bolt	£1.42 £1.18
700719	AK700719 Available to backorder	Washer 22mm	£1.66 £1.38
701011	AK701011 Available to backorder	Screw M8x50	£1.46 £1.22
701521	AK701521 Available to backorder	Screw M8x40	£1.46 £1.22
701985	AK703550 Available to backorder	Ak701985	£1.03 £0.86
702724	AK702724 In stock	E-Clip	£0.48 £0.40
704128	AK704128 Available to backorder	Screw	£3.24 £2.70
704534	AK704534 Available to backorder	Nut M10	£0.82 £0.68
704537	AK704537 In stock	Lock Nut M8	£1.15 £0.96
704538	AK704538 In stock	Washer M8	£1.09 £0.91
704545	AK704545 In stock	Screw M8x25	£1.03 £0.86
705419	AK705419 Available to backorder	Bolt - Axle	£1.86 £1.55
705900	AK705900 Available to backorder	Nut	£0.84 £0.70
706018	AK706018 Available to backorder	Nut	£0.84 £0.70
46151301	AK46151301 Available to backorder	Back Plate	£65.04 £54.20
46806830	AK46806830 Available to backorder	Knuckle L/H	£32.28 £26.90
46807030	AK46807030 Available to backorder	Knuckle R/H	£30.84 £25.70
46807430	AK46807430 Available to backorder	Lever	£4.44 £3.70
46865030	AK468650 Available to backorder	Ak46865030	£3.14 £2.62
47101901	AK457693 Available to backorder	Ak47101901	£95.04 £79.20
47301030	AK47301030 Available to backorder	Tie Rod	£16.68 £13.90
49302230	AK49302230 Available to backorder	Bracket	£24.48 £20.40
49303801	AK49303801 Available to backorder	Bar	£34.44 £28.70
49309601	AK49309601 Available to backorder	Axle Beam	£39.48 £32.90
51486201	AK51486201 Available to backorder	Bearing Bracket Rh	£15.12 £12.60
51486301	AK51486301 Available to backorder	Bearing Bracket Rh	£13.32 £11.10
51486401	AK51486401 Available to backorder	Nla - Bearing Arm Left Bottom R9005	£14.88 £12.40
51486701	AK51486701 Available to backorder	Bearing Bracket Lh	£11.76 £9.80
