AL-KO T17-102 HD LUX HVC - 118144 - Body Work And Seat: 10.2004 - 3.2005

Name: AL-KO T17-102 HD LUX HVC - 118144 - Body Work And Seat: 10.2004 - 3.2005
SKU: AK118144_1_10_2004_3_2005-group
Price: 0.66 GBP
Availability: InStock

Part No. AK118144_1_10_2004_3_2005-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO T17-102 HD LUX HVC - 118144 - Body Work And Seat: 10.2004 - 3.2005

Description

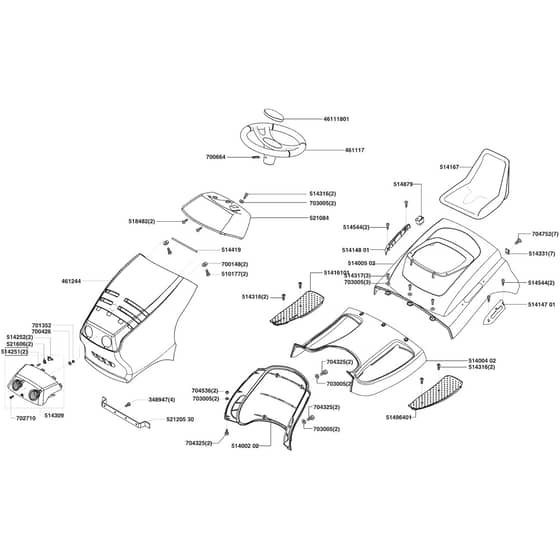

AL-KO T17-102 HD LUX HVC - 118144 - Body Work And Seat - Parts Diagram

10.2004 - 3.2005

	Part No.	Details
348947	AK470375 Available to backorder	Screw	£0.86 £0.72
461117	AK461117 Available to backorder	Steering Wheel	£46.56 £38.80
461244	AK514568 Available to backorder	Use Ak464706	£312.00 £260.00
510177	AK526611 Available to backorder	Screw 14mm	£1.30 £1.08
514167	AK514166 Available to backorder	Use Ak514166	£119.16 £99.30
514251	AK521528 Available to backorder	Use Ak521528	£12.12 £10.10
514252	AK514252 Available to backorder	Bulb Holder	£9.12 £7.60
514309	AK52152601 Available to backorder	Use Ak52152601	£62.28 £51.90
514316	AK514316 Available to backorder	Nla - Screw	£1.42 £1.18
514317	AK514317 Available to backorder	Screw	£1.54 £1.28
514331	AK514331 Available to backorder	Nut	£1.44 £1.20
514544	AK514544 Available to backorder	Screw	£1.01 £0.84
514879	AK514879 In stock	Switch - Latching	£43.63 £36.36
518482	AK518482 Available to backorder	Screw 18mm	£1.04 £0.87
521084	AK521084 Available to backorder	Nla - Dashboard	£40.44 £33.70
521606	AK521606 Available to backorder	Clip	£1.25 £1.04
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700426	AK700426 Available to backorder	Washer M4	£1.01 £0.84
700664	AK700664 Available to backorder	Pin	£1.76 £1.47
701352	AK701352 Available to backorder	Nut	£1.01 £0.84
702710	AK702710 Available to backorder	Screw	£0.84 £0.70
704325	AK700553 In stock	Use Ak700553	£0.79 £0.66
704536	AK704536 Out of stock	Nut M6	£1.13 £0.94
704752	AK468569 Available to backorder	Use Ak468569	£1.48 £1.23
46111801	AK46111802 In stock	Cap	£3.98 £3.32
51400202	AK51400202 Available to backorder	Lower Section	£67.80 £56.50
51400402	AK51400402 Available to backorder	Panel	£79.80 £66.50
51400502	AK52142502 Available to backorder	Ak51400502	£95.64 £79.70
51414701	AK521164 Available to backorder	Use Ak521164	£21.96 £18.30
51414801	AK521085 Available to backorder	Use Ak521085	£16.44 £13.70
51496401	AK51496401 Available to backorder	Foot Matt L/H	£19.08 £15.90
52120530	AK52120530 Available to backorder	Bracket > When Nil Nla	£8.76 £7.30
