AL-KO T16-95 HD V2 - 127135 - Transmission: from 5.2015

Name: AL-KO T16-95 HD V2 - 127135 - Transmission: from 5.2015
SKU: AK127135_3_from_5_2015-group
Price: 0.4 GBP
Availability: InStock

Part No. AK127135_3_from_5_2015-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO T16-95 HD V2 - 127135 - Transmission: from 5.2015

Description

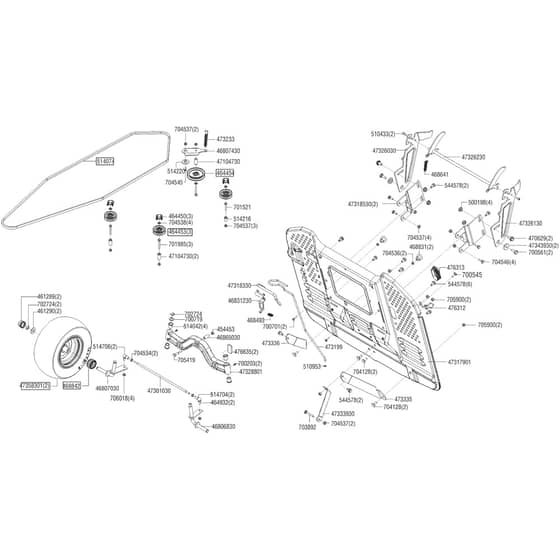

AL-KO T16-95 HD V2 - 127135 - Transmission - Parts Diagram

from 5.2015

	Part No.	Details
454453	AK454453 Available to backorder	Nut M12	£1.01 £0.84
461289	AK461289 In stock	Hub Cap	£5.39 £4.49
461290	AK461290 Available to backorder	Washer	£2.24 £1.87
464450	AK464450 Available to backorder	Cover	£1.81 £1.51
464453	AK464453 In stock	V-Pulley Small	£20.39 £16.99
464454	AK464454 In stock	V-Pulley Large	£28.84 £24.03
464932	AK464932 Available to backorder	Ball Joint	£8.64 £7.20
468493	AK468493 Available to backorder	Spring	£1.66 £1.38
468641	AK468641 In stock	Spring	£1.97 £1.64
468831	AK468831 Available to backorder	Nut	£2.21 £1.84
468842	AK468842 In stock	Bearing - 20x30x65	£7.46 £6.22
470629	AK470629 Available to backorder	Screw	£1.01 £0.84
473199	AK473199 Available to backorder	Dump Valve Rod	£5.64 £4.70
473233	AK473233 In stock	Spring	£4.85 £4.04
473335	AK473335 Available to backorder	Bracket	£8.88 £7.40
473336	AK473336 Available to backorder	Bracket	£8.88 £7.40
476312	AK476312 Available to backorder	Spring	£3.96 £3.30
476313	AK476313 Available to backorder	Bung	£3.48 £2.90
476635	AK476635 Available to backorder	Buffer	£2.58 £2.15
500198	AK500198 Available to backorder	Bush	£1.73 £1.44
510433	AK510433 Available to backorder	Allen Screw 6x12	£1.70 £1.42
510953	AK510953 Available to backorder	Fastener M6	£1.01 £0.84
514042	AK514042 Available to backorder	Bush	£9.12 £7.60
514074	AK514074 Available to backorder	Transmission Belt (A108)	£48.60 £40.50
514216	AK514216 In stock	Case	£2.96 £2.47
514220	AK514220 Available to backorder	Spacer	£4.68 £3.90
514704	AK514704 Available to backorder	Spring	£0.84 £0.70
514706	AK514706 Available to backorder	Ball Joint	£9.12 £7.60
544578	AK544578 Available to backorder	Screw	£1.76 £1.47
700203	AK700203 Available to backorder	Grease Nipple	£1.01 £0.84
700545	AK700545 Available to backorder	Bolt M8x16	£0.82 £0.68
700561	AK700561 Available to backorder	Screw M10x25	£1.42 £1.18
700701	AK700701 Available to backorder	Screw M6x25	£0.77 £0.64
700719	AK700719 Available to backorder	Washer 22mm	£1.66 £1.38
701521	AK701521 Available to backorder	Screw M8x40	£1.46 £1.22
701985	AK703550 Available to backorder	Ak701985	£1.03 £0.86
702724	AK702724 In stock	E-Clip	£0.48 £0.40
703892	AK703892 Available to backorder	Screw	£3.23 £2.69
704128	AK704128 Available to backorder	Screw	£3.24 £2.70
704534	AK704534 Available to backorder	Nut M10	£0.82 £0.68
704536	AK704536 Out of stock	Nut M6	£1.13 £0.94
704537	AK704537 In stock	Lock Nut M8	£1.15 £0.96
704538	AK704538 In stock	Washer M8	£1.09 £0.91
704545	AK704545 In stock	Screw M8x25	£1.03 £0.86
704546	AK704546 Available to backorder	Screw M8x20	£0.79 £0.66
705419	AK705419 Available to backorder	Bolt - Axle	£1.86 £1.55
705900	AK705900 Available to backorder	Nut	£0.84 £0.70
706018	AK706018 Available to backorder	Nut	£0.84 £0.70
46806830	AK46806830 Available to backorder	Knuckle L/H	£32.28 £26.90
46807030	AK46807030 Available to backorder	Knuckle R/H	£30.84 £25.70
46807430	AK46807430 Available to backorder	Lever	£4.44 £3.70
46831230	AK46831230 Available to backorder	Bracket	£3.48 £2.90
46865030	AK468650 Available to backorder	Ak46865030	£3.14 £2.62
47104730	AK471047 Available to backorder	Use Ak471047	£3.36 £2.80
47301030	AK47301030 Available to backorder	Tie Rod	£16.68 £13.90
47317901	AK47317901 Available to backorder	Rear Panel	£79.80 £66.50
47318330	AK47318330 Available to backorder	Box Switch Lever	£142.56 £118.80
47318530	AK47318530 Available to backorder	Mount Plate	£147.84 £123.20
47326030	AK47326030 Available to backorder	Mounting Arm Right	£21.72 £18.10
47326130	AK47326130 Available to backorder	Mounting Arm Left	£69.12 £57.60
47326230	AK47326230 Available to backorder	Lock Bar	£17.52 £14.60
47328801	AK476704 Available to backorder	Use Ak476704	£258.72 £215.60
47333930	AK47333930 Available to backorder	Support Bracket	£9.48 £7.90
47343930	AK47343930 Available to backorder	Bush	£5.52 £4.60
