AL-KO T16-92 HD-H Edition - 119630 - Collector

AL-KO T16-92 HD-H Edition - 119630 - Collector

Description

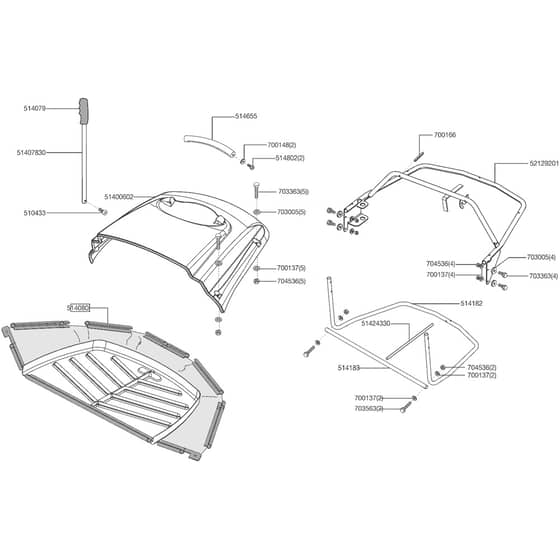

AL-KO T16-92 HD-H Edition - 119630 - Collector - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	510433		AK510433 Available to backorder	Allen Screw 6x12		£1.66 £1.38
	514079		AK514079 Available to backorder	Grip		£8.34 £6.95
	514080		AK514080 Available to backorder	Grassbox Bottom		£85.70 £71.42
	514182		AK514182 Available to backorder	Rear Frame		£29.09 £24.24
	514183		AK514183 Available to backorder	Bar		£15.14 £12.62
	514655		AK514655 Available to backorder	Handle		£8.32 £6.93
	514802		AK470375 Available to backorder	Bolt		£0.70 £0.58
	700137		AK700137 In stock	Washer M6		£0.97 £0.81
	700148		AK700148 In stock	Washer M6		£0.79 £0.66
	700166		AK700166 Available to backorder	Pin		£1.16 £0.97
	703363		AK703363 Available to backorder	Screw		£0.68 £0.57
	703563		AK703563 Available to backorder	Screw M6x45		£0.77 £0.64
	704536		AK704536 Out of stock	Nut M6		£0.97 £0.81
	51400602		AK51400602 Available to backorder	Red Box Cover		£84.70 £70.58
	51407830		AK51407830 Available to backorder	Lever		£13.82 £11.52
	51424330		AK51424330 Available to backorder	Bar		£7.30 £6.08
	52129201		AK52129201 Available to backorder	Upper Frame T16-92.7 Hd V2		£69.54 £57.95
