AL-KO T16-92 HD Edition - 119725 - Bodywork - Seat - Steering Wheel

Name: AL-KO T16-92 HD Edition - 119725 - Bodywork - Seat - Steering Wheel
SKU: AK119725_1-group
Price: 0.33 GBP
Availability: InStock

Part No. AK119725_1-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO T16-92 HD Edition - 119725 - Bodywork - Seat - Steering Wheel

Description

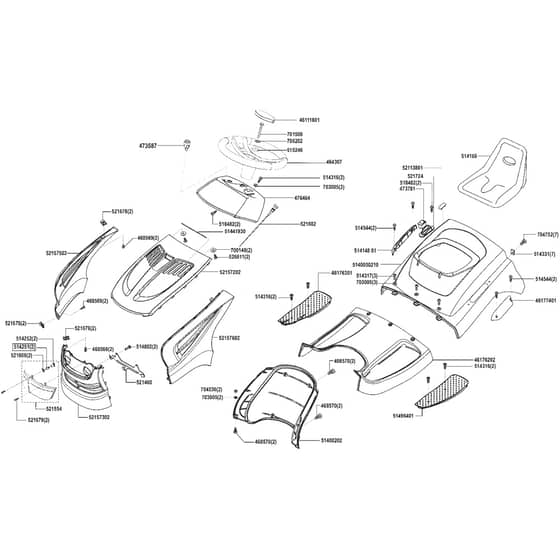

AL-KO T16-92 HD Edition - 119725 - Bodywork - Seat - Steering Wheel - Parts Diagram

	Part No.	Details
464307	AK464307 Available to backorder	Steering Wheel	£48.24 £40.20
468569	AK468569 Available to backorder	Screw Torx 4.8x16	£1.48 £1.23
468570	AK468570 Available to backorder	Screw	£0.82 £0.68
473587	AK473587 Available to backorder	Switch - Reverse	£11.76 £9.80
476464	AK476464 Available to backorder	Console	£64.92 £54.10
514166	AK514166 Available to backorder	Seat	£119.16 £99.30
514251	AK521528 Available to backorder	Use Ak521528	£12.12 £10.10
514252	AK514252 Available to backorder	Bulb Holder	£9.12 £7.60
514316	AK514316 Available to backorder	Nla - Screw	£1.42 £1.18
514317	AK514317 Available to backorder	Screw	£1.54 £1.28
514331	AK514331 Available to backorder	Nut	£1.44 £1.20
514544	AK514544 Available to backorder	Screw	£1.01 £0.84
514802	AK470375 Available to backorder	Bolt	£0.86 £0.72
515246	AK51524630 In stock	Use Ak51524630	£1.90 £1.58
518482	AK518482 Available to backorder	Screw 18mm	£1.04 £0.87
521460	AK521460E Available to backorder	Bracket	£10.92 £9.10
521554	AK464161 Available to backorder	Use Ak521720	£65.64 £54.70
521602	AK521602 Available to backorder	Choke Cable	£24.72 £20.60
521676	AK521676 Available to backorder	Nut	£1.81 £1.51
521679	AK521679 Available to backorder	Screw	£1.42 £1.18
521724	AK521724 Available to backorder	Cover	£3.48 £2.90
526611	AK526611 Available to backorder	Screw 14mm	£1.30 £1.08
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700202	AK700202 Available to backorder	Grip Fix Washer - M10	£0.84 £0.70
701508	AK9331070 In stock	Screw	£0.40 £0.33
704536	AK704536 Out of stock	Nut M6	£1.13 £0.94
46111801	AK46111802 In stock	Cap	£3.98 £3.32
46176202	AK51400402 Available to backorder	Panel	£79.80 £66.50
46176301	AK46176301 Available to backorder	Foot Matt R/H	£22.08 £18.40
46177401	AK46177401 Available to backorder	Cover	£32.88 £27.40
51400202	AK51400202 Available to backorder	Lower Section	£67.80 £56.50
51414801	AK521085 Available to backorder	Use Ak521085	£16.44 £13.70
51496401	AK51496401 Available to backorder	Foot Matt L/H	£19.08 £15.90
52113801	AK52113801 Available to backorder	Cap	£2.03 £1.69
52157302	AK52157302 Available to backorder	Bonnet Nose	£46.92 £39.10
52157502	AK52157502 Available to backorder	R/H Bonnet Piece	£43.80 £36.50
52157602	AK52157602 Available to backorder	Side Piece L/H	£43.80 £36.50
2147483647	AK52142502 Available to backorder	Use Ak52142502	£95.64 £79.70
