AL-KO T16-92.7 HD Edition - 127411 - Rear Axle - Rear Panel

Name: AL-KO T16-92.7 HD Edition - 127411 - Rear Axle - Rear Panel
SKU: AK127411_3-group
Price: 0.4 GBP
Availability: InStock

Part No. AK127411_3-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO T16-92.7 HD Edition - 127411 - Rear Axle - Rear Panel

Description

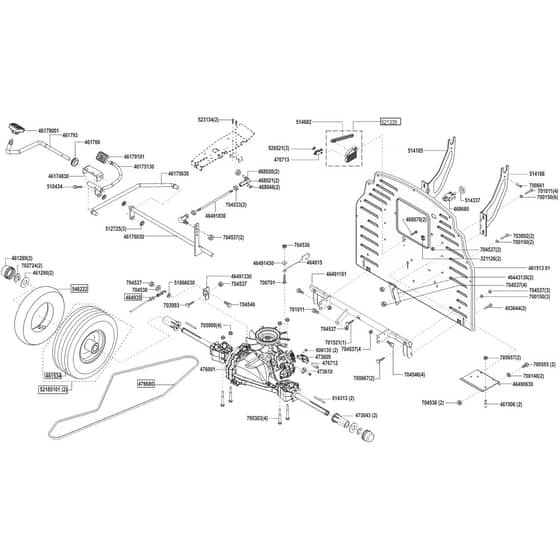

AL-KO T16-92.7 HD Edition - 127411 - Rear Axle - Rear Panel - Parts Diagram

	Part No.	Details
321126	AK321126 Available to backorder	Nut	£1.01 £0.84
453644	AK453644 Available to backorder	Screw	£1.15 £0.96
461289	AK461289 In stock	Hub Cap	£5.39 £4.49
461290	AK461290 Available to backorder	Washer	£2.24 £1.87
461506	AK461506 Available to backorder	Bolt	£2.03 £1.69
461534	AK461534 Available to backorder	Tyre	£73.68 £61.40
461793	AK46174430 Available to backorder	Pedal Arm	£15.36 £12.80
464935	AK464935 Available to backorder	Brake Cable	£34.44 £28.70
468020	AK468020 Available to backorder	Ball Joint Ball	£3.14 £2.62
468021	AK468021 Available to backorder	Ball Joint Socket	£5.28 £4.40
468048	AK468048 Available to backorder	Angle Joint Clip	£0.84 £0.70
468680	AK493565 In stock	Switch - Black	£18.50 £15.42
468878	AK468878 Available to backorder	Screw	£0.86 £0.72
473043	AK473043 Available to backorder	Bush	£4.92 £4.10
473609	AK473609 Available to backorder	Case	£1.66 £1.38
473610	AK473610 Available to backorder	Clamp	£1.01 £0.84
476001	AK476001 Available to backorder	Transmission T3-Ahbf-2x3C-1Tx4 (4"Riem+18"R)	£502.68 £418.90
476680	AK476680 Available to backorder	Belt (13 x 2805 Ld - A110)	£50.04 £41.70

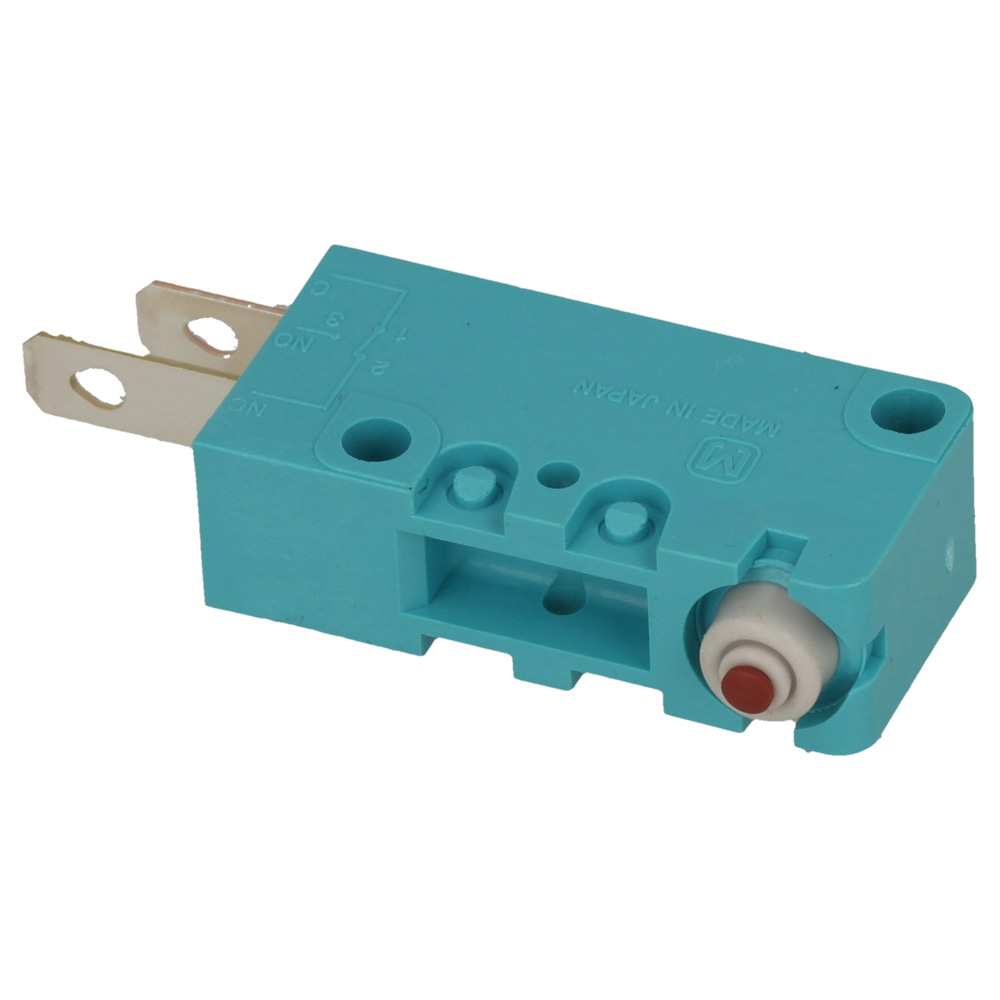

476712	AK476712 Available to backorder	Switch. Alt - Ak514329 (Use Lower 2 Terminals)	£11.40 £9.50

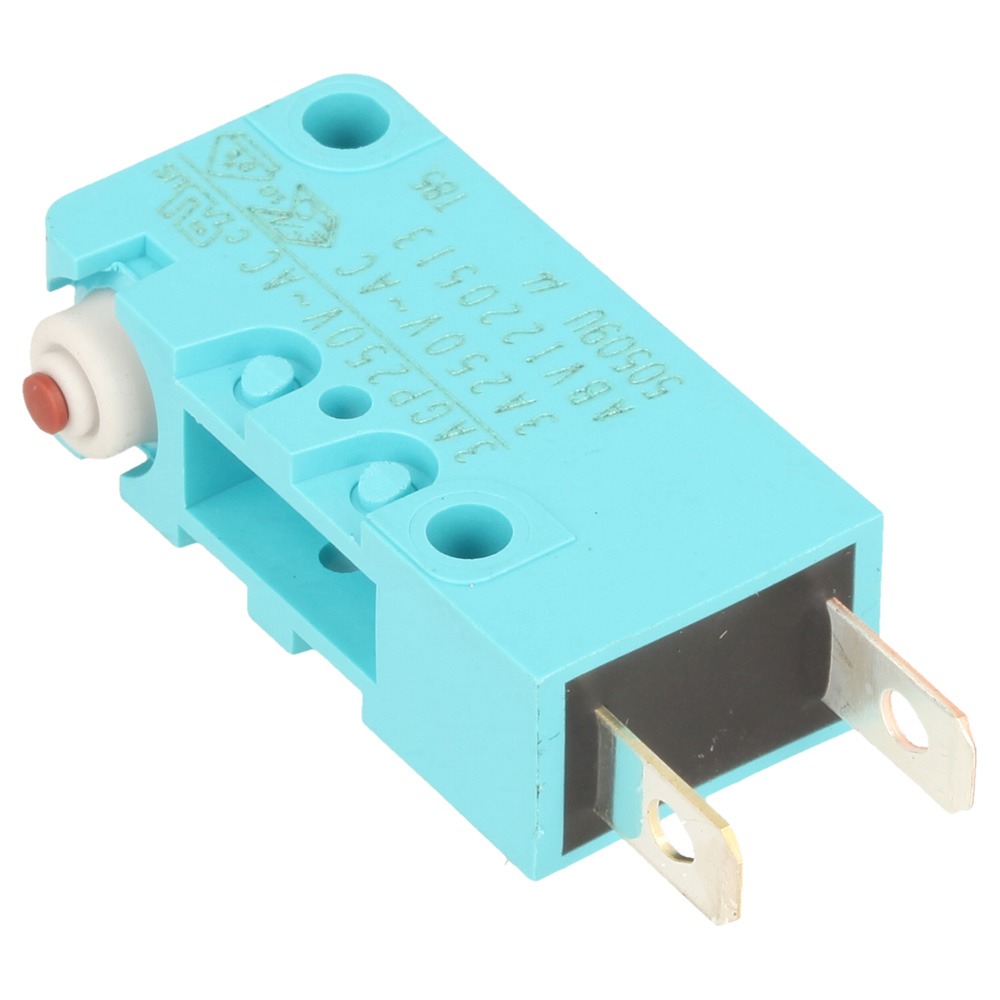

476713	AK476713 Available to backorder	Microswitch	£13.31 £11.09
510434	AK525779 Available to backorder	Use Ak525779	£1.56 £1.30
512725	AK512725 Available to backorder	Push Nut 12mm	£1.72 £1.43
514185	AK514185 Available to backorder	Bracket Rh	£26.04 £21.70
514186	AK514186 Available to backorder	Bracket Lh	£26.04 £21.70
514313	AK514313 In stock	Key	£1.54 £1.28
514337	AK514337 Available to backorder	Cap	£5.04 £4.20
514682	AK493511 Available to backorder	Use Ak493511	£6.60 £5.50
521339	AK521339 In stock	Arm And Case Assy	£16.28 £13.57
523134	AK523134 Available to backorder	Screw M6x12 St	£0.82 £0.68
526521	AK526521 Available to backorder	Push Fix 2.5mm	£0.84 £0.70
546222	AK468870 Available to backorder	Use Ak468870	£34.20 £28.50
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700150	AK700150 In stock	Spacer M8	£1.08 £0.90
700303	AK703926 Available to backorder	Ak700303	£1.76 £1.47
700555	AK700555 Available to backorder	Bolt	£0.82 £0.68
700661	AK700661 Available to backorder	Sleeve	£0.82 £0.68
700701	AK700701 Available to backorder	Screw M6x25	£0.77 £0.64
700967	AK700967 Available to backorder	Screw	£1.42 £1.18
701011	AK701011 Available to backorder	Screw M8x50	£1.46 £1.22
701521	AK701521 Available to backorder	Screw M8x40	£1.46 £1.22
702724	AK702724 In stock	E-Clip	£0.48 £0.40
703892	AK703892 Available to backorder	Screw	£3.23 £2.69
703993	AK703993 Available to backorder	Screw	£1.01 £0.84
704533	AK704533 Available to backorder	Nut - M8 Nyloc	£0.82 £0.68
704536	AK704536 Out of stock	Nut M6	£1.13 £0.94
704537	AK704537 In stock	Lock Nut M8	£1.15 £0.96
704538	AK704538 In stock	Washer M8	£1.09 £0.91
704546	AK704546 Available to backorder	Screw M8x20	£0.79 £0.66
705657	AK705657 In stock	Flange Nyloc Nut M6	£1.37 £1.14
705900	AK705900 Available to backorder	Nut	£0.84 £0.70
46151301	AK46151301 Available to backorder	Back Plate	£65.04 £54.20
46174830	AK46174830 Available to backorder	Mount	£7.80 £6.50
46175130	AK46175130 Available to backorder	Pedal Arm	£39.48 £32.90
46175630	AK46175630 Available to backorder	Connecting Rod	£31.92 £26.60
46179001	AK46179001 Available to backorder	Foot Pad	£5.04 £4.20
46179101	AK46179101 Available to backorder	Foot Pad	£12.60 £10.50
46443130	AK46443130 Available to backorder	Mount	£24.60 £20.50
46490630	AK46490630 Available to backorder	Plate (Grass Bag)	£20.04 £16.70
46491101	AK46491101 Available to backorder	Mounting Bar	£73.20 £61.00
46491330	AK46491330 Available to backorder	Bracket	£10.20 £8.50
46491430	AK46491430 Available to backorder	Shoulder Washer	£4.44 £3.70
46491830	AK46491830 Available to backorder	Forward/Reverse Rod	£20.88 £17.40
51866030	AK51866030 Available to backorder	Sleeve	£1.63 £1.36
52185101	AK457687 Available to backorder	Rear Wheel Assy	£117.36 £97.80
