AL-KO T16-102 HVC - 118122 - Grass Box: 2.2001 - 9.2002

Name: AL-KO T16-102 HVC - 118122 - Grass Box: 2.2001 - 9.2002
SKU: AK118122_7_2_2001_9_2002-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO T16-102 HVC - 118122 - Grass Box: 2.2001 - 9.2002

Description

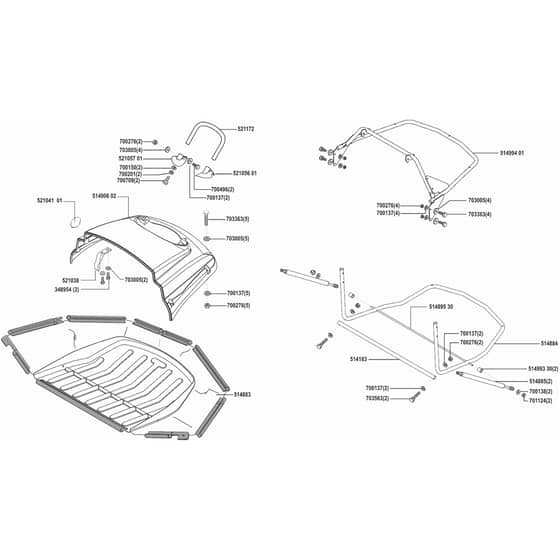

AL-KO T16-102 HVC - 118122 - Grass Box - Parts Diagram

2.2001 - 9.2002

Be the first to review this product

0 product questions

	Part No.	Details
514183	AK514183 Available to backorder	Bar	£15.14 £12.62
514883	AK476627 Available to backorder	Use Ak476627	£107.60 £89.67
514884	AK514884 Available to backorder	Lower Box Pipe	£42.32 £35.27
514885	AK514885 In stock	Gas Strut Assy	£54.08 £45.07
521172	AK521172 In stock	Supporting Handle T102 - Nut Ak514320	£38.08 £31.73
700137	AK700137 In stock	Washer M6	£0.97 £0.81
700138	AK704538 In stock	Washer M8	£0.98 £0.82
700150	AK700150 Available to backorder	Spacer M8	£0.91 £0.76
700201	AK700201 Available to backorder	Grip Washer M8	£0.77 £0.64
700276	AK704536 Out of stock	Use Ak704536	£0.97 £0.81
700496	AK700496 In stock	Screw M6x60	£0.78 £0.65
700709	AK700709 Available to backorder	Screw	£1.18 £0.98
701124	AK701124 Available to backorder	Dome Nut M8	£0.72 £0.60
703005	AK700148 In stock	Ak703005	£0.79 £0.66
703363	AK703363 Available to backorder	Screw	£0.68 £0.57
703563	AK703563 Available to backorder	Screw M6x45	£0.77 £0.64
51400602	AK51400602 Available to backorder	Red Box Cover	£84.70 £70.58
51489530	AK51489530 Available to backorder	Box Strut T102	£9.42 £7.85
51499330	AK51499330 Available to backorder	Sleeve	£6.78 £5.65
51499401	AK49308301 Available to backorder	Upper Frame T102	£94.22 £78.52
52104101	AK52104101 Available to backorder	Plug	£2.34 £1.95
52105601	AK52105601 In stock	Holder	£13.09 £10.91
52105701	AK52105701 In stock	Cap Kit	£13.09 £10.91
