AL-KO T16-102 HVC - 118122 - Engine: 2.2001 - 9.2002

Name: AL-KO T16-102 HVC - 118122 - Engine: 2.2001 - 9.2002
SKU: AK118122_4_2_2001_9_2002-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO T16-102 HVC - 118122 - Engine: 2.2001 - 9.2002

Description

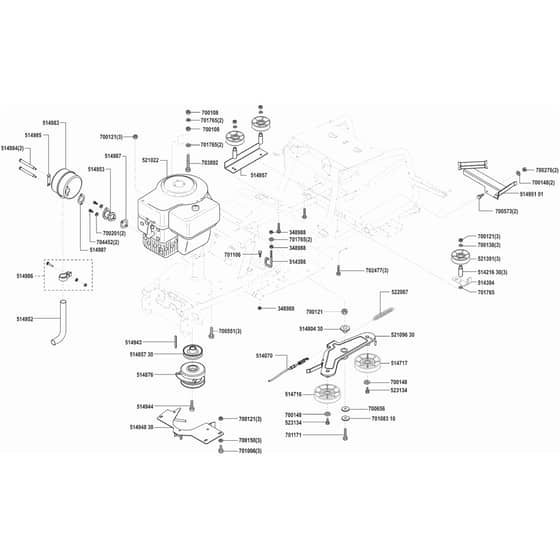

AL-KO T16-102 HVC - 118122 - Engine - Parts Diagram

2.2001 - 9.2002

Be the first to review this product

0 product questions

	Part No.	Details
348988	AK692795 Available to backorder	Nut	£1.18 £0.98
514070	AK514070 Available to backorder	Tractor Clutch Cable	£30.43 £25.36
514394	AK514394 Available to backorder	Guide	£9.50 £7.92
514398	AK514398 Available to backorder	Guide	£3.56 £2.97
514716	AK464454 Available to backorder	Use Ak464454	£30.43 £25.36
514717	AK464455 Available to backorder	Use Ak464455	£36.54 £30.45
514876	AK464115 Available to backorder	Use Ak464115	£230.28 £191.90
514943	AK514943 Available to backorder	Key	£1.12 £0.93
514944	AK514944 Available to backorder	Bolt 75mm	£8.84 £7.37
514952	AK51495230 Available to backorder	Use Ak51495230	£18.66 £15.55
514953	AK51495310 Available to backorder	Use Ak51495310	£52.06 £43.38
514984	AK514984 Available to backorder	Exhaust Bolt (B&S 691416)	£7.26 £6.05
514985	AK514985 Available to backorder	Retainer	£8.48 £7.07
514986	AK514986 Available to backorder	Clip	£16.94 £14.12
514987	AK514987 Available to backorder	Sealing Flange Exhaust B&S	£4.78 £3.98
521391	AK464453 Available to backorder	Use Ak464453	£21.47 £17.89
522087	AK522087 In stock	Spring	£8.69 £7.24
523134	AK523134 Available to backorder	Screw M6x12 St	£0.68 £0.57
700108	AK704533 Available to backorder	Nut - M8	£0.68 £0.57
700121	AK704537 In stock	Use Ak704537	£1.04 £0.87
700138	AK704538 In stock	Washer M8	£0.98 £0.82
700148	AK700148 In stock	Washer M6	£0.79 £0.66
700150	AK700150 In stock	Spacer M8	£0.84 £0.70
700201	AK700201 Available to backorder	Grip Washer M8	£0.77 £0.64
700276	AK704536 Out of stock	Use Ak704536	£0.97 £0.81
700551	AK703891 Available to backorder	Use Ak500071	£3.90 £3.25
700573	AK706086 Available to backorder	Use Ak706086	£0.70 £0.58
700656	AK705284 Available to backorder	Use Ak705284	£3.34 £2.78
701006	AK704546 Available to backorder	Use Ak704546	£0.72 £0.60
701106	AK701106 Available to backorder	Ring	£18.50 £15.42
701171	AK701171 Available to backorder	Screw M8x30	£0.84 £0.70
702477	AK702477 Available to backorder	Screw	£1.62 £1.35
703892	AK703892 Available to backorder	Screw	£2.96 £2.47
51421630	AK514216 Available to backorder	Use Ak514216	£2.72 £2.27
51480430	AK51480430 Available to backorder	Spacer	£2.88 £2.40
51485730	AK51485730 Available to backorder	Pulley	£54.30 £45.25
51495101	AK51495101 Available to backorder	Guide	£31.06 £25.88
52109630	AK52109630 Available to backorder	Pulley Arm	£49.52 £41.27
70108310	AK701083 Available to backorder	Use Ak701083	£0.68 £0.57
