AL-KO T16-102 HDH - 118755 - Engine

Name: AL-KO T16-102 HDH - 118755 - Engine
SKU: AK118755_4-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

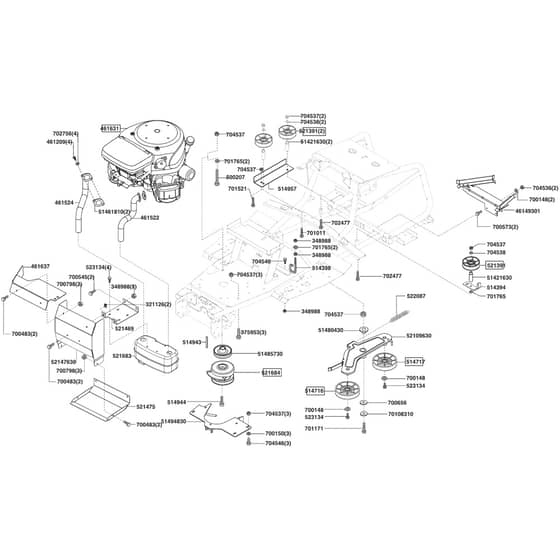

AL-KO T16-102 HDH - 118755 - Engine - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
321126	AK321126 Available to backorder	Nut	£0.91 £0.76
348988	AK692795 Available to backorder	Nut	£1.18 £0.98
375953	AK375953 Available to backorder	Screw M8x40	£2.32 £1.93
461209	AK461209 Available to backorder	Screw	£1.44 £1.20
461522	AK461522 Available to backorder	Elbow	£63.62 £53.02
461524	AK461524 Available to backorder	Elbow	£61.54 £51.28
461637	AK461637 Available to backorder	Plate	£21.38 £17.82
514394	AK514394 Available to backorder	Guide	£9.50 £7.92
514398	AK514398 Available to backorder	Guide	£3.56 £2.97
514716	AK464454 Available to backorder	Use Ak464454	£30.43 £25.36
514717	AK464455 Available to backorder	Use Ak464455	£36.54 £30.45
514943	AK514943 Available to backorder	Key	£1.12 £0.93
514944	AK514944 Available to backorder	Bolt 75mm	£8.84 £7.37
521391	AK464453 Available to backorder	Use Ak464453	£21.47 £17.89
521469	AK521469 Available to backorder	Plate	£8.64 £7.20
521475	AK521475 Available to backorder	Plate	£11.68 £9.73
521683	AK521683 Available to backorder	Muffler	£118.34 £98.62
521684	AK521684 Available to backorder	Clutch	£235.08 £195.90
522087	AK522087 In stock	Spring	£8.69 £7.24
523134	AK523134 Available to backorder	Screw M6x12 St	£0.68 £0.57
700148	AK700148 In stock	Washer M6	£0.79 £0.66
700150	AK700150 In stock	Spacer M8	£0.84 £0.70
700483	AK700483 Available to backorder	Screw M6x12 Din933	£0.68 £0.57
700545	AK700545 Available to backorder	Bolt M8x16	£0.68 £0.57
700573	AK706086 Available to backorder	Use Ak706086	£0.70 £0.58
700656	AK705284 Available to backorder	Use Ak705284	£3.34 £2.78
700798	AK700798 Available to backorder	Nut	£0.70 £0.58
701011	AK701011 Available to backorder	Screw M8x50	£1.46 £1.22
701171	AK701171 Available to backorder	Screw M8x30	£0.84 £0.70
701521	AK701521 Available to backorder	Screw M8x40	£1.24 £1.03
701765	AK700201 Available to backorder	Ak701765	£0.77 £0.64
702477	AK702477 Available to backorder	Screw	£1.62 £1.35
702756	AK702756 Available to backorder	Nla - Shb Sich Schnorr S 8 Mechanvz	£0.70 £0.58
704536	AK704536 Out of stock	Nut M6	£0.97 £0.81
704537	AK704537 In stock	Lock Nut M8	£1.04 £0.87
704538	AK704538 In stock	Washer M8	£0.98 £0.82
704546	AK704546 Available to backorder	Screw M8x20	£0.72 £0.60
51421630	AK514216 Available to backorder	Use Ak514216	£2.72 £2.27
51461810	AK51461810 Available to backorder	Gasket	£2.36 £1.97
51480430	AK51480430 Available to backorder	Spacer	£2.88 £2.40
51485730	AK51485730 Available to backorder	Pulley	£54.30 £45.25
52109630	AK52109630 Available to backorder	Pulley Arm	£49.52 £41.27
52147630	AK521476 Available to backorder	Use Ak521476	£62.92 £52.43
70108310	AK701083 Available to backorder	Use Ak701083	£0.68 £0.57
