AL-KO T16-102 HD Edition - 119726 - Transmission

Name: AL-KO T16-102 HD Edition - 119726 - Transmission
SKU: AK119726_3-group
Price: 0.31 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO T16-102 HD Edition - 119726 - Transmission

Description

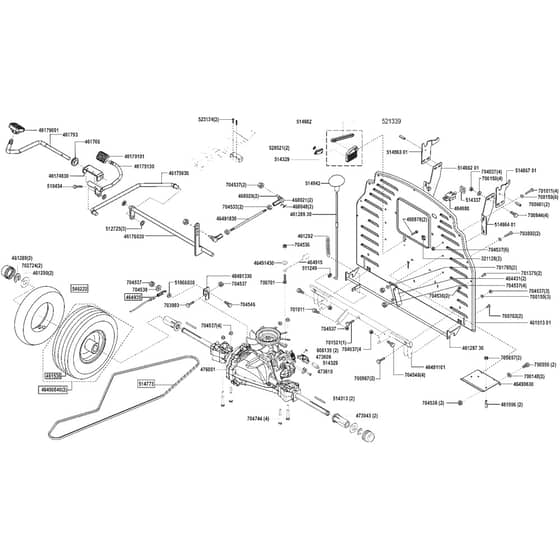

AL-KO T16-102 HD Edition - 119726 - Transmission - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
321126	AK321126 Available to backorder	Nut	£0.91 £0.76
461289	AK461289 In stock	Hub Cap	£4.60 £3.83
461290	AK461290 Available to backorder	Washer	£2.27 £1.89
461292	AK461292 Available to backorder	Spring	£4.62 £3.85
461506	AK461506 Available to backorder	Bolt	£1.86 £1.55
461536	AK471020 Available to backorder	Use Ak471020	£88.58 £73.82
461793	AK46174430 Available to backorder	Pedal Arm	£27.50 £22.92
464431	AK46443130 Available to backorder	Use Ak46443130	£23.76 £19.80
464935	AK464935 Available to backorder	Brake Cable	£33.26 £27.72
468020	AK468020 Available to backorder	Ball Joint Ball	£2.88 £2.40
468021	AK468021 Available to backorder	Ball Joint Socket	£5.06 £4.22
468048	AK468048 Available to backorder	Angle Joint Clip	£0.70 £0.58
468878	AK468878 Available to backorder	Screw	£0.78 £0.65
473043	AK473043 Available to backorder	Bush	£4.80 £4.00
473609	AK473609 Available to backorder	Case	£1.52 £1.27
473610	AK473610 Available to backorder	Clamp	£0.84 £0.70
476001	AK476001 Available to backorder	Transmission T3-Ahbf-2x3C-1Tx4 (4"Riem+18"R)	£547.20 £456.00
476680	AK476680 Available to backorder	Belt (13 x 2805 Ld - A110)	£48.38 £40.32
510434	AK525779 Available to backorder	Use Ak525779	£1.18 £0.98
511249	AK511249 Available to backorder	Grip Fix Washer - 7mm	£1.31 £1.09
512725	AK512725 Available to backorder	Push Nut 12mm	£1.57 £1.31
514313	AK514313 In stock	Key	£1.49 £1.24
514329	AK514329 In stock	Switch	£17.27 £14.39
514337	AK514337 Available to backorder	Cap	£4.86 £4.05
514682	AK493511 Available to backorder	Use Ak493511	£6.20 £5.17
514942	AK514942 Available to backorder	Button	£1.86 £1.55
521339	AK521339 Available to backorder	Arm And Case Assy	£16.91 £14.09
523134	AK523134 Available to backorder	Screw M6x12 St	£0.68 £0.57
526521	AK526521 Available to backorder	Push Fix 2.5mm	£0.70 £0.58
546222	AK468870 Available to backorder	Use Ak468870	£33.02 £27.52
700148	AK700148 In stock	Washer M6	£0.79 £0.66
700150	AK700150 Available to backorder	Spacer M8	£0.91 £0.76
700555	AK700555 Available to backorder	Bolt	£0.68 £0.57
700661	AK700661 Available to backorder	Sleeve	£0.68 £0.57
700701	AK700701 Available to backorder	Screw M6x25	£0.70 £0.58
700702	AK700702 In stock	Screw M6x25	£0.47 £0.39
700967	AK700967 Available to backorder	Screw	£1.18 £0.98
701011	AK701011 Available to backorder	Screw M8x50	£1.33 £1.11
701375	AK701375 Available to backorder	Screw	£0.70 £0.58
701521	AK701521 Available to backorder	Screw M8x40	£1.36 £1.13
701765	AK700201 Available to backorder	Ak701765	£0.77 £0.64
702724	AK702724 In stock	E-Clip	£0.37 £0.31
703892	AK703892 Available to backorder	Screw	£2.96 £2.47
703993	AK703993 Available to backorder	Screw	£0.84 £0.70
704533	AK704533 Available to backorder	Nut - M8 Nyloc	£0.68 £0.57
704536	AK704536 Out of stock	Nut M6	£0.97 £0.81
704537	AK704537 In stock	Lock Nut M8	£1.04 £0.87
704538	AK704538 In stock	Washer M8	£0.98 £0.82
704546	AK704546 Available to backorder	Screw M8x20	£0.72 £0.60
704744	AK704744 Available to backorder	Screw	£1.36 £1.13
705657	AK705657 In stock	Flange Nyloc Nut M6	£1.22 £1.02
46128730	AK46128730 Available to backorder	Alko Rear Box Latch	£20.83 £17.36
46128830	AK46128830 Available to backorder	Lever	£13.96 £11.63
46151301	AK46151301 Available to backorder	Back Plate	£69.41 £57.84
46174830	AK46174830 Available to backorder	Mount	£7.76 £6.47
46175130	AK46175130 Available to backorder	Pedal Arm	£41.20 £34.33
46175630	AK46175630 Available to backorder	Connecting Rod	£30.88 £25.73
46179001	AK46179001 Available to backorder	Foot Pad	£4.90 £4.08
46179101	AK46179101 Available to backorder	Foot Pad	£12.14 £10.12
46456840	AK46456840 Available to backorder	Wheel Rear 18x8.5-8 Wide	£175.74 £146.45
46490630	AK46490630 Available to backorder	Plate (Grass Bag)	£19.32 £16.10
46491101	AK46491101 Available to backorder	Mounting Bar	£70.74 £58.95
46491330	AK46491330 Available to backorder	Bracket	£9.82 £8.18
46491430	AK46491430 Available to backorder	Shoulder Washer	£4.26 £3.55
46491830	AK46491830 Available to backorder	Forward/Reverse Rod	£20.24 £16.87
51486201	AK51486201 Available to backorder	Bearing Bracket Rh	£14.60 £12.17
51486301	AK51486301 Available to backorder	Bearing Bracket Rh	£12.84 £10.70
51486401	AK51486401 Available to backorder	Nla - Bearing Arm Left Bottom R9005	£14.40 £12.00
51486701	AK51486701 Available to backorder	Bearing Bracket Lh	£11.36 £9.47
51866030	AK51866030 Available to backorder	Sleeve	£1.36 £1.13
