AL-KO T16-102 HD Edition - 119726 - Collector

Name: AL-KO T16-102 HD Edition - 119726 - Collector
SKU: AK119726_9-group
Price: 0.66 GBP
Availability: InStock

Part No. AK119726_9-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO T16-102 HD Edition - 119726 - Collector

Description

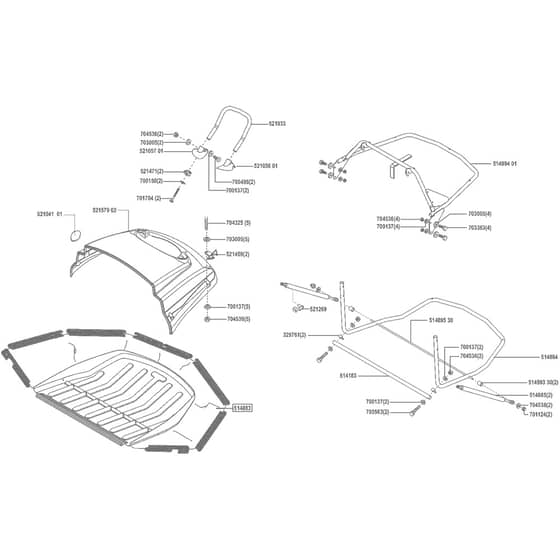

AL-KO T16-102 HD Edition - 119726 - Collector - Parts Diagram

	Part No.	Details
329761	AK329761 Available to backorder	Curved Washer	£1.76 £1.47
514183	AK514183 In stock	Bar	£14.16 £11.80
514883	AK476627 Available to backorder	Use Ak476627	£101.52 £84.60
514884	AK514884 In stock	Lower Box Pipe	£39.24 £32.70
514885	AK514885 In stock	Gas Strut Assy	£53.94 £44.95
521033	AK521172 In stock	Use Ak521172	Was £38.08 £31.73 Special Price £25.13 £20.94
521269	AK468886 In stock	Use Ak468886	£3.24 £2.70
521459	AK521459 In stock	Clip	£1.70 £1.42
521471	AK521471 Available to backorder	Spacer	£1.70 £1.42
700137	AK700137 Available to backorder	Washer M6	£1.08 £0.90
700150	AK700150 In stock	Spacer M8	£1.08 £0.90
700496	AK700496 In stock	Screw M6x60	£0.86 £0.72
701124	AK701124 Available to backorder	Dome Nut M8	£0.80 £0.67
701704	AK701704 In stock	Screw M8x60	£1.58 £1.32
703005	AK700148 In stock	Ak703005	£0.86 £0.72
703363	AK703363 Available to backorder	Screw	£0.82 £0.68
703563	AK703563 Available to backorder	Screw M6x45	£0.84 £0.70
704325	AK700553 In stock	Use Ak700553	£0.79 £0.66
704536	AK704536 Out of stock	Nut M6	£1.13 £0.94
704538	AK704538 In stock	Washer M8	£1.09 £0.91
51489530	AK51489530 In stock	Box Strut T102	£9.00 £7.50
51499330	AK51499330 Available to backorder	Sleeve	£6.96 £5.80
51499401	AK49308301 Available to backorder	Upper Frame T102	£97.44 £81.20
52104101	AK52104101 Available to backorder	Plug	£2.34 £1.95
52105601	AK52105601 Available to backorder	Holder	Was £12.36 £10.30 Special Price £8.64 £7.20
52105701	AK52105701 Available to backorder	Cap Kit	Was £12.36 £10.30 Special Price £8.64 £7.20
52157902	AK52157902 In stock	Box Cover	£95.52 £79.60
