AL-KO T16-102.7 HD Edition - 127412 - Engine & Engine Mount

Name: AL-KO T16-102.7 HD Edition - 127412 - Engine & Engine Mount
SKU: AK127412_4-group
Price: 0.66 GBP
Availability: InStock

Part No. AK127412_4-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO T16-102.7 HD Edition - 127412 - Engine & Engine Mount

Description

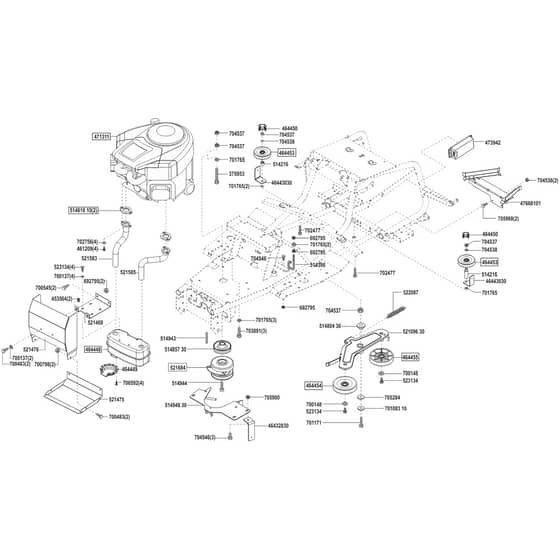

AL-KO T16-102.7 HD Edition - 127412 - Engine & Engine Mount - Parts Diagram

	Part No.	Details
375953	AK375953 In stock	Screw M8x40	£2.36 £1.97
453564	AK453564 Available to backorder	Caged Nut	£2.32 £1.93
461209	AK461209 Available to backorder	Screw	£1.73 £1.44
464448	AK46444810 Available to backorder	Use Ak46444810	£49.68 £41.40
464449	AK464449 Available to backorder	Deflector	£3.24 £2.70
464450	AK464450 Available to backorder	Cover	£1.81 £1.51
464453	AK464453 In stock	V-Pulley Small	£20.39 £16.99
464454	AK464454 In stock	V-Pulley Large	£28.84 £24.03
464455	AK464455 Available to backorder	Flat Pulley	£34.68 £28.90
473942	AK473942 In stock	Pcb	£80.42 £67.02
514216	AK514216 In stock	Case	£2.96 £2.47
514398	AK514398 Available to backorder	Guide	£3.72 £3.10
514943	AK514943 Available to backorder	Key	£1.34 £1.12
514944	AK514944 Available to backorder	Bolt 75mm	£9.36 £7.80
521469	AK521469 Available to backorder	Plate	£8.88 £7.40
521475	AK521475 Available to backorder	Plate	£12.12 £10.10
521476	AK521476 Available to backorder	Plate	£65.04 £54.20
521583	AK521583 Available to backorder	Exhaust Elbow	£29.52 £24.60
521585	AK521585 Available to backorder	Exhaust Elbow	£29.52 £24.60
521684	AK521684 Available to backorder	Clutch	£276.60 £230.50
522087	AK522087 In stock	Spring	£8.21 £6.84
523134	AK523134 Available to backorder	Screw M6x12 St	£0.82 £0.68
692795	AK692795 Available to backorder	Nut	£1.42 £1.18
700137	AK700137 Available to backorder	Washer M6	£1.08 £0.90
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700483	AK700483 Available to backorder	Screw M6x12 Din933	£0.82 £0.68
700545	AK700545 Available to backorder	Bolt M8x16	£0.82 £0.68
700798	AK700798 Available to backorder	Nut	£0.84 £0.70
701171	AK701171 Available to backorder	Screw M8x30	£1.01 £0.84
701765	AK700201 Available to backorder	Ak701765	£0.88 £0.73
702477	AK702477 Available to backorder	Screw	£1.76 £1.47
702756	AK702756 Available to backorder	Nla - Shb Sich Schnorr S 8 Mechanvz	£0.84 £0.70
703891	AK703891 Available to backorder	Screw	£4.08 £3.40
704536	AK704536 Out of stock	Nut M6	£1.13 £0.94
704537	AK704537 In stock	Lock Nut M8	£1.15 £0.96
704538	AK704538 In stock	Washer M8	£1.09 £0.91
704546	AK704546 Available to backorder	Screw M8x20	£0.79 £0.66
705284	AK705284 In stock	Spring Washer M10	£3.88 £3.23
705900	AK705900 Available to backorder	Nut	£0.84 £0.70
705968	AK705968 Available to backorder	Screw M6x15	£0.83 £0.69
706592	AK706592 In stock	Screw	£0.96 £0.80
46432830	AK46432830 Available to backorder	Mount	£8.40 £7.00
46443030	AK46443030 Available to backorder	Mount	£11.04 £9.20
47668101	AK47668101 Available to backorder	Belt Guide	£29.88 £24.90
51461810	AK51461810 Available to backorder	Gasket	£2.58 £2.15
51480430	AK51480430 Available to backorder	Spacer	£3.14 £2.62
51485730	AK51485730 Available to backorder	Pulley	£56.16 £46.80
52109630	AK52109630 Available to backorder	Pulley Arm	£51.24 £42.70
70108310	AK701083 Available to backorder	Use Ak701083	£0.82 £0.68
