AL-KO T15-93.9 HD-A BLACK EDITION - 119932 - Collector: 2.2020 - 4.2020

Name: AL-KO T15-93.9 HD-A BLACK EDITION - 119932 - Collector: 2.2020 - 4.2020
SKU: AK119932_8_2_2020_4_2020-group
Price: 0.68 GBP
Availability: InStock

Part No. AK119932_8_2_2020_4_2020-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO T15-93.9 HD-A BLACK EDITION - 119932 - Collector: 2.2020 - 4.2020

Description

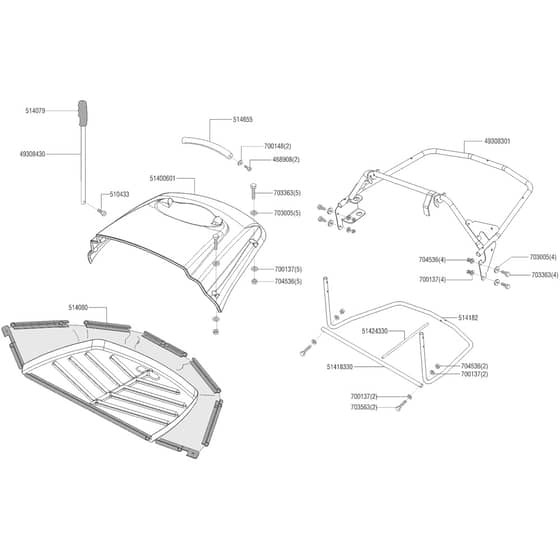

AL-KO T15-93.9 HD-A BLACK EDITION - 119932 - Collector - Parts Diagram

2.2020 - 4.2020

	Part No.	Details
468908	AK468908 Available to backorder	Nla - Bolt	£0.82 £0.68
510433	AK510433 Available to backorder	Allen Screw 6x12	£1.70 £1.42
514079	AK514079 Available to backorder	Grip	£8.64 £7.20
514080	AK514080 Available to backorder	Grassbox Bottom	£88.68 £73.90
514182	AK514182 Available to backorder	Rear Frame	£27.60 £23.00
514655	AK514655 Available to backorder	Handle	£8.64 £7.20
700137	AK700137 In stock	Washer M6	£1.08 £0.90
700148	AK700148 In stock	Washer M6	£0.86 £0.72
703363	AK703363 Available to backorder	Screw	£0.82 £0.68
703563	AK703563 Available to backorder	Screw M6x45	£0.84 £0.70
704536	AK704536 Out of stock	Nut M6	£1.13 £0.94
49308301	AK49308301 Available to backorder	Box Frame	£97.44 £81.20
49308430	AK49308430 In stock	Box Lever	£12.24 £10.20
51400601	AK51400601 Available to backorder	Black Cover	£97.20 £81.00
51418330	AK514183 In stock	Ak51418330	£14.16 £11.80
51424330	AK51424330 Available to backorder	Bar	£7.56 £6.30
