AL-KO T15-92 HDE Powerline - 118864 - Transmission: from 11.2007

Description

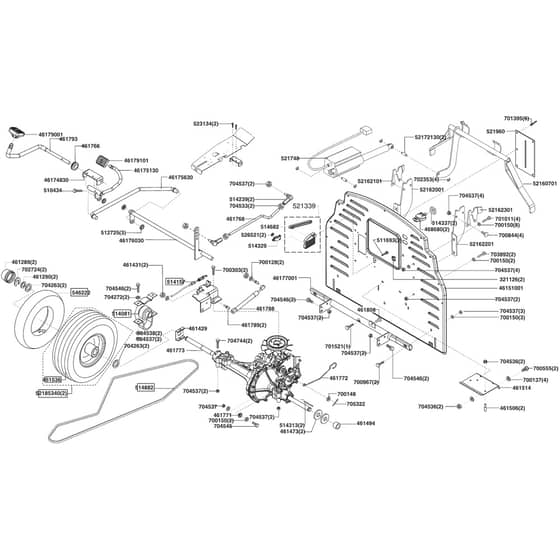

AL-KO T15-92 HDE Powerline - 118864 - Transmission - Parts Diagram

from 11.2007

	Part No.	Details
321126	AK321126 Available to backorder	Nut	£1.01 £0.84
461289	AK461289 In stock	Hub Cap	£5.39 £4.49
461290	AK461290 Available to backorder	Washer	£2.24 £1.87
461429	AK461429 Available to backorder	Plate	£6.12 £5.10
461431	AK461431 Available to backorder	Nut	£0.84 £0.70
461473	AK461473 Available to backorder	Disc	£10.20 £8.50
461494	AK46149430 Available to backorder	Use Ak46149430	£5.04 £4.20
461506	AK461506 Available to backorder	Bolt	£2.03 £1.69
461536	AK471020 Available to backorder	Use Ak471020	£91.68 £76.40
461772	AK461772 Available to backorder	Rod	£6.72 £5.60
461788	AK461788 Available to backorder	Damper	£92.88 £77.40
461789	AK461789 Available to backorder	Joint	£4.68 £3.90
461793	AK46174430 Available to backorder	Pedal Arm	£15.36 £12.80
461808	AK461808 Available to backorder	Screw	£4.80 £4.00
468680	AK493565 In stock	Switch - Black	£18.50 £15.42
510434	AK525779 Available to backorder	Use Ak525779	£1.56 £1.30
511693	AK468878 Available to backorder	Use Ak468878	£0.86 £0.72
512725	AK512725 Available to backorder	Push Nut 12mm	£1.72 £1.43
514081	AK514081 Available to backorder	Bearing Assembly	£33.00 £27.50
514157	AK514157 Available to backorder	Trans Brake Cable	£33.96 £28.30
514239	AK514239 In stock	Ball Joint	£9.46 £7.88
514313	AK514313 In stock	Key	£1.54 £1.28
514329	AK514329 In stock	Switch	£16.66 £13.88
514337	AK514337 Available to backorder	Cap	£5.04 £4.20
514682	AK493511 Available to backorder	Use Ak493511	£6.60 £5.50
514882	AK514882 Available to backorder	Transmission Drive Belt	£56.64 £47.20
521339	AK521339 In stock	Arm And Case Assy	£16.28 £13.57
521748	AK473580 Available to backorder	Use Ak473580	£312.00 £260.00
523134	AK523134 Available to backorder	Screw M6x12 St	£0.82 £0.68
526521	AK526521 Available to backorder	Push Fix 2.5mm	£0.84 £0.70
546222	AK468870 Available to backorder	Use Ak468870	£34.20 £28.50
700128	AK700128 Available to backorder	Washer	£1.01 £0.84
700137	AK700137 In stock	Washer M6	£1.08 £0.90
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700150	AK700150 In stock	Spacer M8	£1.08 £0.90
700303	AK703926 Available to backorder	Ak700303	£1.76 £1.47
700555	AK700555 Available to backorder	Bolt	£0.82 £0.68
700844	AK704128 Available to backorder	Use Ak704128	£3.24 £2.70
700967	AK700967 Available to backorder	Screw	£1.42 £1.18
701011	AK701011 Available to backorder	Screw M8x50	£1.46 £1.22
701395	AK701395 Available to backorder	Rivet	£0.86 £0.72
701521	AK701521 Available to backorder	Screw M8x40	£1.46 £1.22
702353	AK702353 Available to backorder	E-Clip	£0.48 £0.40
702724	AK702724 In stock	E-Clip	£0.48 £0.40
703892	AK703892 Available to backorder	Screw	£3.23 £2.69
704263	AK705617 Available to backorder	Use Ak705617	£1.07 £0.89
704272	AK704272 In stock	Washer 8mm	£1.09 £0.91
704533	AK704533 Available to backorder	Nut - M8 Nyloc	£0.82 £0.68
704536	AK704536 Out of stock	Nut M6	£1.13 £0.94
704537	AK704537 In stock	Lock Nut M8	£1.15 £0.96
704538	AK704538 In stock	Washer M8	£1.09 £0.91
704545	AK704545 In stock	Screw M8x25	£1.03 £0.86
704546	AK704546 Available to backorder	Screw M8x20	£0.79 £0.66
704744	AK704744 Available to backorder	Screw	£1.63 £1.36
705322	AK705322 Available to backorder	Cotter Pin	£0.82 £0.68
46151001	AK46151001 Available to backorder	Nla - Rear Panel 102 E-Box+Display R9005	£72.12 £60.10
46174830	AK46174830 Available to backorder	Mount	£7.80 £6.50
46175130	AK46175130 Available to backorder	Pedal Arm	£39.48 £32.90
46175630	AK46175630 Available to backorder	Connecting Rod	£31.92 £26.60
46177001	AK46431701 Available to backorder	Use Ak46431701	£52.32 £43.60
46179001	AK46179001 Available to backorder	Foot Pad	£5.04 £4.20
46179101	AK46179101 Available to backorder	Foot Pad	£12.60 £10.50
52160701	AK52160701 Available to backorder	Arm	£90.84 £75.70
52162001	AK52162001 Available to backorder	Arm	£29.28 £24.40
52162101	AK52162101 Available to backorder	Arm	£22.56 £18.80
52162201	AK52162201 Available to backorder	Arm	£29.28 £24.40
52162301	AK52162301 Available to backorder	Arm	£18.96 £15.80
52172130	AK52172130 Available to backorder	Pin	£7.20 £6.00
52185340	AK457684 Available to backorder	Use Ak47101840	£164.88 £137.40
