AL-KO T15-92 HD-A Edition - 119629 - Transmission

Name: AL-KO T15-92 HD-A Edition - 119629 - Transmission
SKU: AK119629_3-group
Price: 0.4 GBP
Availability: InStock

Part No. AK119629_3-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO T15-92 HD-A Edition - 119629 - Transmission

Description

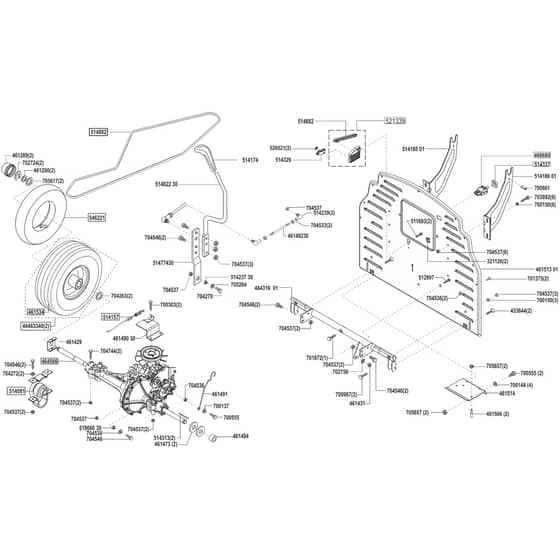

AL-KO T15-92 HD-A Edition - 119629 - Transmission - Parts Diagram

	Part No.	Details
321126	AK321126 Available to backorder	Nut	£1.01 £0.84
453644	AK453644 Available to backorder	Screw	£1.15 £0.96
461289	AK461289 In stock	Hub Cap	£5.39 £4.49
461290	AK461290 Available to backorder	Washer	£2.24 £1.87
461429	AK461429 Available to backorder	Plate	£6.12 £5.10
461431	AK461431 Available to backorder	Nut	£0.84 £0.70
461473	AK461473 Available to backorder	Disc	£10.20 £8.50
461491	AK461491 Available to backorder	Rod	£8.04 £6.70
461494	AK46149430 Available to backorder	Use Ak46149430	£5.04 £4.20
461506	AK461506 Available to backorder	Bolt	£2.03 £1.69
461534	AK461534 Available to backorder	Tyre	£73.68 £61.40
468680	AK493565 In stock	Switch - Black	£18.50 £15.42
511693	AK468878 Available to backorder	Use Ak468878	£0.86 £0.72
512997	AK512997 Available to backorder	Screw	£2.11 £1.76
514081	AK514081 Available to backorder	Bearing Assembly	£33.00 £27.50
514157	AK514157 Available to backorder	Trans Brake Cable	£33.96 £28.30
514174	AK514174 Available to backorder	Knob	£9.12 £7.60
514239	AK514239 In stock	Ball Joint	£9.46 £7.88
514313	AK514313 In stock	Key	£1.54 £1.28
514329	AK514329 In stock	Switch	£16.66 £13.88
514337	AK514337 Available to backorder	Cap	£5.04 £4.20
514682	AK493511 Available to backorder	Use Ak493511	£6.60 £5.50
514882	AK514882 Available to backorder	Transmission Drive Belt	£56.64 £47.20
521339	AK521339 In stock	Arm And Case Assy	£16.28 £13.57
526521	AK526521 Available to backorder	Push Fix 2.5mm	£0.84 £0.70
546221	AK468870 Available to backorder	Use Ak546222	£34.20 £28.50
700137	AK700137 Available to backorder	Washer M6	£1.08 £0.90
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700150	AK700150 In stock	Spacer M8	£1.08 £0.90
700303	AK703926 Available to backorder	Ak700303	£1.76 £1.47
700555	AK700555 Available to backorder	Bolt	£0.82 £0.68
700661	AK700661 Available to backorder	Sleeve	£0.82 £0.68
700967	AK700967 Available to backorder	Screw	£1.42 £1.18
701375	AK701375 Available to backorder	Screw	£0.84 £0.70
701672	AK701672 In stock	Screw M8x45	£1.72 £1.43
702724	AK702724 In stock	E-Clip	£0.48 £0.40
702756	AK702756 Available to backorder	Nla - Shb Sich Schnorr S 8 Mechanvz	£0.84 £0.70
703892	AK703892 Available to backorder	Screw	£3.23 £2.69
704263	AK705617 Available to backorder	Use Ak705617	£1.07 £0.89
704270	AK704270 Available to backorder	Screw M8x25	£1.01 £0.84
704272	AK704272 In stock	Washer 8mm	£1.09 £0.91
704533	AK704533 Available to backorder	Nut - M8 Nyloc	£0.82 £0.68
704536	AK704536 Out of stock	Nut M6	£1.13 £0.94
704537	AK704537 In stock	Lock Nut M8	£1.15 £0.96
704538	AK704538 In stock	Washer M8	£1.09 £0.91
704546	AK704546 Available to backorder	Screw M8x20	£0.79 £0.66
704744	AK704744 Available to backorder	Screw	£1.63 £1.36
705284	AK705284 In stock	Spring Washer M10	£3.88 £3.23
705657	AK705657 In stock	Flange Nyloc Nut M6	£1.37 £1.14
46149230	AK46149230 Available to backorder	Rod	£6.96 £5.80
46483340	AK46483340 Available to backorder	Nla - Rear Wheel	£138.48 £115.40
51477430	AK51477430 Available to backorder	Plate	£8.76 £7.30
