AL-KO T15-92 HD-A Edition - 119629 - Engine

Description

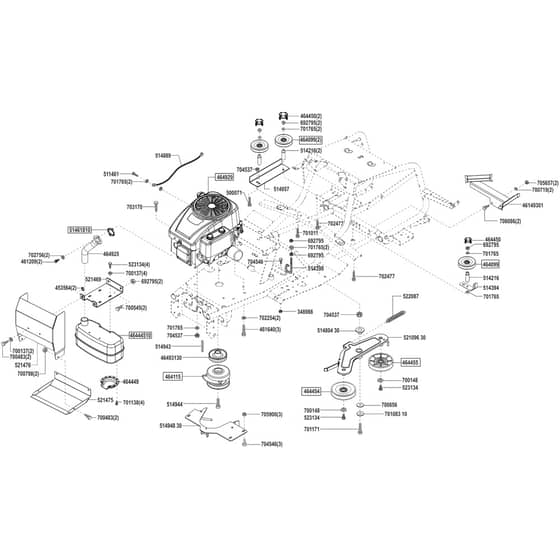

AL-KO T15-92 HD-A Edition - 119629 - Engine - Parts Diagram

	Part No.	Details
348988	AK692795 Available to backorder	Nut	£1.42 £1.18
453564	AK453564 Available to backorder	Caged Nut	£2.32 £1.93
461209	AK461209 Available to backorder	Screw	£1.73 £1.44
461640	AK461640 Available to backorder	Screw	£7.56 £6.30
464099	AK464454 In stock	Use Ak464454	£28.84 £24.03
464115	AK464115 Available to backorder	Clutch	£230.28 £191.90
464449	AK464449 Available to backorder	Deflector	£3.24 £2.70
464450	AK464450 Available to backorder	Cover	£1.81 £1.51
464455	AK464455 Available to backorder	Flat Pulley	£34.68 £28.90
464925	AK464925 Available to backorder	Head Pipe	£28.56 £23.80

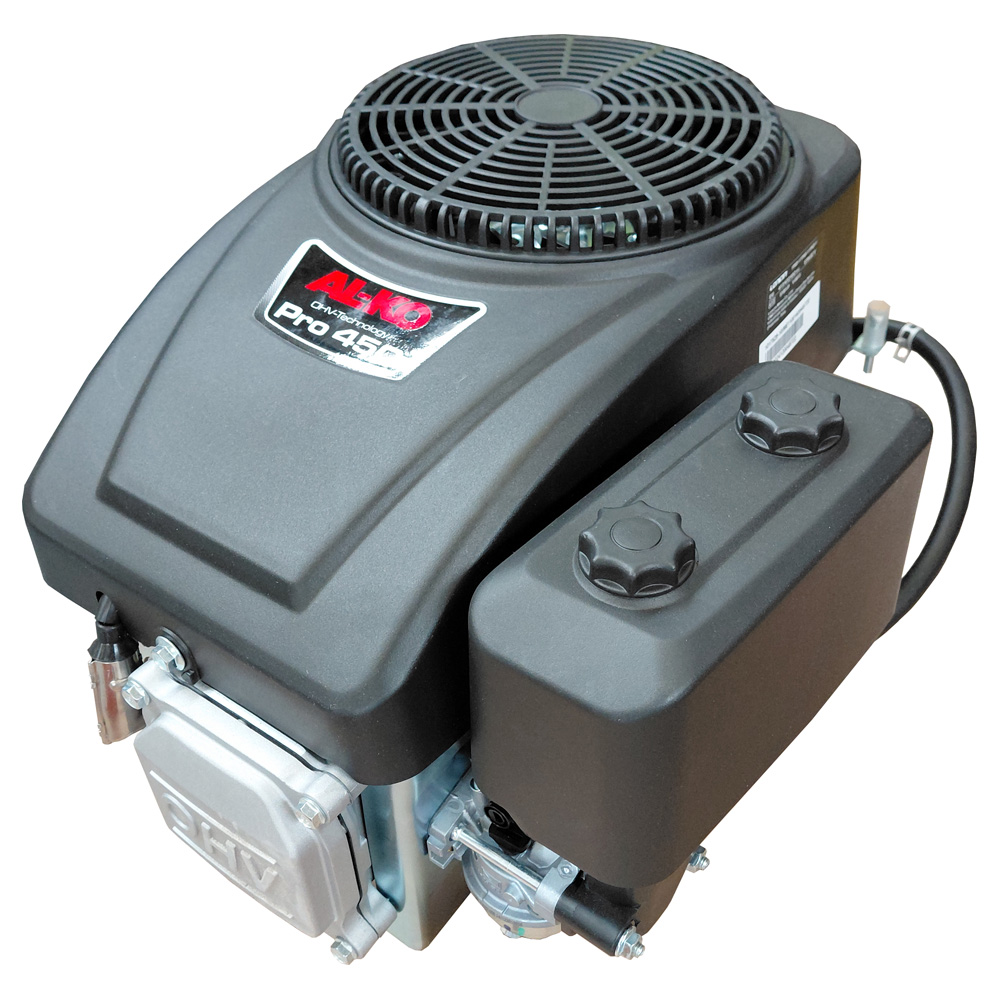

464929	AK464929 Available to backorder	Pro 450 Petrol Engine - Lc1P92F-1	£586.78 £488.98
500071	AK456208 Available to backorder	Ak500071	£1.22 £1.02
511461	AK511461 Available to backorder	Screw	£1.32 £1.10
514216	AK514216 In stock	Case	£2.96 £2.47
514394	AK514394 Available to backorder	Guide	£9.84 £8.20
514398	AK514398 Available to backorder	Guide	£3.72 £3.10
514889	AK514889 Available to backorder	Earth Cable	£9.72 £8.10
514943	AK514943 Available to backorder	Key	£1.34 £1.12
514944	AK514944 Available to backorder	Bolt 75mm	£9.36 £7.80
521469	AK521469 Available to backorder	Plate	£8.88 £7.40
521475	AK521475 Available to backorder	Plate	£12.12 £10.10
521476	AK521476 Available to backorder	Plate	£65.04 £54.20
522087	AK522087 In stock	Spring	£8.21 £6.84
523134	AK523134 Available to backorder	Screw M6x12 St	£0.82 £0.68
700137	AK700137 Available to backorder	Washer M6	£1.08 £0.90
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700483	AK700483 Available to backorder	Screw M6x12 Din933	£0.82 £0.68
700545	AK700545 Available to backorder	Bolt M8x16	£0.82 £0.68
700656	AK705284 In stock	Use Ak705284	£3.88 £3.23
700719	AK700719 Available to backorder	Washer 22mm	£1.66 £1.38
700798	AK700798 Available to backorder	Nut	£0.84 £0.70
701011	AK701011 Available to backorder	Screw M8x50	£1.46 £1.22
701138	AK706592 In stock	Use Ak706592	£0.96 £0.80
701171	AK701171 Available to backorder	Screw M8x30	£1.01 £0.84
701765	AK700201 Available to backorder	Ak701765	£0.88 £0.73
702254	AK702254 Available to backorder	Washer M10 (Alt Use Ak700202)	£1.04 £0.87
702477	AK702477 Available to backorder	Screw	£1.76 £1.47
702756	AK702756 Available to backorder	Nla - Shb Sich Schnorr S 8 Mechanvz	£0.84 £0.70
703170	AK703550 Available to backorder	Use Ak701985	£1.03 £0.86
704537	AK704537 In stock	Lock Nut M8	£1.15 £0.96
704546	AK704546 Available to backorder	Screw M8x20	£0.79 £0.66
705657	AK705657 In stock	Flange Nyloc Nut M6	£1.37 £1.14
705900	AK705900 Available to backorder	Nut	£0.84 £0.70
706086	AK706086 Available to backorder	Screw M6x20	£0.84 £0.70
46444510	AK46444510 Available to backorder	Muffler	£49.68 £41.40
46493130	AK46493130 Available to backorder	Drive Segment	£46.08 £38.40
51461810	AK51461810 Available to backorder	Gasket	£2.58 £2.15
